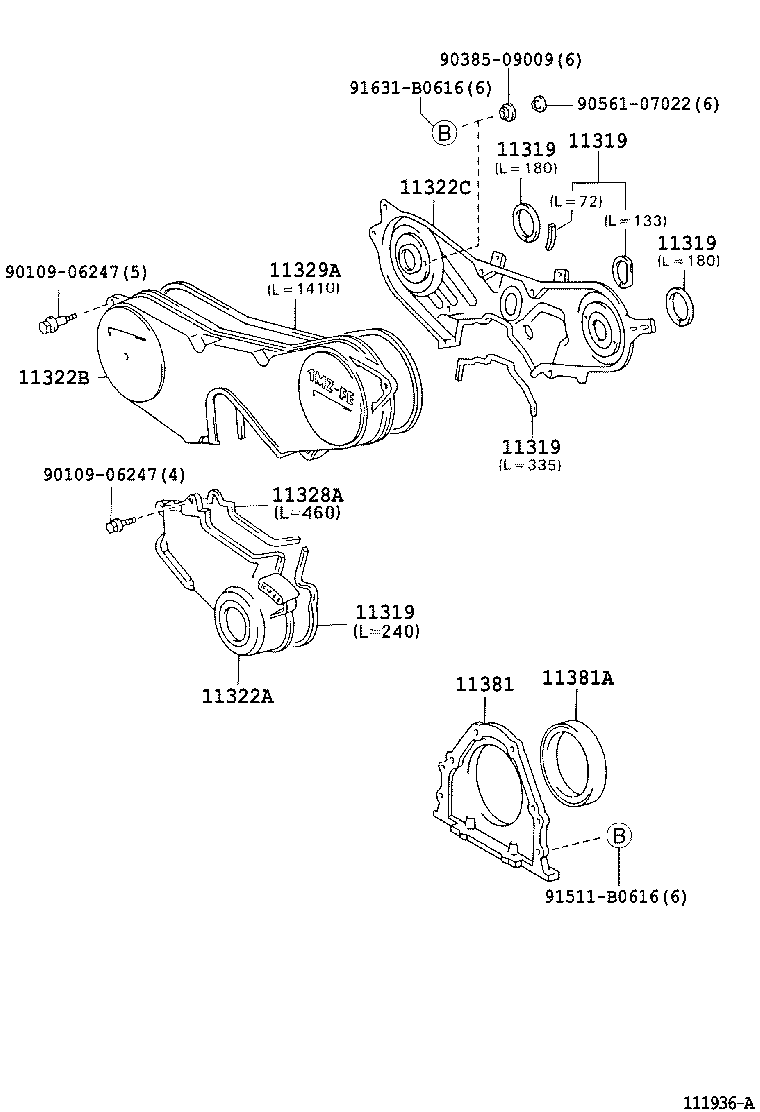

Exploded illustration 111936A 91511B0616 — not listed in this catalogue 9010906247 — not listed in this catalogue 9010906247 — not listed in this catalogue 11329A — GASKET, TIMING BELT OR CHAIN COVER, NO.2 (2 parts) 11322C — COVER, TIMING BELT, NO.3 (2 parts) 11319 — GASKET, TIMING BELT COVER, NO.3 (2 parts) 11319 — GASKET, TIMING BELT COVER, NO.3 (2 parts) 11319 — GASKET, TIMING BELT COVER, NO.3 (2 parts) 11319 — GASKET, TIMING BELT COVER, NO.3 (2 parts) 9038509009 — not listed in this catalogue 11322B — COVER, TIMING BELT, NO.2 (2 parts) 9056107022 — not listed in this catalogue 11319 — GASKET, TIMING BELT COVER, NO.3 (2 parts) 11322A — COVER, TIMING BELT, NO.1 (2 parts) 11328A — GASKET, TIMING BELT COVER, NO.1 (2 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (2 parts) 11381A — SEAL, ENGINE REAR OIL (3 parts) 91631B0616 — not listed in this catalogue
111936A · 12 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
11319 — Gasket, Timing Belt Cover, NO.3
11319-20010 Gasket, Timing Belt Cover, NO.3
2001-07 → 2004-06 ended
1MZFE MCV30 ¥360
11319-20010 Gasket, Timing Belt Cover, NO.3
2004-06 → —
1MZFE MCV30 ¥360
11322A — Cover, Timing Belt, NO.1
11321-20030 Cover, Timing Belt, NO.1
2001-07 → 2004-06 ended
1MZFE MCV30 ¥2,950
11321-20030 Cover, Timing Belt, NO.1
2004-06 → —
1MZFE MCV30 ¥2,950
11322B — Cover, Timing Belt, NO.2
11303-20040 Cover, Timing Belt, NO.2
2001-07 → 2004-06 ended
1MZFE MCV30 ¥6,100
11303-20040 Cover, Timing Belt, NO.2
2004-06 → —
1MZFE MCV30 ¥6,100
11322C — Cover, Timing Belt, NO.3
11323-20030 Cover, Timing Belt, NO.3
2001-07 → 2004-06 ended
1MZFE MCV30 ¥7,600
11323-20030 Cover, Timing Belt, NO.3
2004-06 → —
1MZFE MCV30 ¥7,600
11328A — Gasket, Timing Belt Cover, NO.1
11328-20020 Gasket, Timing Belt Cover, NO.1
2001-07 → 2004-06 ended
1MZFE MCV30 ¥360
11328-20020 Gasket, Timing Belt Cover, NO.1
2004-06 → —
1MZFE MCV30 ¥360
11329A — Gasket, Timing Belt OR Chain Cover, NO.2
11329-20010 Gasket, Timing Belt OR Chain Cover, NO.2
2001-07 → 2004-06 ended
1MZFE MCV30 ¥360
11329-20010 Gasket, Timing Belt OR Chain Cover, NO.2
2004-06 → —
1MZFE MCV30 ¥360
11381 — Retainer, Engine Rear Oil Seal
11381-20010 Retainer, Engine Rear Oil Seal
2001-07 → 2004-06 ended
1MZFE MCV30 ¥5,800
11381-20010 Retainer, Engine Rear Oil Seal
2004-06 → —
1MZFE MCV30 ¥5,800
11381A — Seal, Engine Rear Oil
90311-92008 Seal, Engine Rear Oil
2001-07 → 2004-06 ended
1MZFE MCV30 ¥1,510
90080-31053 note Seal, Engine Rear Oil
2004-06 → —
1MZFE MCV30 ¥1,920
90311-92008 note Seal, Engine Rear Oil
2004-06 → —
1MZFE MCV30 ¥1,510
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
