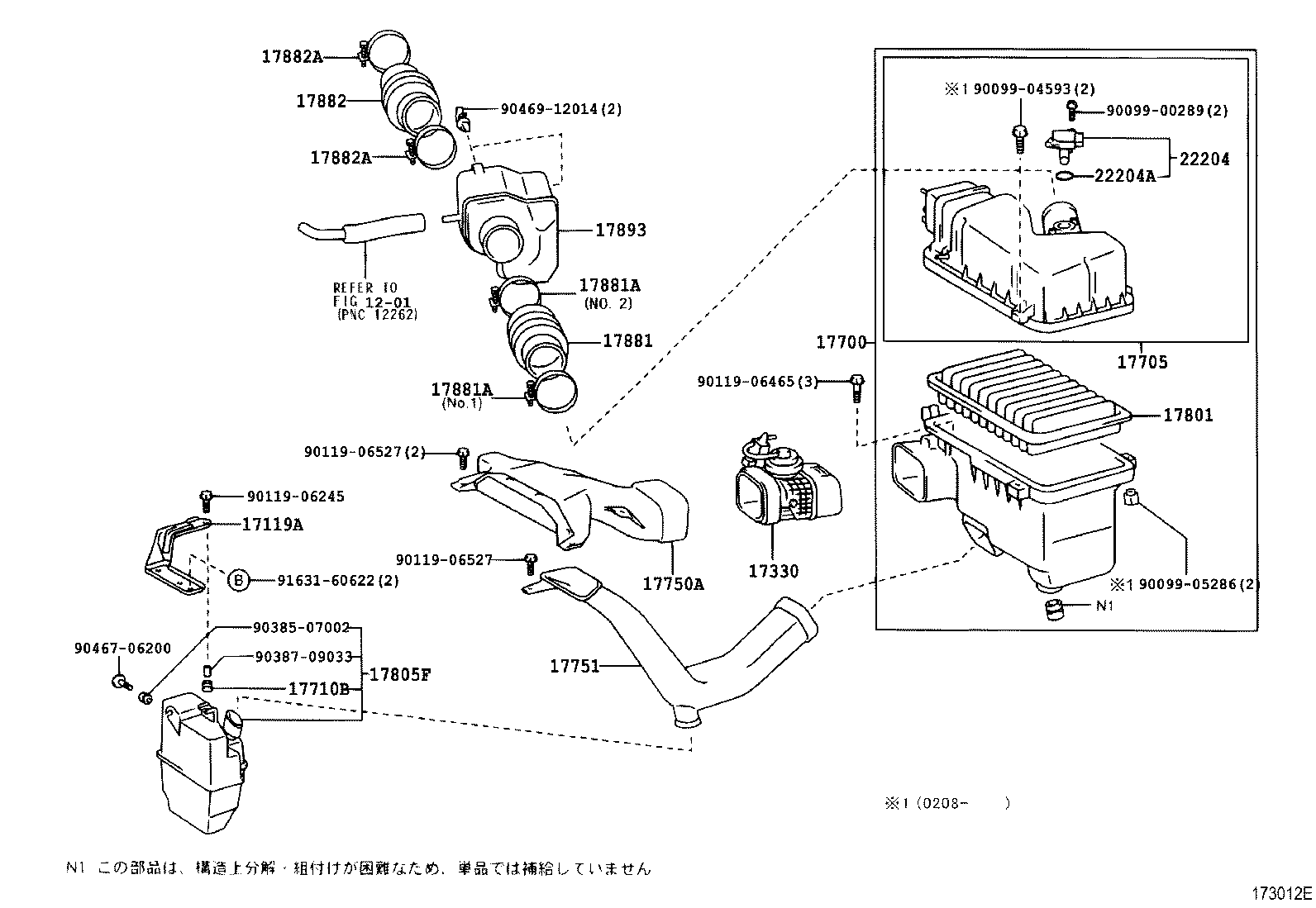

Exploded illustration 173012E 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 1201 — not listed in this catalogue 9046912014 — not listed in this catalogue 17893 — RESONATOR, INTAKE AIR (2 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (4 parts) 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (4 parts) 9011906527 — not listed in this catalogue 9011906527 — not listed in this catalogue 9011906245 — not listed in this catalogue 17119A — BRACKET, AIR CLEANER (2 parts) 9163160622 — not listed in this catalogue 9038709033 — not listed in this catalogue 17710B — GROMMET (2 parts) 17805F — RESONATOR SUB-ASSY, INTAKE AIR (2 parts) 9046706200 — not listed in this catalogue 17330 — VALVE ASSY, INTAKE AIR CONTROL, NO.3 (2 parts) 17750A — INLET ASSY, AIR CLEANER (2 parts) 17751 — INLET, AIR CLEANER, NO.1 (2 parts) 9011906465 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (4 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (2 parts) 9009900289 — not listed in this catalogue 22204A — RING, O(FOR INTAKE AIR FLOW METER) (2 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (2 parts) 9038507002 — not listed in this catalogue 9009904593 — not listed in this catalogue 9009905286 — not listed in this catalogue
173012E · 18 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17119A — Bracket, Air Cleaner
17119-28040 Bracket, Air Cleaner
2001-07 → 2004-06 ended
1MZFE MCV30 ¥3,240
17119-28040 Bracket, Air Cleaner
2004-06 → —
1MZFE MCV30 ¥3,240
17330 — Valve Assy, Intake Air Control, NO.3
17330-20010 Valve Assy, Intake Air Control, NO.3
2001-07 → 2004-06 ended
1MZFE MCV30 ¥8,100
17330-20010 Valve Assy, Intake Air Control, NO.3
2004-06 → —
1MZFE MCV30 ¥8,100
17700 — Cleaner Assy, Air
17700-20180 Cleaner Assy, Air
2001-07 → 2002-08 ended
1MZFE MCV30 ¥25,000
17700-20200 Cleaner Assy, Air
2002-08 → 2004-06 ended
1MZFE MCV30 ¥25,000
17700-20200 Cleaner Assy, Air
2004-06 → —
1MZFE MCV30 ¥25,000
17705 — Cap Sub-assy, Air Cleaner
17705-20170 Cap Sub-assy, Air Cleaner
2001-07 → 2004-06 ended
1MZFE MCV30 —
17705-20170 Cap Sub-assy, Air Cleaner
2004-06 → —
1MZFE MCV30 —
17710B — Grommet
90480-17013 Grommet
2001-07 → 2004-06 ended
1MZFE MCV30 ¥230
90480-17013 Grommet
2004-06 → —
1MZFE MCV30 ¥230
17750A — Inlet Assy, Air Cleaner
17750-20110 Inlet Assy, Air Cleaner
2001-07 → 2004-06 ended
1MZFE MCV30 ¥8,500
17750-20110 Inlet Assy, Air Cleaner
2004-06 → —
1MZFE MCV30 ¥8,500
17751 — Inlet, Air Cleaner, NO.1
17751-20020 Inlet, Air Cleaner, NO.1
2001-07 → 2004-06 ended
1MZFE MCV30 ¥5,800
17751-20020 Inlet, Air Cleaner, NO.1
2004-06 → —
1MZFE MCV30 ¥5,800
17801 — Element Sub-assy, Air Cleaner Filter
17801-0H020 note Element Sub-assy, Air Cleaner Filter
2001-07 → 2004-06 ended
1MZFE MCV30 —
17801-20040 note Element Sub-assy, Air Cleaner Filter
2001-07 → 2004-06 ended
1MZFE MCV30 ¥3,570
17801-0H020 note Element Sub-assy, Air Cleaner Filter
2004-06 → —
1MZFE MCV30 —
17801-20040 note Element Sub-assy, Air Cleaner Filter
2004-06 → —
1MZFE MCV30 ¥3,570
17805F — Resonator Sub-assy, Intake Air
17805-20040 Resonator Sub-assy, Intake Air
2001-07 → 2004-06 ended
1MZFE MCV30 ¥10,600
17805-20040 Resonator Sub-assy, Intake Air
2004-06 → —
1MZFE MCV30 ¥10,600
17881 — Hose, Air Cleaner, NO.1
17881-20130 Hose, Air Cleaner, NO.1
2001-07 → 2004-06 ended
1MZFE MCV30 ¥2,080
17881-20130 Hose, Air Cleaner, NO.1
2004-06 → —
1MZFE MCV30 ¥2,080
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥240
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥520
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-06 → —
1MZFE MCV30 ¥240
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-06 → —
1MZFE MCV30 ¥520
17882 — Hose, Air Cleaner, NO.2
17882-20160 Hose, Air Cleaner, NO.2
2001-07 → 2002-10 ended
1MZFE MCV30 ¥2,470
17882-20161 Hose, Air Cleaner, NO.2
2002-10 → 2004-06 ended
1MZFE MCV30 ¥2,470
17882-20161 Hose, Air Cleaner, NO.2
2004-06 → —
1MZFE MCV30 ¥2,470
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10850 Clamp(FOR AIR CLEANER HOSE, NO.2)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥240
96111-10850 Clamp(FOR AIR CLEANER HOSE, NO.2)
2004-06 → —
1MZFE MCV30 ¥240
17893 — Resonator, Intake Air
17893-20070 Resonator, Intake Air
2001-07 → 2004-06 ended
1MZFE MCV30 ¥6,800
17893-20070 Resonator, Intake Air
2004-06 → —
1MZFE MCV30 ¥6,800
22204 — Meter Sub-assy, Intake Air Flow
22204-22010 Meter Sub-assy, Intake Air Flow
2001-07 → 2004-06 ended
1MZFE MCV30 ¥12,400
22204-22010 Meter Sub-assy, Intake Air Flow
2004-06 → —
1MZFE MCV30 ¥12,400
22204A — Ring, O(FOR INTAKE AIR FLOW METER)
90099-14141 Ring, O(FOR INTAKE AIR FLOW METER)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥120
90099-14141 Ring, O(FOR INTAKE AIR FLOW METER)
2004-06 → —
1MZFE MCV30 ¥120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
