Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 173023E 17650G — VALVE, DUTY VACUUM SWITCHING (4 parts) 9017906080 — not listed in this catalogue 9044708150 — not listed in this catalogue 9099992002 — not listed in this catalogue 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (2 parts) 25701 — VALVE SET, EMISSION CONTROL (2 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 17650G — VALVE, DUTY VACUUM SWITCHING (4 parts) 23827A — HOSE, FUEL VAPOR FEED, NO.2 (2 parts) 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (2 parts) 9041304005 — not listed in this catalogue 9041205002 — not listed in this catalogue 9046400091 — not listed in this catalogue 17308 — HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) (2 parts) 9041205005 — not listed in this catalogue 17308B — HOSE SUB-ASSY, VACUUM (2 parts) 9046400596 — not listed in this catalogue 9044708165 — not listed in this catalogue 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (2 parts) 7701 — not listed in this catalogue 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (2 parts) 23826 — HOSE, FUEL VAPOR FEED, NO.1 (3 parts) 25715 — BRACKET, EMISSION CONTROL VALVE (2 parts) 25715 — BRACKET, EMISSION CONTROL VALVE (2 parts) 1107 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue

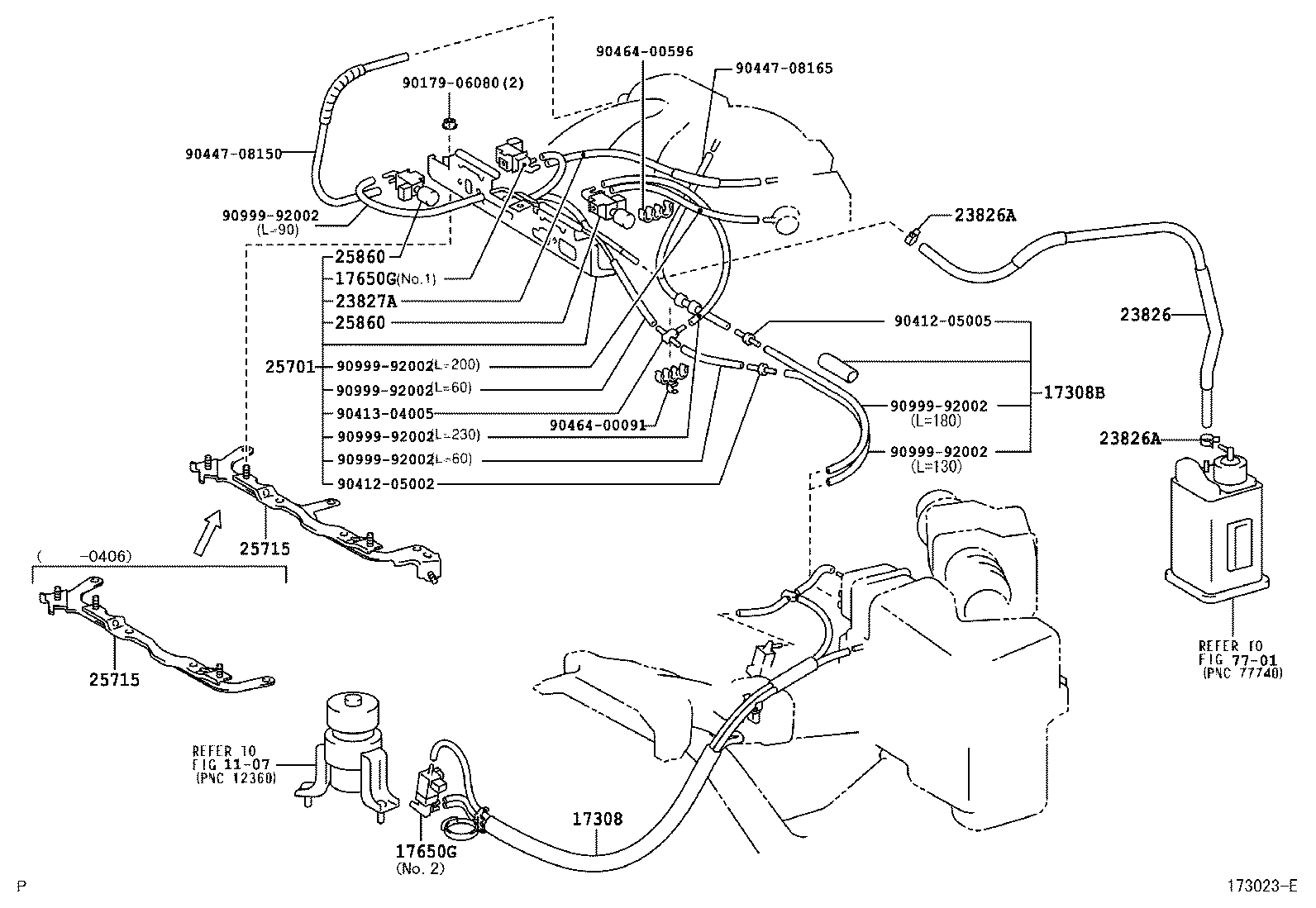

173023E · 13 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
17308 — Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308-20180 Hose Sub-assy, Vacuum(FOR IDLE-UP)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥12,000
17308-20180 Hose Sub-assy, Vacuum(FOR IDLE-UP)
2004-06 → —
1MZFE MCV30 ¥12,000
17308B — Hose Sub-assy, Vacuum
17308-20170 Hose Sub-assy, Vacuum
2001-07 → 2004-06 ended
1MZFE MCV30 ¥2,460
17308-20170 Hose Sub-assy, Vacuum
2004-06 → —
1MZFE MCV30 ¥2,460
17650G — Valve, Duty Vacuum Switching
90910-12204 note Valve, Duty Vacuum Switching
2001-07 → 2004-06 ended
1MZFE MCV30 —
90910-12241 note Valve, Duty Vacuum Switching
2001-07 → 2004-06 ended
1MZFE MCV30 ¥4,660
90910-12204 note Valve, Duty Vacuum Switching
2004-06 → —
1MZFE MCV30 —
90910-12241 note Valve, Duty Vacuum Switching
2004-06 → —
1MZFE MCV30 ¥4,660
23826 — Hose, Fuel Vapor Feed, NO.1
23826-20090 Hose, Fuel Vapor Feed, NO.1
2001-07 → 2001-11 ended
1MZFE MCV30 ¥2,020
23826-20091 Hose, Fuel Vapor Feed, NO.1
2001-11 → 2004-06 ended
1MZFE MCV30 ¥2,010
23826-20091 Hose, Fuel Vapor Feed, NO.1
2004-06 → —
1MZFE MCV30 ¥2,010
23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2001-07 → 2004-06 ended
1MZFE MCV30 ¥100
90466-11003 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2004-06 → —
1MZFE MCV30 ¥100
23827A — Hose, Fuel Vapor Feed, NO.2
23827-20090 Hose, Fuel Vapor Feed, NO.2
2001-07 → 2004-06 ended
1MZFE MCV30 ¥1,590
23827-20090 Hose, Fuel Vapor Feed, NO.2
2004-06 → —
1MZFE MCV30 ¥1,590
25701 — Valve Set, Emission Control
25701-20190 Valve Set, Emission Control
2001-07 → 2004-06 ended
1MZFE MCV30 ¥25,600
25701-20190 Valve Set, Emission Control
2004-06 → —
1MZFE MCV30 ¥25,600
25715 — Bracket, Emission Control Valve
25715-20010 Bracket, Emission Control Valve
2001-07 → 2004-06 ended
1MZFE MCV30 ¥1,200
25715-20011 Bracket, Emission Control Valve
2004-06 → —
1MZFE MCV30 ¥1,430
25860 — Valve Assy, Vacuum Switching, NO.1
25860-62010 Valve Assy, Vacuum Switching, NO.1
2001-07 → 2004-06 ended
1MZFE MCV30 ¥5,100
25860-62010 Valve Assy, Vacuum Switching, NO.1
2004-06 → —
1MZFE MCV30 ¥5,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
