Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

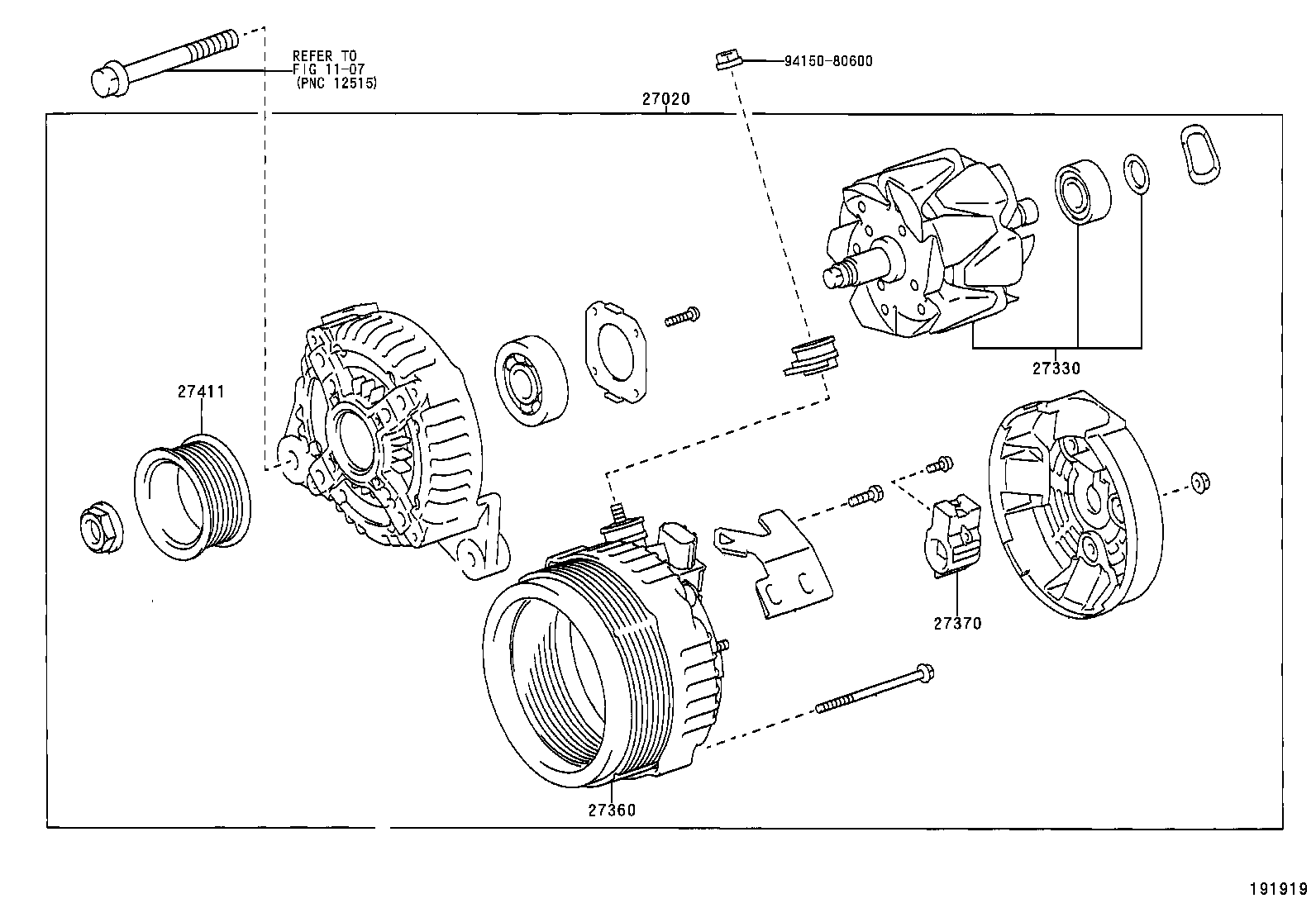

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-20250 note |
Alternator Assy
2001-07 → 2003-07
ended
|
1MZFE MCV30 | ¥135,000 | |
| 27060-20270 note |
Alternator Assy
2003-07 → 2004-06
ended
|
1MZFE MCV30 | ¥135,000 | |
| 27060-20270 note |
Alternator Assy
2004-06 → —
|
1MZFE MCV30 | ¥135,000 | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-20070 |
Rotor Assy, Alternator
2001-07 → 2003-07
ended
|
1MZFE MCV30 | — | |
| 27330-30070 |
Rotor Assy, Alternator
2003-07 → 2004-06
ended
|
1MZFE MCV30 | ¥0 | |
| 27330-30070 |
Rotor Assy, Alternator
2004-06 → —
|
1MZFE MCV30 | ¥0 | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-20220 |
Coil Assy, Alternator
2003-07 → 2004-06
ended
|
1MZFE MCV30 | — | |
| 27360-20220 |
Coil Assy, Alternator
2004-06 → —
|
1MZFE MCV30 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-58460 |
Holder Assy, Alternator Brush
2003-07 → 2004-06
ended
|
1MZFE MCV30 | ¥0 | |
| 27370-75060 |
Holder Assy, Alternator Brush
2001-07 → 2003-07
ended
|
1MZFE MCV30 | — | |
| 27370-58460 |
Holder Assy, Alternator Brush
2004-06 → —
|
1MZFE MCV30 | ¥0 | |
| 27411 — Pulley, Alternator | ||||
| 27411-46080 |
Pulley, Alternator
2001-07 → 2004-06
ended
|
1MZFE MCV30 | — | |
| 27411-46080 |
Pulley, Alternator
2004-06 → —
|
1MZFE MCV30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
