Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

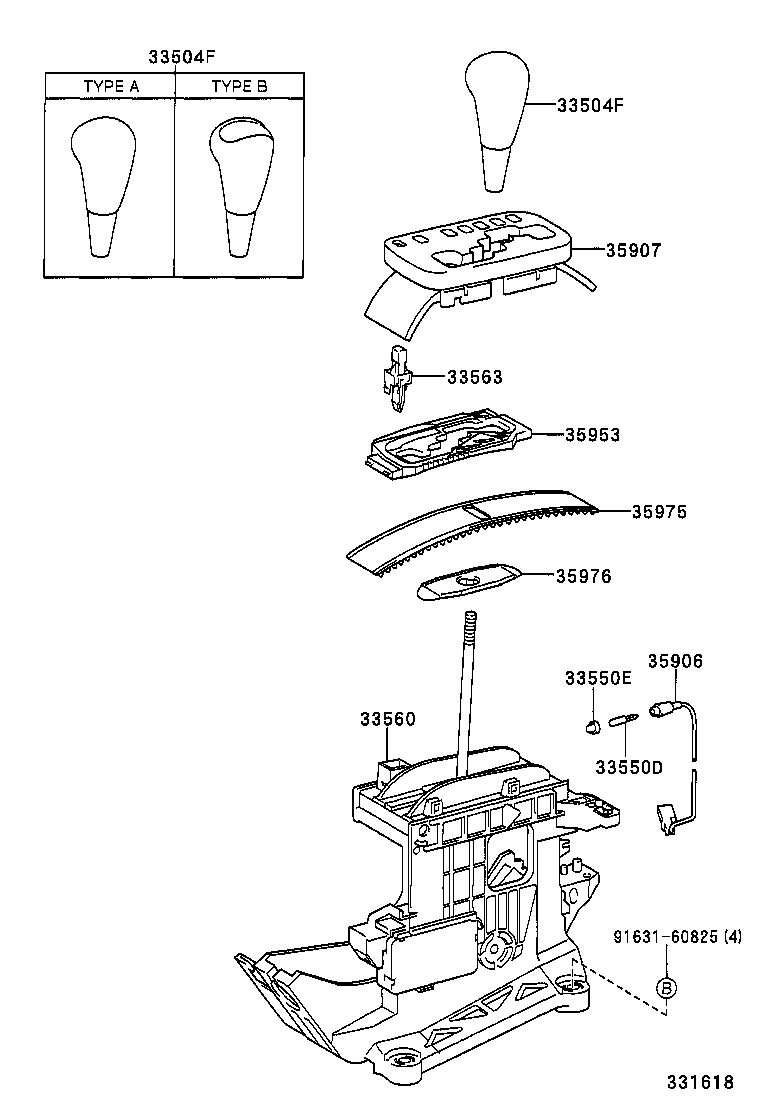

Exploded illustration 331618 33504F — KNOB SUB-ASSY, SHIFT LEVER (8 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (8 parts) 35907 — HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) (2 parts) 33563 — BUTTON, SHIFT LOCK RELEASE (2 parts) 35953 — GUIDE, POSITION INDICATOR LIGHT (2 parts) 35975 — COVER, SLIDE (FOR POSITION INDICATOR) (2 parts) 35976 — COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) (2 parts) 35906 — WIRE SUB-ASSY, INDICATOR LAMP (2 parts) 33550E — CAP, POSITION INDICATOR LAMP (2 parts) 33560 — UNIT ASSY, SHIFT LOCK CONTROL (3 parts) 33550D — BULB, POSITION INDICATOR LAMP (2 parts) 9163160825 — not listed in this catalogue
331618 · 11 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-30281-C0 note Knob Sub-assy, Shift Lever
2001-07 → 2004-06 ended
MCV30 ¥6,200
33504-30281-E0 note Knob Sub-assy, Shift Lever
2001-07 → 2004-06 ended
MCV30 ¥6,200
33504-30310-C3 note Knob Sub-assy, Shift Lever
2001-07 → 2004-06 ended
MCV30 30G ¥8,200
33504-30310-E1 note Knob Sub-assy, Shift Lever
2001-07 → 2004-06 ended
MCV30 30G ¥8,200
33504-30281-C0 note Knob Sub-assy, Shift Lever
2004-06 → 2006-03 ended
MCV30 ¥6,200
33504-30281-E0 note Knob Sub-assy, Shift Lever
2004-06 → 2006-03 ended
MCV30 ¥6,200
33504-30310-C9 note Knob Sub-assy, Shift Lever
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
33504-30310-E7 note Knob Sub-assy, Shift Lever
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
33550D — Bulb, Position Indicator Lamp
90981-11040 note Bulb, Position Indicator Lamp
2001-07 → 2004-06 ended
MCV30 ¥140
90981-11040 note Bulb, Position Indicator Lamp
2004-06 → —
MCV30 ¥140
33550E — Cap, Position Indicator Lamp
90339-04049 Cap, Position Indicator Lamp
2001-07 → 2004-06 ended
MCV30 ¥100
90339-04049 Cap, Position Indicator Lamp
2004-06 → —
MCV30 ¥100
33560 — Unit Assy, Shift Lock Control
33560-33060 Unit Assy, Shift Lock Control
2001-07 → 2002-09 ended
MCV30 ¥15,100
33560-33061 Unit Assy, Shift Lock Control
2002-09 → 2004-06 ended
MCV30 ¥15,200
33560-33061 Unit Assy, Shift Lock Control
2004-06 → —
MCV30 ¥15,200
33563 — Button, Shift Lock Release
33563-33170 Button, Shift Lock Release
2001-07 → 2004-06 ended
MCV30 ¥410
33563-33170 Button, Shift Lock Release
2004-06 → —
MCV30 ¥410
35906 — Wire Sub-assy, Indicator Lamp
35906-33090 Wire Sub-assy, Indicator Lamp
2001-07 → 2004-06 ended
MCV30 ¥480
35906-33090 Wire Sub-assy, Indicator Lamp
2004-06 → —
MCV30 ¥480
35907 — Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35907-33020 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2001-07 → 2004-06 ended
MCV30 ¥10,400
35907-33020 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2004-06 → —
MCV30 ¥10,400
35953 — Guide, Position Indicator Light
35953-33020 Guide, Position Indicator Light
2001-07 → 2004-06 ended
MCV30 ¥1,870
35953-33020 Guide, Position Indicator Light
2004-06 → —
MCV30 ¥1,870
35975 — Cover, Slide (FOR POSITION INDICATOR)
35975-33070 Cover, Slide (FOR POSITION INDICATOR)
2001-07 → 2004-06 ended
MCV30 ¥850
35975-33070 Cover, Slide (FOR POSITION INDICATOR)
2004-06 → —
MCV30 ¥850
35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35976-33070 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2001-07 → 2004-06 ended
MCV30 ¥380
35976-33070 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2004-06 → —
MCV30 ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
