Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

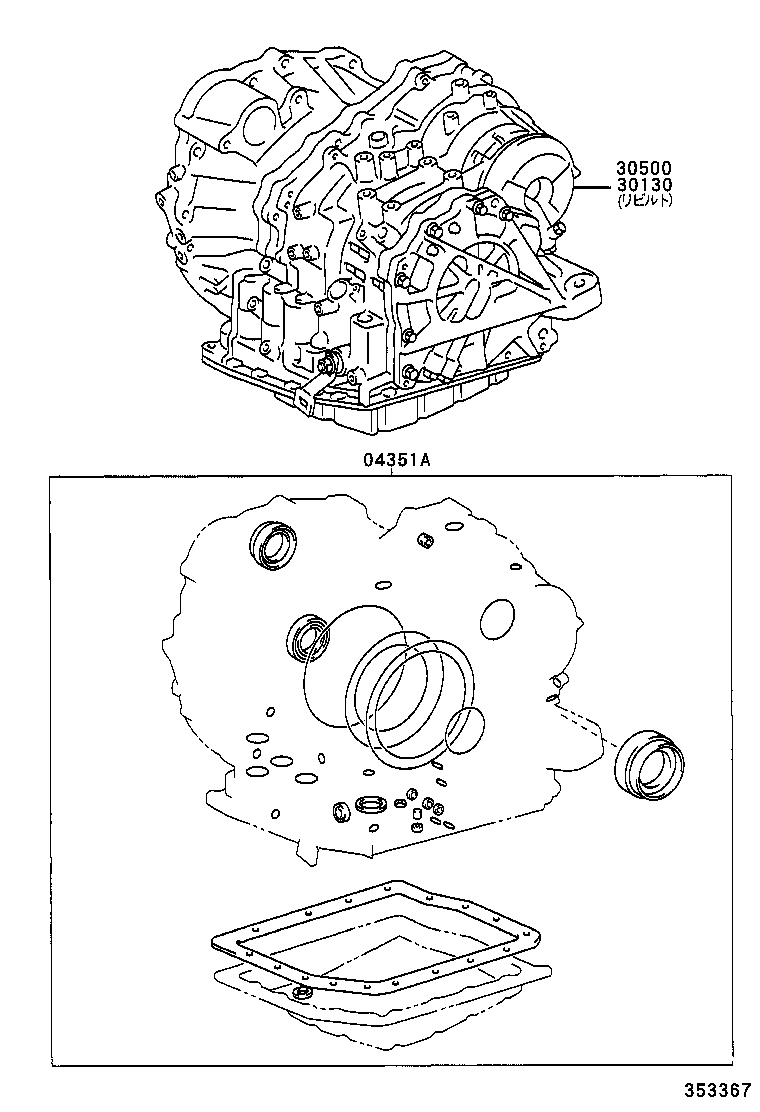

| 04351A — Gasket Kit, Transaxle Overhaul(ATM) | ||||
| 04351-33070 |
Gasket Kit, Transaxle Overhaul(ATM)
2001-07 → 2003-07
ended
|
MCV30 | ¥25,700 | |
| 04351-33140 |
Gasket Kit, Transaxle Overhaul(ATM)
2003-07 → 2004-06
ended
|
MCV30 | ¥25,700 | |
| 04351-33201 |
Gasket Kit, Transaxle Overhaul(ATM)
2005-11 → —
|
MCV30 | ¥25,500 | |
| 04351-33320 |
Gasket Kit, Transaxle Overhaul(ATM)
2004-06 → 2005-11
ended
|
MCV30 | ¥25,500 | |
| 30130 — Transaxle Assy, Rebuilt | ||||
| 30130-33410 |
Transaxle Assy, Rebuilt
2001-07 → 2002-05
ended
|
MCV30 | ¥297,000 | |
| 30130-33411 |
Transaxle Assy, Rebuilt
2002-05 → 2003-07
ended
|
MCV30 | ¥300,000 | |
| 30130-33412 |
Transaxle Assy, Rebuilt
2003-07 → 2004-06
ended
|
MCV30 | ¥301,000 | |
| 30130-33412 |
Transaxle Assy, Rebuilt
2004-06 → —
|
MCV30 | ¥301,000 | |
| 30500 — Transaxle Assy, Automatic | ||||
| 30500-33410 note |
Transaxle Assy, Automatic
2001-07 → 2002-05
ended
|
MCV30 | ¥494,000 | |
| 30500-33411 note |
Transaxle Assy, Automatic
2002-05 → 2003-07
ended
|
MCV30 | ¥494,000 | |
| 30500-33412 note |
Transaxle Assy, Automatic
2003-07 → 2004-06
ended
|
MCV30 | ¥495,000 | |
| 30500-33412 note |
Transaxle Assy, Automatic
2004-06 → —
|
MCV30 | ¥495,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
