Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

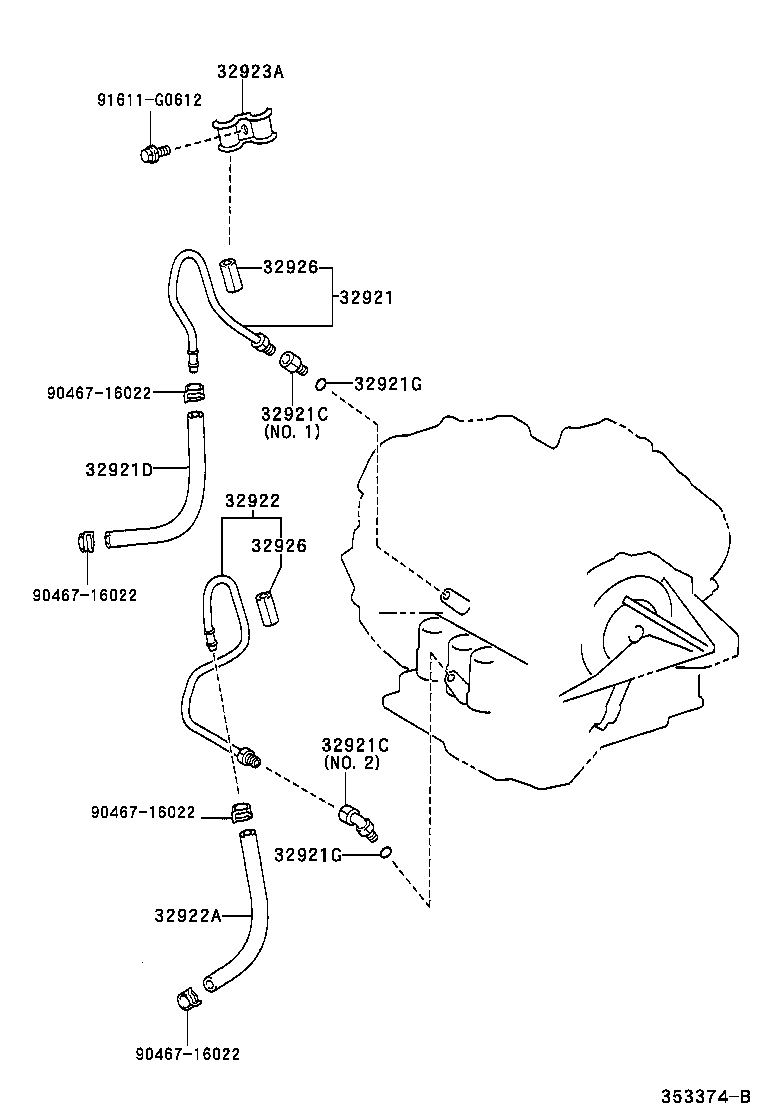

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32921 — Tube, Oil Cooler Inlet, NO.1 | ||||
| 32921-33120 |
Tube, Oil Cooler Inlet, NO.1
2001-07 → 2003-07
ended
|
MCV30 | ¥940 | |
| 32921-33140 |
Tube, Oil Cooler Inlet, NO.1
2003-07 → 2004-06
ended
|
MCV30 | ¥1,240 | |
| 32921-33140 |
Tube, Oil Cooler Inlet, NO.1
2004-06 → —
|
MCV30 | ¥1,240 | |
| 32921C — Union(FOR OIL COOLER TUBE) | ||||
| 90404-16031 note |
Union(FOR OIL COOLER TUBE)
2001-07 → 2004-06
ended
|
MCV30 | ¥340 | |
| 90407-16010 note |
Union(FOR OIL COOLER TUBE)
2001-07 → 2004-06
ended
|
MCV30 | ¥440 | |
| 90404-16031 note |
Union(FOR OIL COOLER TUBE)
2004-06 → —
|
MCV30 | ¥340 | |
| 90407-16010 note |
Union(FOR OIL COOLER TUBE)
2004-06 → —
|
MCV30 | ¥440 | |
| 32921D — Hose(FOR OIL COOLER INLET) | ||||
| 32941-33050 |
Hose(FOR OIL COOLER INLET)
2001-07 → 2004-06
ended
|
MCV30 | ¥1,260 | |
| 32941-33050 |
Hose(FOR OIL COOLER INLET)
2004-06 → —
|
MCV30 | ¥1,260 | |
| 32921G — Ring, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
Ring, O(FOR OIL COOLER TUBE UNION)
2001-07 → 2004-06
ended
|
MCV30 | ¥170 | |
| 90301-10189 |
Ring, O(FOR OIL COOLER TUBE UNION)
2004-06 → —
|
MCV30 | ¥170 | |
| 32922 — Tube, Oil Cooler Outlet, NO.1 | ||||
| 32922-33090 |
Tube, Oil Cooler Outlet, NO.1
2001-07 → 2003-07
ended
|
MCV30 | ¥940 | |
| 32922-33130 |
Tube, Oil Cooler Outlet, NO.1
2003-07 → 2004-06
ended
|
MCV30 | ¥1,240 | |
| 32922-33130 |
Tube, Oil Cooler Outlet, NO.1
2004-06 → —
|
MCV30 | ¥1,240 | |
| 32922A — Hose(FOR OIL COOLER OUTLET) | ||||
| 32942-33030 |
Hose(FOR OIL COOLER OUTLET)
2001-07 → 2004-06
ended
|
MCV30 | ¥1,850 | |
| 32942-33030 |
Hose(FOR OIL COOLER OUTLET)
2004-06 → —
|
MCV30 | ¥1,850 | |
| 32923A — Clamp, Automatic Transmission Oil Cooler Tube | ||||
| 90462-12074 |
Clamp, Automatic Transmission Oil Cooler Tube
2001-07 → 2004-06
ended
|
MCV30 | ¥220 | |
| 90462-12074 |
Clamp, Automatic Transmission Oil Cooler Tube
2004-06 → —
|
MCV30 | ¥220 | |
| 32926 — Cushion, Oil Cooler Tube(ATM) | ||||
| 32926-30020 note |
Cushion, Oil Cooler Tube(ATM)
2001-07 → 2004-06
ended
|
MCV30 | ¥170 | |
| 32926-30020 note |
Cushion, Oil Cooler Tube(ATM)
2004-06 → —
|
MCV30 | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
