Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

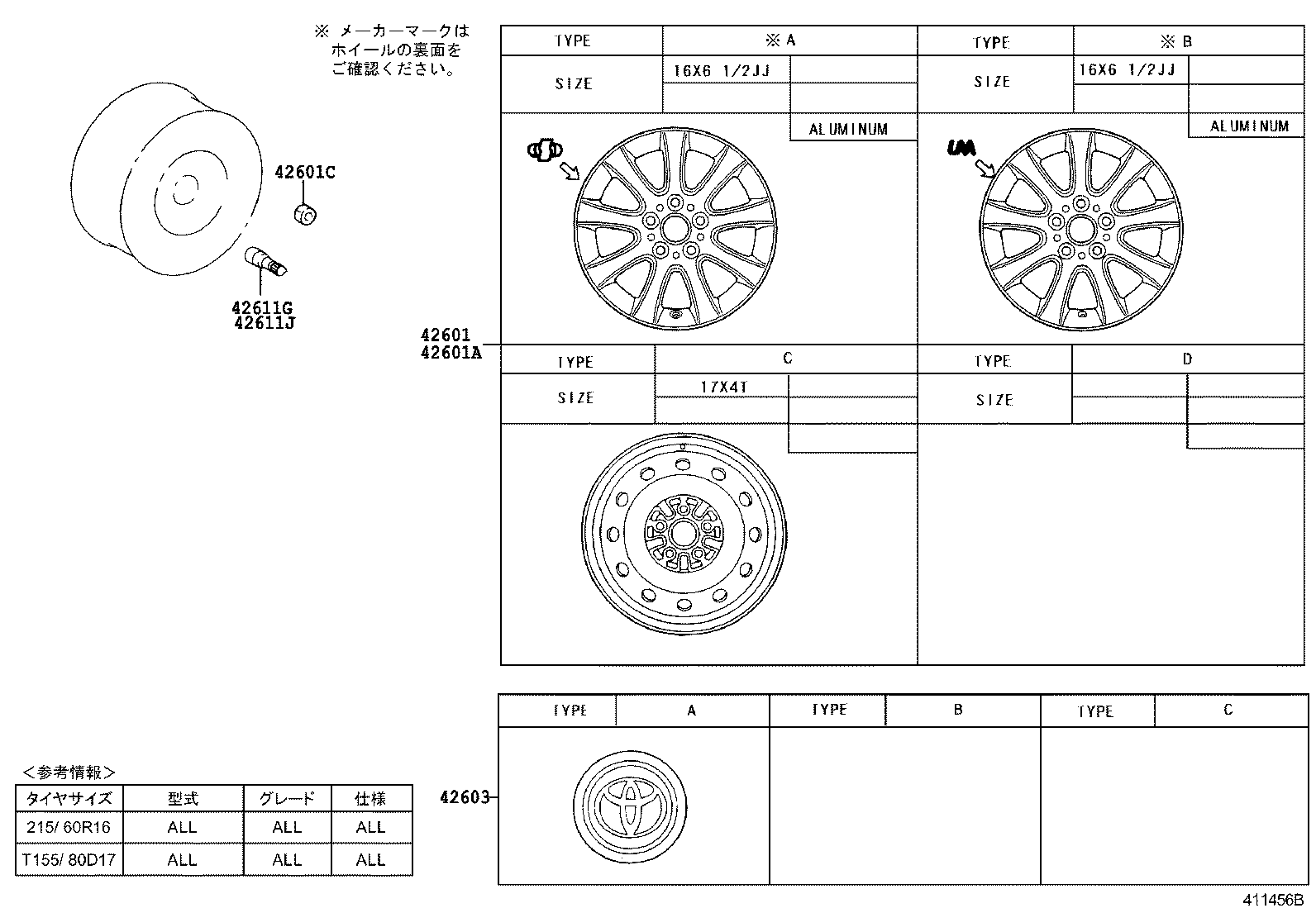

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42601 — Wheel, Disc | ||||
| 42611-33370 note |
Wheel, Disc
2001-07 → 2004-06
ended
|
MCV30 | ¥39,500 | |
| 42611-33380 note |
Wheel, Disc
2001-07 → 2004-06
ended
|
MCV30 | ¥39,500 | |
| 42611-33370 note |
Wheel, Disc
2004-06 → —
|
MCV30 | ¥39,500 | |
| 42611-33380 note |
Wheel, Disc
2004-06 → —
|
MCV30 | ¥39,500 | |
| 42601A — Wheel, Disc (FOR SPARE) | ||||
| 42611-33370 note |
Wheel, Disc (FOR SPARE)
2001-07 → 2004-06
ended
|
MCV30 | ¥39,500 | |
| 42611-33380 note |
Wheel, Disc (FOR SPARE)
2001-07 → 2004-06
ended
|
MCV30 | ¥39,500 | |
| 42611-50090 note |
Wheel, Disc (FOR SPARE)
2001-07 → 2004-06
ended
|
MCV30 | ¥10,900 | |
| 42611-50090 note |
Wheel, Disc (FOR SPARE)
2004-06 → —
|
MCV30 | ¥10,900 | |
| 42601C — Nut, Hub (FOR AXLE) | ||||
| 90942-01033 |
Nut, Hub (FOR AXLE)
2001-07 → 2004-06
ended
|
MCV30 | ¥430 | |
| 90942-01033 |
Nut, Hub (FOR AXLE)
2004-06 → —
|
MCV30 | ¥430 | |
| 42603 — Ornament Sub-assy, Wheel Hub | ||||
| 42603-33090 note |
Ornament Sub-assy, Wheel Hub
2001-07 → 2004-06
ended
|
MCV30 | ¥1,360 | |
| 42603-33090 note |
Ornament Sub-assy, Wheel Hub
2004-06 → —
|
MCV30 | ¥1,360 | |
| 42611G — Valve (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
Valve (FOR TUBELESS TIRE)
2001-07 → 2004-06
ended
|
MCV30 | ¥390 | |
| 90942-05009 |
Valve (FOR TUBELESS TIRE)
2004-06 → —
|
MCV30 | ¥390 | |
| 42611J — Valve (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
Valve (FOR TUBELESS TIRE SPARE)
2001-07 → 2004-06
ended
|
MCV30 | ¥390 | |
| 90942-05009 |
Valve (FOR TUBELESS TIRE SPARE)
2004-06 → —
|
MCV30 | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
