Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

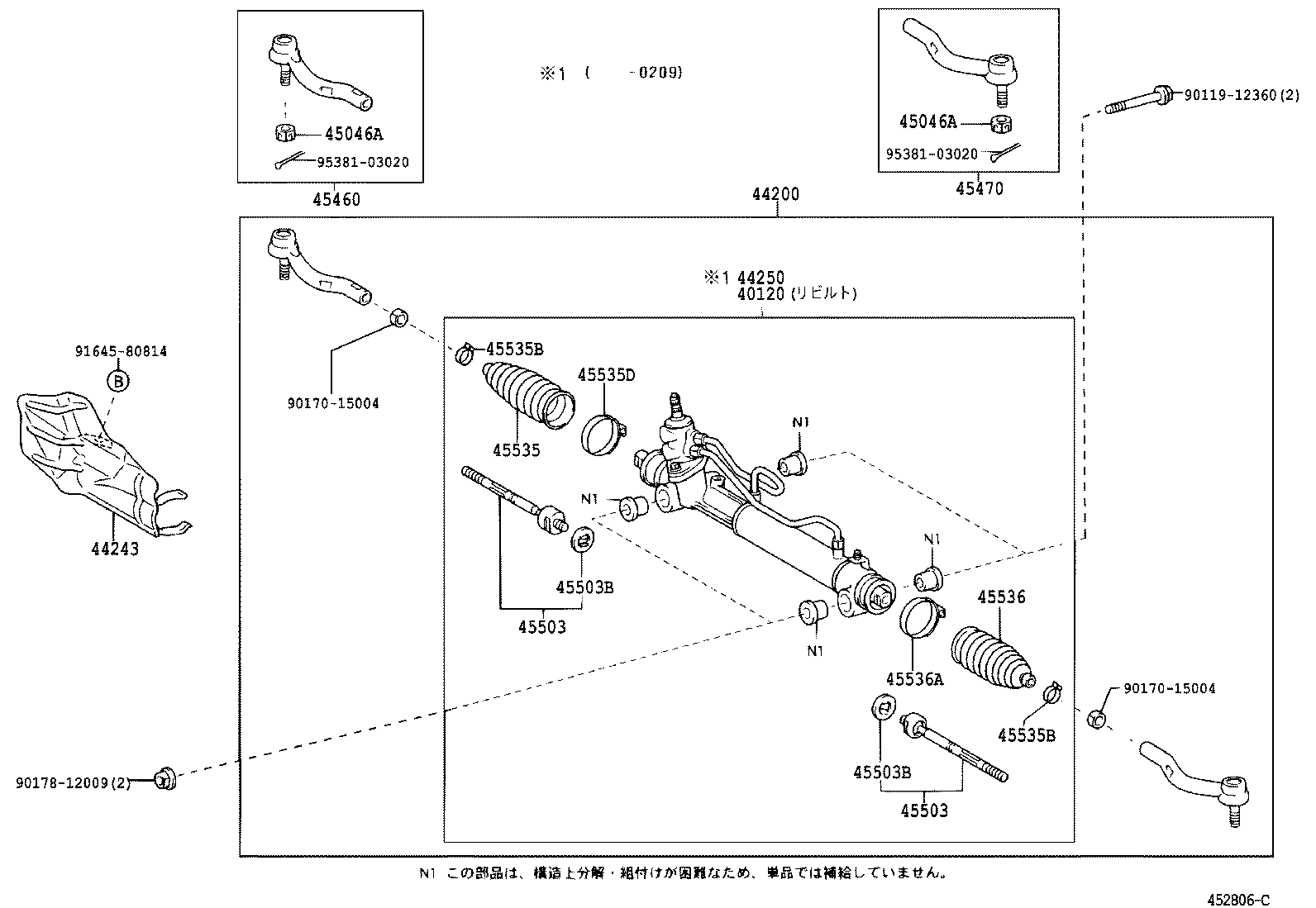

Exploded illustration 452806C 40120 — GEAR ASSY,POWER STEERING,REBUILT (3 parts) 44250 — GEAR ASSY, POWER STEERING(FOR RACK & PINION) (1 parts) 44243 — INSULATOR, POWER STEERING RACK HOUSING HEAT (2 parts) 9164580814 — not listed in this catalogue 9017015004 — not listed in this catalogue 9017015004 — not listed in this catalogue 9011912360 — not listed in this catalogue 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 9538103020 — not listed in this catalogue 9538103020 — not listed in this catalogue 45460 — ROD ASSY, TIE, RH (3 parts) 45470 — ROD ASSY, TIE, LH (3 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 45535 — BOOT, STEERING RACK, NO.1 (4 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (5 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (5 parts) 45536 — BOOT, STEERING RACK, NO.2 (4 parts) 45536A — CLAMP(FOR STEERING RACK BOOT NO.2) (4 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (4 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 9017812009 — not listed in this catalogue 44200 — LINK ASSY, POWER STEERING (4 parts)
452806C · 18 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
40120 — Gear Assy,Power Steering,Rebuilt
40120-33390 Gear Assy,Power Steering,Rebuilt
2001-07 → 2003-01 ended
MCV30 ¥74,900
40120-33391 Gear Assy,Power Steering,Rebuilt
2003-01 → 2004-06 ended
MCV30 ¥75,100
40120-33391 Gear Assy,Power Steering,Rebuilt
2004-06 → —
MCV30 ¥75,100
44200 — Link Assy, Power Steering
44200-33390 Link Assy, Power Steering
2001-07 → 2003-01 ended
MCV30 ¥117,000
44200-33391 Link Assy, Power Steering
2003-01 → 2003-07 ended
MCV30 ¥117,000
44200-33392 Link Assy, Power Steering
2003-07 → 2004-06 ended
MCV30 ¥117,000
44200-33392 Link Assy, Power Steering
2004-06 → —
MCV30 ¥117,000
44243 — Insulator, Power Steering Rack Housing Heat
44243-33020 Insulator, Power Steering Rack Housing Heat
2001-07 → 2004-06 ended
MCV30 ¥2,270
44243-33020 Insulator, Power Steering Rack Housing Heat
2004-06 → —
MCV30 ¥2,270
44250 — Gear Assy, Power Steering(FOR RACK & PINION)
44250-33390 Gear Assy, Power Steering(FOR RACK & PINION)
2001-07 → 2002-09 ended
MCV30 ¥107,000
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
2001-07 → 2004-06 ended
MCV30 ¥130
90171-12028 Nut, Castle(FOR TIE ROD END)
2004-06 → —
MCV30 ¥130
45460 — Rod Assy, Tie, RH
45460-39615 Rod Assy, Tie, RH
2001-07 → 2003-07 ended
MCV30 ¥4,660
45460-39635 Rod Assy, Tie, RH
2003-07 → 2004-06 ended
MCV30 ¥4,460
45460-39635 Rod Assy, Tie, RH
2004-06 → —
MCV30 ¥4,460
45470 — Rod Assy, Tie, LH
45470-39215 Rod Assy, Tie, LH
2001-07 → 2003-07 ended
MCV30 ¥4,660
45470-39225 Rod Assy, Tie, LH
2003-07 → 2004-06 ended
MCV30 ¥4,460
45470-39225 Rod Assy, Tie, LH
2004-06 → —
MCV30 ¥4,460
45503 — End Sub-assy, Steering Rack
45503-39225 End Sub-assy, Steering Rack
2001-07 → 2004-06 ended
MCV30 ¥7,600
45503-39225 End Sub-assy, Steering Rack
2004-06 → —
MCV30 ¥7,600
45503B — Washer, Claw(FOR STEERING RACK END)
90214-14009 note Washer, Claw(FOR STEERING RACK END)
2001-07 → 2004-06 ended
MCV30 ¥190
90214-14009 note Washer, Claw(FOR STEERING RACK END)
2004-06 → —
MCV30 ¥190
45535 — Boot, Steering Rack, NO.1
45535-06030 note Boot, Steering Rack, NO.1
2001-07 → 2004-06 ended
MCV30 —
45535-33030 note Boot, Steering Rack, NO.1
2001-07 → 2004-06 ended
MCV30 ¥870
45535-06030 note Boot, Steering Rack, NO.1
2004-06 → —
MCV30 —
45535-33030 note Boot, Steering Rack, NO.1
2004-06 → —
MCV30 ¥870
45535B — Clip(FOR STEERING RACK BOOT)
90080-46153 note Clip(FOR STEERING RACK BOOT)
2001-07 → 2004-06 ended
MCV30 —
90467-19017 note Clip(FOR STEERING RACK BOOT)
2001-07 → 2002-04 ended
MCV30 ¥240
90467-19021 note Clip(FOR STEERING RACK BOOT)
2002-04 → 2004-06 ended
MCV30 ¥180
90080-46153 note Clip(FOR STEERING RACK BOOT)
2004-06 → —
MCV30 —
90467-19021 note Clip(FOR STEERING RACK BOOT)
2004-06 → —
MCV30 ¥180
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
90080-46293 note Clamp(FOR STEERING RACK BOOT NO.1)
2001-07 → 2004-06 ended
MCV30 —
90460-58007 note Clamp(FOR STEERING RACK BOOT NO.1)
2001-07 → 2004-06 ended
MCV30 ¥370
90080-46293 note Clamp(FOR STEERING RACK BOOT NO.1)
2004-06 → —
MCV30 —
90460-58007 note Clamp(FOR STEERING RACK BOOT NO.1)
2004-06 → —
MCV30 ¥370
45536 — Boot, Steering Rack, NO.2
45535-06030 note Boot, Steering Rack, NO.2
2001-07 → 2004-06 ended
MCV30 —
45535-33030 note Boot, Steering Rack, NO.2
2001-07 → 2004-06 ended
MCV30 ¥870
45535-06030 note Boot, Steering Rack, NO.2
2004-06 → —
MCV30 —
45535-33030 note Boot, Steering Rack, NO.2
2004-06 → —
MCV30 ¥870
45536A — Clamp(FOR STEERING RACK BOOT NO.2)
90080-46293 note Clamp(FOR STEERING RACK BOOT NO.2)
2001-07 → 2004-06 ended
MCV30 —
90460-58007 note Clamp(FOR STEERING RACK BOOT NO.2)
2001-07 → 2004-06 ended
MCV30 ¥370
90080-46293 note Clamp(FOR STEERING RACK BOOT NO.2)
2004-06 → —
MCV30 —
90460-58007 note Clamp(FOR STEERING RACK BOOT NO.2)
2004-06 → —
MCV30 ¥370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
