Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

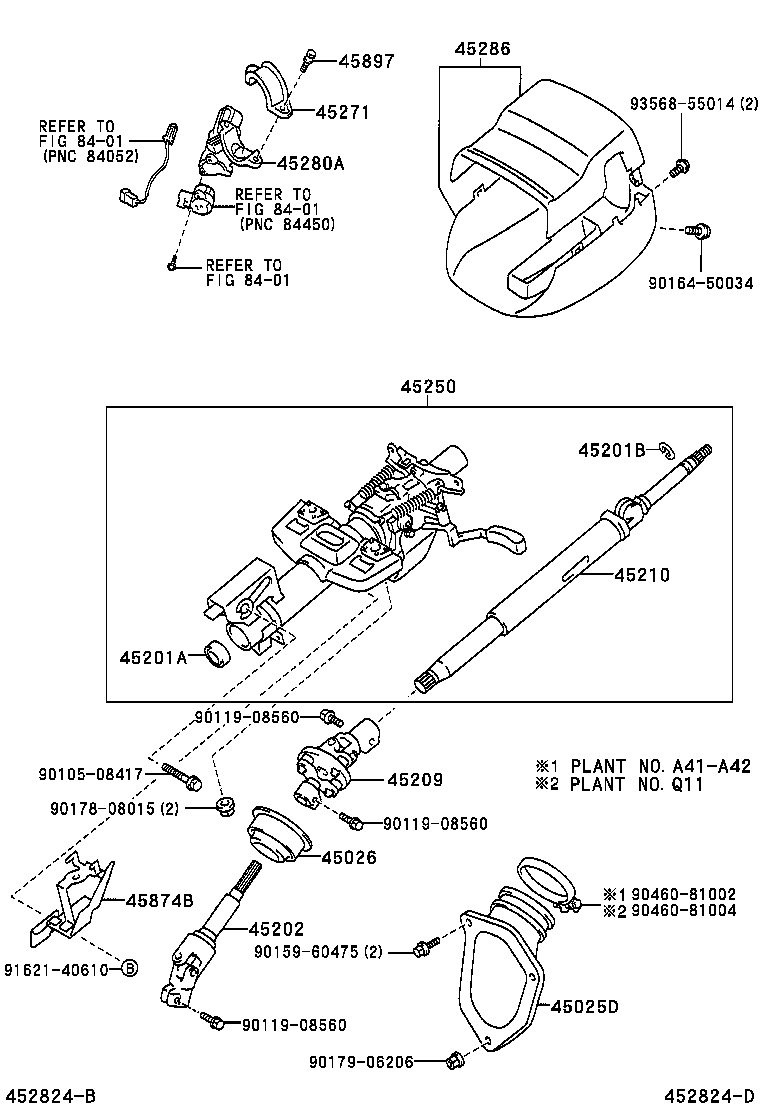

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-33070 |
Cover Sub-assy, Steering Column Hole, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥3,020 | |
| 45025-33070 |
Cover Sub-assy, Steering Column Hole, NO.1
2004-06 → —
|
MCV30 | ¥3,020 | |
| 45026 — Cover Sub-assy, Steering Column Hole, NO.2 | ||||
| 45026-33050 |
Cover Sub-assy, Steering Column Hole, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥2,080 | |
| 45026-33050 |
Cover Sub-assy, Steering Column Hole, NO.2
2004-06 → —
|
MCV30 | ¥2,080 | |
| 45201A — Bearing(FOR STEERING MAIN SHAFT) | ||||
| 45274-33020 |
Bearing(FOR STEERING MAIN SHAFT)
2001-07 → 2004-06
ended
|
MCV30 | ¥1,010 | |
| 45274-33020 |
Bearing(FOR STEERING MAIN SHAFT)
2004-06 → —
|
MCV30 | ¥1,010 | |
| 45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
2001-07 → 2004-06
ended
|
MCV30 | ¥120 | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
2004-06 → —
|
MCV30 | ¥120 | |
| 45202 — Shaft Sub-assy, Steering Intermediate | ||||
| 45202-33070 |
Shaft Sub-assy, Steering Intermediate
2001-07 → 2004-06
ended
|
MCV30 | ¥14,700 | |
| 45202-33070 |
Shaft Sub-assy, Steering Intermediate
2004-06 → —
|
MCV30 | ¥14,700 | |
| 45209 — Yoke Sub-assy, Steering Sliding | ||||
| 45209-33010 |
Yoke Sub-assy, Steering Sliding
2001-07 → 2004-06
ended
|
MCV30 | ¥6,700 | |
| 45209-33010 |
Yoke Sub-assy, Steering Sliding
2004-06 → —
|
MCV30 | ¥6,700 | |
| 45210 — Shaft Assy, Steering Main | ||||
| 45210-33120 |
Shaft Assy, Steering Main
2001-07 → 2004-06
ended
|
MCV30 | ¥12,900 | |
| 45210-33120 |
Shaft Assy, Steering Main
2004-06 → —
|
MCV30 | ¥12,900 | |
| 45250 — Column Assy, Steering | ||||
| 45250-33540 |
Column Assy, Steering
2001-07 → 2004-06
ended
|
MCV30 | ¥45,200 | |
| 45250-33540 |
Column Assy, Steering
2004-06 → —
|
MCV30 | ¥45,200 | |
| 45271 — Clamp, Steering Column, Upper | ||||
| 45271-33030 |
Clamp, Steering Column, Upper
2001-07 → 2004-06
ended
|
MCV30 | ¥1,070 | |
| 45271-33030 |
Clamp, Steering Column, Upper
2004-06 → —
|
MCV30 | ¥1,070 | |
| 45280A — Bracket Assy, Steering Column, Upper | ||||
| 45280-33130 |
Bracket Assy, Steering Column, Upper
2001-07 → 2004-06
ended
|
MCV30 | ¥20,700 | |
| 45280-33130 |
Bracket Assy, Steering Column, Upper
2004-06 → —
|
MCV30 | ¥20,700 | |
| 45286 — Cover, Steering Column | ||||
| 45286-33922-C0 note |
Cover, Steering Column
2001-07 → 2004-06
ended
|
MCV30 | ¥3,890 | |
| 45286-33922-E0 note |
Cover, Steering Column
2001-07 → 2004-06
ended
|
MCV30 | ¥3,890 | |
| 45286-33927-C0 note |
Cover, Steering Column
2004-06 → —
|
MCV30 | ¥3,890 | |
| 45286-33927-E0 note |
Cover, Steering Column
2004-06 → —
|
MCV30 | ¥3,890 | |
| 45874B — Protector, Steering Column, NO.1 | ||||
| 45874-33040 |
Protector, Steering Column, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥850 | |
| 45874-33040 |
Protector, Steering Column, NO.1
2004-06 → —
|
MCV30 | ¥850 | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2001-07 → 2004-06
ended
|
MCV30 | ¥210 | |
| 45897-12020 |
Bolt, Steering Lock Set
2004-06 → —
|
MCV30 | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
