Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

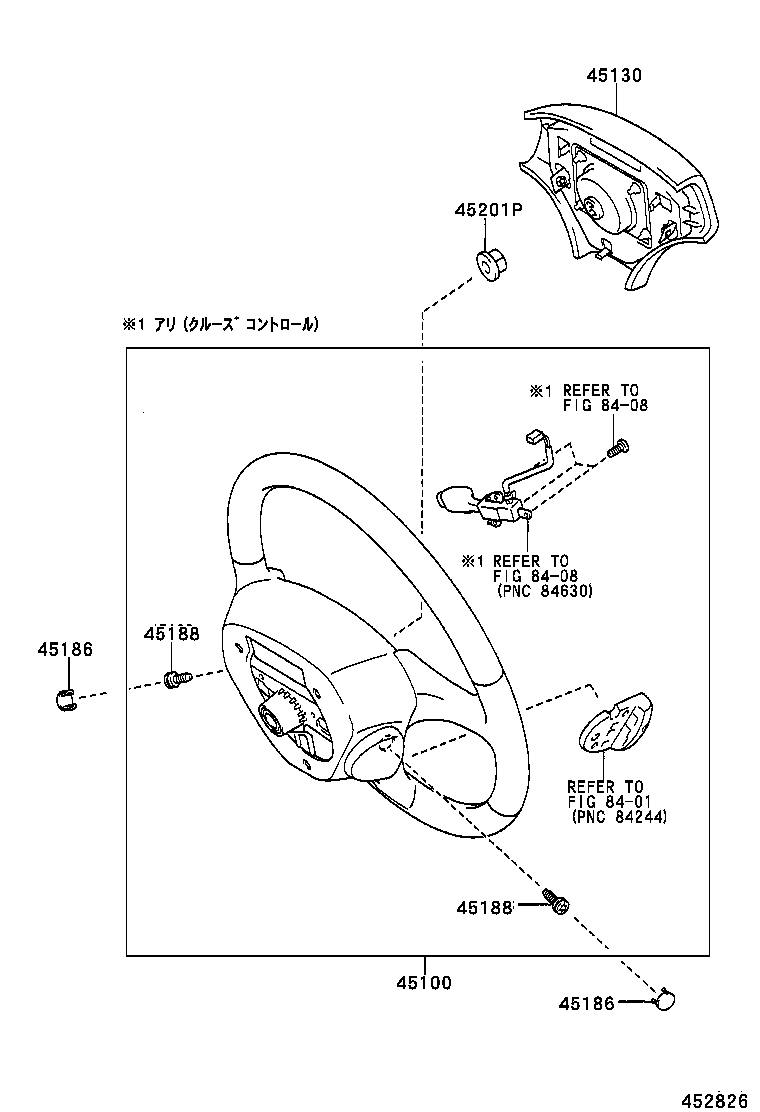

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-0W110-C0 note |
Wheel Assy, Steering
2001-07 → 2004-06
ended
|
MCV30 | ¥71,600 | |
| 45100-0W110-E0 note |
Wheel Assy, Steering
2001-07 → 2004-06
ended
|
MCV30 | ¥71,600 | |
| 45100-33470-C0 note |
Wheel Assy, Steering
2001-07 → 2004-06
ended
|
MCV30 30G | ¥82,000 | |
| 45100-33470-E0 note |
Wheel Assy, Steering
2001-07 → 2004-06
ended
|
MCV30 30G | ¥82,000 | |
| 45100-33520-D0 note |
Wheel Assy, Steering
2004-06 → 2006-03
ended
|
MCV30 30G | ¥63,800 | |
| 45100-33520-E3 note |
Wheel Assy, Steering
2004-06 → 2006-03
ended
|
MCV30 30G | ¥63,800 | |
| 45100-33530-C0 note |
Wheel Assy, Steering
2004-06 → 2006-03
ended
|
MCV30 | ¥63,800 | |
| 45100-33530-E3 note |
Wheel Assy, Steering
2004-06 → 2006-03
ended
|
MCV30 | ¥63,800 | |
| 45130 — Button Assy, Horn | ||||
| 45130-33360-C0 note |
Button Assy, Horn
2001-07 → 2002-08
ended
|
MCV30 | ¥77,000 | |
| 45130-33360-E0 note |
Button Assy, Horn
2001-07 → 2002-08
ended
|
MCV30 | ¥77,000 | |
| 45130-33361-C0 note |
Button Assy, Horn
2002-08 → 2004-06
ended
|
MCV30 | ¥77,200 | |
| 45130-33361-E0 note |
Button Assy, Horn
2002-08 → 2004-06
ended
|
MCV30 | ¥77,200 | |
| 45130-33450-C0 note |
Button Assy, Horn
2004-06 → 2006-03
ended
|
MCV30 | ¥77,200 | |
| 45130-33450-E0 note |
Button Assy, Horn
2004-06 → 2006-03
ended
|
MCV30 | ¥77,200 | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-44010-C0 note |
Cover, Steering Wheel, Lower NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥110 | |
| 45186-44010-E4 note |
Cover, Steering Wheel, Lower NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥110 | |
| 45186-33040-C0 note |
Cover, Steering Wheel, Lower NO.2
2004-06 → 2006-03
ended
|
MCV30 | ¥320 | |
| 45186-33040-E0 note |
Cover, Steering Wheel, Lower NO.2
2004-06 → 2006-03
ended
|
MCV30 | ¥320 | |
| 45186-33060-C0 note |
Cover, Steering Wheel, Lower NO.2
2004-06 → 2006-03
ended
|
MCV30 30G | ¥320 | |
| 45186-33060-E0 note |
Cover, Steering Wheel, Lower NO.2
2004-06 → 2006-03
ended
|
MCV30 30G | ¥320 | |
| 45188 — Screw, Steering Wheel Pad Attaching | ||||
| 90148-60007 note |
Screw, Steering Wheel Pad Attaching
2001-07 → 2004-06
ended
|
MCV30 | ¥130 | |
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2004-06 → —
|
MCV30 | ¥160 | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
2001-07 → 2004-06
ended
|
MCV30 | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2004-06 → —
|
MCV30 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
