Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

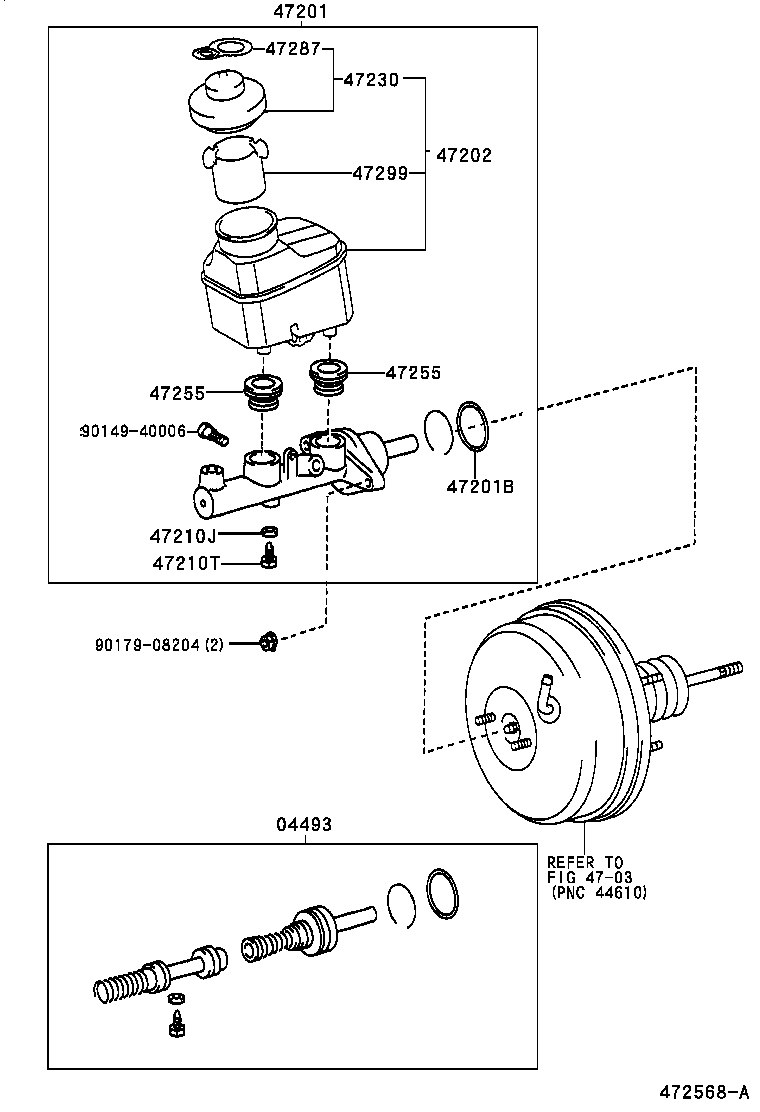

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04493 — Cylinder Kit, Brake Master | ||||
| 04493-33110 |
Cylinder Kit, Brake Master
2004-06 → —
|
MCV30 | ¥5,200 | |
| 04493-33110 |
Cylinder Kit, Brake Master
2001-07 → 2004-06
ended
|
MCV30 | ¥5,200 | |
| 04493-33120 note |
Cylinder Kit, Brake Master
2001-07 → 2004-06
ended
|
MCV30 30G | ¥5,200 | |
| 04493-33120 note |
Cylinder Kit, Brake Master
2002-04 → 2004-06
ended
|
MCV30 30X | ¥5,200 | |
| 04493-33120 note |
Cylinder Kit, Brake Master
2004-06 → —
|
MCV30 | ¥5,200 | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-33370 |
Cylinder Sub-assy, Brake Master
2001-07 → 2004-06
ended
|
MCV30 | ¥29,000 | |
| 47201-33420 note |
Cylinder Sub-assy, Brake Master
2001-07 → 2004-06
ended
|
MCV30 30G | ¥29,000 | |
| 47201-33420 note |
Cylinder Sub-assy, Brake Master
2002-04 → 2004-06
ended
|
MCV30 30X | ¥29,000 | |
| 47201-33370 |
Cylinder Sub-assy, Brake Master
2004-06 → —
|
MCV30 | ¥29,000 | |
| 47201-33420 note |
Cylinder Sub-assy, Brake Master
2004-06 → —
|
MCV30 | ¥29,000 | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2001-07 → 2004-06
ended
|
MCV30 | ¥200 | |
| 90029-20059 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2004-06 → —
|
MCV30 | ¥200 | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-33160 |
Reservoir Sub-assy, Brake Master Cylinder
2001-07 → 2004-06
ended
|
MCV30 | ¥9,800 | |
| 47220-33210 note |
Reservoir Sub-assy, Brake Master Cylinder
2001-07 → 2004-06
ended
|
MCV30 30G | ¥9,800 | |
| 47220-33210 note |
Reservoir Sub-assy, Brake Master Cylinder
2002-04 → 2004-06
ended
|
MCV30 30X | ¥9,800 | |
| 47220-33160 |
Reservoir Sub-assy, Brake Master Cylinder
2004-06 → —
|
MCV30 | ¥9,800 | |
| 47220-33210 note |
Reservoir Sub-assy, Brake Master Cylinder
2004-06 → —
|
MCV30 | ¥9,800 | |
| 47210J — Gasket(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
Gasket(FOR MASTER CYLINDER)
2001-12 → 2004-06
ended
|
MCV30 | ¥160 | |
| 90430-06104 |
Gasket(FOR MASTER CYLINDER)
2001-07 → 2001-12
ended
|
MCV30 | ¥100 | |
| 90029-43001 |
Gasket(FOR MASTER CYLINDER)
2004-06 → —
|
MCV30 | ¥160 | |
| 47210T — Bolt(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
Bolt(FOR BRAKE MASTER CYLINDER)
2001-07 → 2004-06
ended
|
MCV30 | ¥160 | |
| 90109-06077 |
Bolt(FOR BRAKE MASTER CYLINDER)
2004-06 → —
|
MCV30 | ¥160 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2001-07 → 2004-06
ended
|
MCV30 | ¥530 | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2004-06 → —
|
MCV30 | ¥530 | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2001-07 → 2004-06
ended
|
MCV30 | ¥360 | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2004-06 → —
|
MCV30 | ¥360 | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-20010 |
Label, Brake Fluid Information
2001-07 → 2004-06
ended
|
MCV30 | ¥130 | |
| 47287-20010 |
Label, Brake Fluid Information
2004-06 → —
|
MCV30 | ¥130 | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2001-07 → 2004-06
ended
|
MCV30 | ¥140 | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2004-06 → —
|
MCV30 | ¥140 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
