Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10

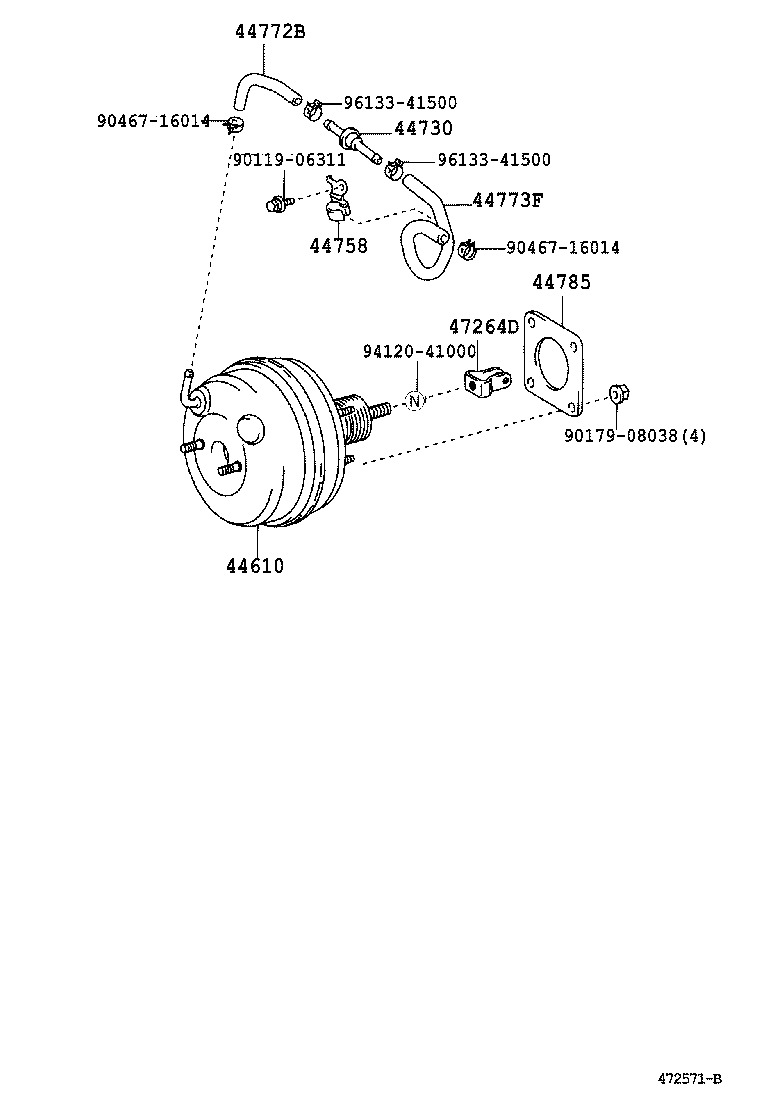

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
44610 — Booster Assy, Brake
44610-33730	Booster Assy, Brake 2001-07 → 2004-06 ended	MCV30	¥60,000
44610-33730	Booster Assy, Brake 2004-06 → —	MCV30	¥60,000
44730 — Valve Assy, Vacuum Check(FOR BRAKE)
44730-10010	Valve Assy, Vacuum Check(FOR BRAKE) 2001-07 → 2004-06 ended	MCV30	¥1,820
44730-10010	Valve Assy, Vacuum Check(FOR BRAKE) 2004-06 → —	MCV30	¥1,820
44758 — Bracket, Vacuum Check Valve
44758-33110	Bracket, Vacuum Check Valve 2001-07 → 2004-06 ended	MCV30	¥820
44758-33110	Bracket, Vacuum Check Valve 2004-06 → —	MCV30	¥820
44772B — Hose, Check Valve TO Brake Booster
44772-33110	Hose, Check Valve TO Brake Booster 2001-07 → 2004-06 ended	MCV30	¥750
44772-33110	Hose, Check Valve TO Brake Booster 2004-06 → —	MCV30	¥750
44773F — Hose, Union TO Check Valve
44773-33130	Hose, Union TO Check Valve 2001-07 → 2004-06 ended	MCV30	¥2,170
44773-33130	Hose, Union TO Check Valve 2004-06 → —	MCV30	¥2,170
44785 — Gasket, Brake Booster
44785-20020	Gasket, Brake Booster 2001-07 → 2004-06 ended	MCV30	¥320
44785-20020	Gasket, Brake Booster 2004-06 → —	MCV30	¥320
47264D — Clevis, Brake Master Cylinder Push Rod
47264-12060	Clevis, Brake Master Cylinder Push Rod 2004-02 → 2004-06 ended	MCV30	¥250
47264-63010	Clevis, Brake Master Cylinder Push Rod 2001-07 → 2004-02 ended	MCV30	¥250
47264-12060	Clevis, Brake Master Cylinder Push Rod 2004-06 → —	MCV30	¥250

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
