Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

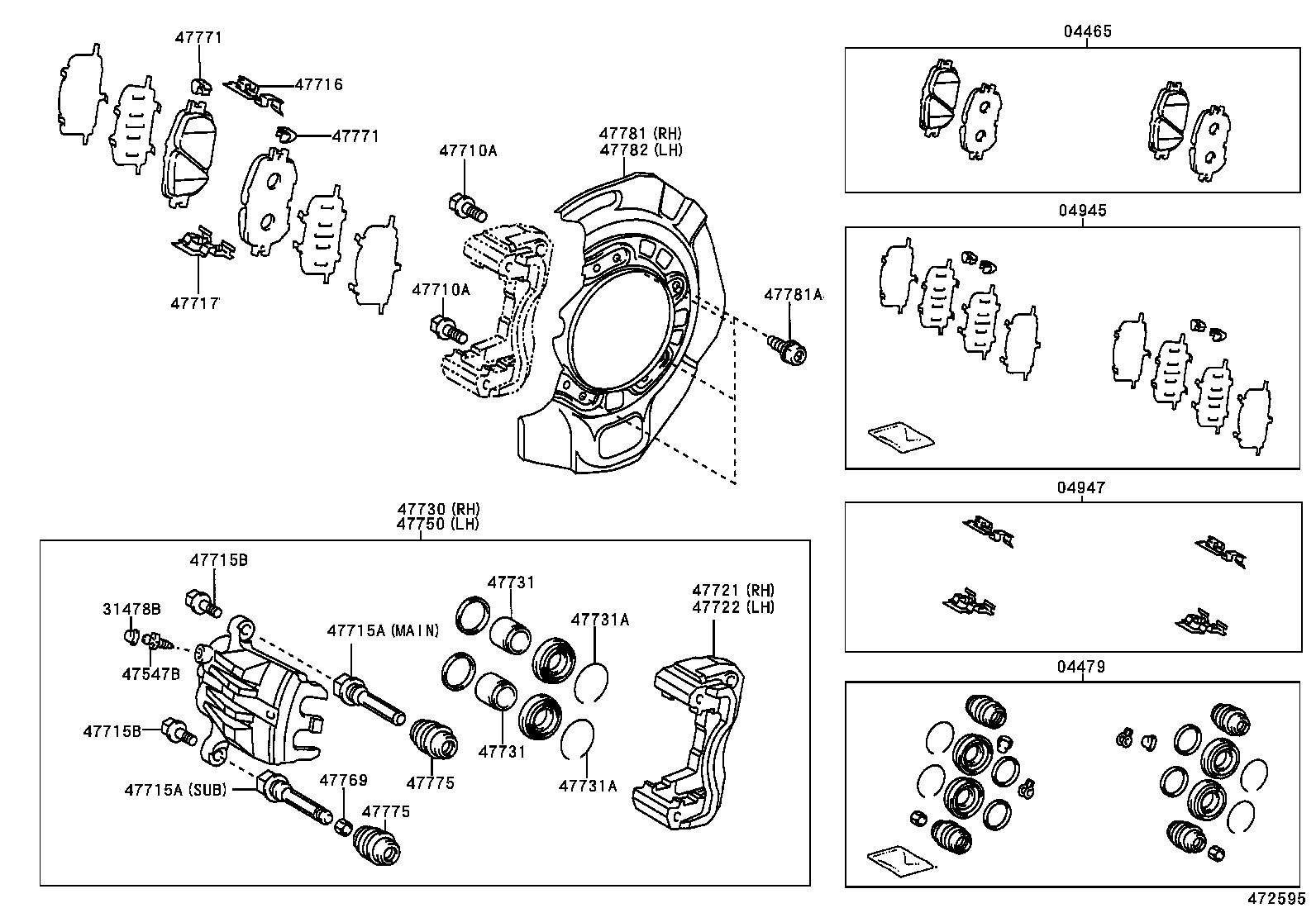

Exploded illustration 472595 04465 — PAD KIT, DISC BRAKE, FRONT (3 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (2 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 04945 — SHIM KIT, ANTI SQUEAL, FRONT (2 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 47781A — BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (2 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (2 parts) 04947 — FITTING KIT, DISC BRAKE, FRONT (2 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (2 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (2 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (2 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (2 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (2 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (2 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (4 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (2 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (2 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (4 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts)
472595 · 30 callouts Full size ↗
49 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-33270 note Pad Kit, Disc Brake, Front
2001-07 → 2003-02 ended
MCV30 ¥11,400
04465-33280 note Pad Kit, Disc Brake, Front
2003-02 → 2004-06 ended
MCV30 ¥13,200
04465-33280 note Pad Kit, Disc Brake, Front
2004-06 → —
MCV30 ¥13,200
04479 — Cylinder Kit, Disc Brake, Front
04479-33170 Cylinder Kit, Disc Brake, Front
2001-07 → 2004-06 ended
MCV30 ¥3,290
04479-33170 Cylinder Kit, Disc Brake, Front
2004-06 → —
MCV30 ¥3,290
04945 — Shim Kit, Anti Squeal, Front
04945-33070 Shim Kit, Anti Squeal, Front
2001-07 → 2004-06 ended
MCV30 ¥2,000
04945-33070 Shim Kit, Anti Squeal, Front
2004-06 → —
MCV30 ¥2,000
04947 — Fitting Kit, Disc Brake, Front
04947-33180 Fitting Kit, Disc Brake, Front
2001-07 → 2004-06 ended
MCV30 ¥1,670
04947-33180 Fitting Kit, Disc Brake, Front
2004-06 → —
MCV30 ¥1,670
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥160
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2004-06 → 2006-03 ended
MCV30 ¥160
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥200
47547-21030 Plug, Bleeder(FOR FRONT DISC BRAKE)
2004-06 → 2006-03 ended
MCV30 ¥200
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2001-07 → 2004-07 ended
MCV30 ¥160
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2004-06 → 2006-03 ended
MCV30 ¥160
47715A — Pin, Front Disc Brake Cylinder Slide
47715-22070 note Pin, Front Disc Brake Cylinder Slide
2001-07 → 2004-06 ended
MCV30 ¥620
47715-33060 note Pin, Front Disc Brake Cylinder Slide
2001-07 → 2004-06 ended
MCV30 ¥840
47715-22070 note Pin, Front Disc Brake Cylinder Slide
2004-06 → 2006-03 ended
MCV30 ¥620
47715-33060 note Pin, Front Disc Brake Cylinder Slide
2004-06 → 2006-03 ended
MCV30 ¥840
47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2001-07 → 2004-06 ended
MCV30 ¥90
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2004-06 → 2006-03 ended
MCV30 ¥90
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-33130 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥440
47716-33130 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2004-06 → —
MCV30 ¥440
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47717-33100 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥440
47717-33100 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2004-06 → —
MCV30 ¥440
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-33160 Mounting, Front Disc Brake Cylinder, RH
2001-07 → 2004-07 ended
MCV30 ¥8,400
47721-33160 Mounting, Front Disc Brake Cylinder, RH
2004-06 → —
MCV30 ¥8,400
47722 — Mounting, Front Disc Brake Cylinder, LH
47721-33160 Mounting, Front Disc Brake Cylinder, LH
2001-07 → 2004-07 ended
MCV30 ¥8,400
47721-33160 Mounting, Front Disc Brake Cylinder, LH
2004-06 → —
MCV30 ¥8,400
47730 — Cylinder Assy, Front Disc Brake, RH
47730-33220 Cylinder Assy, Front Disc Brake, RH
2001-07 → 2004-06 ended
MCV30 ¥53,800
47730-33220 Cylinder Assy, Front Disc Brake, RH
2004-06 → —
MCV30 ¥53,800
47731 — Piston, Front Disc Brake
47731-33100 Piston, Front Disc Brake
2001-07 → 2004-06 ended
MCV30 ¥2,130
47731-33100 Piston, Front Disc Brake
2004-06 → 2006-03 ended
MCV30 ¥2,130
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90520-51002 Ring, Set(FOR FRONT DISC BRAKE PISTON)
2001-07 → 2004-06 ended
MCV30 ¥100
90520-51002 Ring, Set(FOR FRONT DISC BRAKE PISTON)
2004-06 → 2006-03 ended
MCV30 ¥100
47750 — Cylinder Assy, Disc Brake, LH
47750-33220 Cylinder Assy, Disc Brake, LH
2001-07 → 2004-06 ended
MCV30 ¥53,800
47750-33220 Cylinder Assy, Disc Brake, LH
2004-06 → —
MCV30 ¥53,800
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥50
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2004-06 → 2006-03 ended
MCV30 ¥50
47771 — Plate, Pad Wear Indicator, NO.1
47771-33020 Plate, Pad Wear Indicator, NO.1
2001-07 → 2004-06 ended
MCV30 ¥240
47771-33020 Plate, Pad Wear Indicator, NO.1
2004-06 → —
MCV30 ¥240
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-30070 Boot, Bush Dust(FOR FRONT DISC BRAKE)
2001-07 → 2004-06 ended
MCV30 ¥840
47775-30070 Boot, Bush Dust(FOR FRONT DISC BRAKE)
2004-06 → 2006-03 ended
MCV30 ¥840
47781 — Cover, Disc Brake Dust, Front RH
47781-48020 Cover, Disc Brake Dust, Front RH
2001-07 → 2004-06 ended
MCV30 ¥1,680
47781-48020 Cover, Disc Brake Dust, Front RH
2004-06 → 2006-03 ended
MCV30 ¥1,680
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
2001-07 → 2004-06 ended
MCV30 ¥90
90119-06227 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
2004-06 → 2006-03 ended
MCV30 ¥90
47782 — Cover, Disc Brake Dust, Front LH
47782-48020 Cover, Disc Brake Dust, Front LH
2001-07 → 2004-06 ended
MCV30 ¥1,680
47782-48020 Cover, Disc Brake Dust, Front LH
2004-06 → 2006-03 ended
MCV30 ¥1,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
