Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

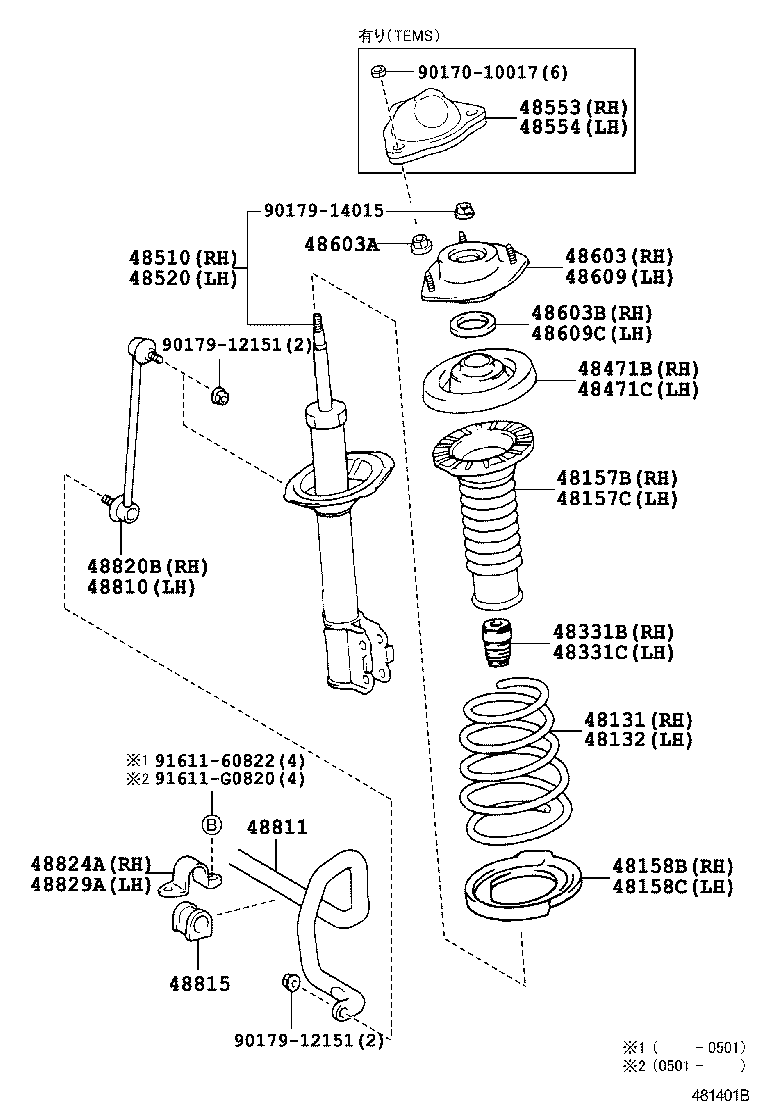

Exploded illustration 481401B 9017010017 — not listed in this catalogue 48553 — CAP, SHOCK ABSORBER, UPPER (2 parts) 48554 — CAP, FRONT SHOCK ABSORBER, LH (2 parts) 48603A — NUT(FOR FRONT SUSPENSION SUPPORT) (2 parts) 9017914015 — not listed in this catalogue 48510 — ABSORBER ASSY, SHOCK, FRONT RH (6 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (6 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 9017912151 — not listed in this catalogue 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (2 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (2 parts) 48603B — BEARING(FOR FRONT SUSPENSION SUPPORT RH) (3 parts) 48609C — BEARING(FOR FRONT SUSPENSION SUPPORT LH) (3 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (3 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (3 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (4 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (4 parts) 48331B — BUMPER, FRONT SPRING, RH (4 parts) 48331C — BUMPER, FRONT SPRING, LH (4 parts) 48131 — SPRING, FRONT COIL, RH (5 parts) 48132 — SPRING, FRONT COIL, LH (5 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (4 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (4 parts) 9017912151 — not listed in this catalogue 48811 — BAR, STABILIZER, FRONT (2 parts) 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (2 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 9161160822 — not listed in this catalogue 91611G0820 — not listed in this catalogue
481401B · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-3T350 Spring, Front Coil, RH
2001-07 → 2003-07 ended
MCV30 ¥11,300
48131-3T351 Spring, Front Coil, RH
2003-07 → 2004-03 ended
MCV30 ¥11,400
48131-3T352 Spring, Front Coil, RH
2004-03 → 2004-06 ended
MCV30 ¥11,400
48131-3T351 Spring, Front Coil, RH
2004-06 → —
MCV30 30G ¥11,400
48131-3T351 Spring, Front Coil, RH
2004-06 → —
MCV30 30X ¥11,400
48132 — Spring, Front Coil, LH
48131-3T350 Spring, Front Coil, LH
2001-07 → 2003-07 ended
MCV30 ¥11,300
48131-3T351 Spring, Front Coil, LH
2003-07 → 2004-03 ended
MCV30 ¥11,400
48131-3T352 Spring, Front Coil, LH
2004-03 → 2004-06 ended
MCV30 ¥11,400
48131-3T351 Spring, Front Coil, LH
2004-06 → —
MCV30 30G ¥11,400
48131-3T351 Spring, Front Coil, LH
2004-06 → —
MCV30 30X ¥11,400
48157B — Insulator, Front Coil Spring, Upper RH
48157-33060 Insulator, Front Coil Spring, Upper RH
2001-07 → 2003-07 ended
MCV30 ¥1,840
48157-33061 Insulator, Front Coil Spring, Upper RH
2003-07 → 2003-10 ended
MCV30 ¥1,700
48157-33062 Insulator, Front Coil Spring, Upper RH
2003-10 → 2004-06 ended
MCV30 ¥1,710
48157-33062 Insulator, Front Coil Spring, Upper RH
2004-06 → —
MCV30 ¥1,710
48157C — Insulator, Front Coil Spring, Upper LH
48157-33060 Insulator, Front Coil Spring, Upper LH
2001-07 → 2003-07 ended
MCV30 ¥1,840
48157-33061 Insulator, Front Coil Spring, Upper LH
2003-07 → 2003-10 ended
MCV30 ¥1,700
48157-33062 Insulator, Front Coil Spring, Upper LH
2003-10 → 2004-06 ended
MCV30 ¥1,710
48157-33062 Insulator, Front Coil Spring, Upper LH
2004-06 → —
MCV30 ¥1,710
48158B — Insulator, Front Coil Spring, Lower RH
48158-33030 Insulator, Front Coil Spring, Lower RH
2001-07 → 2003-07 ended
MCV30 ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower RH
2003-07 → 2004-06 ended
MCV30 ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower RH
2004-06 → —
MCV30 30X ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower RH
2004-06 → —
MCV30 30G ¥1,550
48158C — Insulator, Front Coil Spring, Lower LH
48158-33030 Insulator, Front Coil Spring, Lower LH
2001-07 → 2003-07 ended
MCV30 ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower LH
2003-07 → 2004-06 ended
MCV30 ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower LH
2004-06 → —
MCV30 30G ¥1,550
48158-33031 Insulator, Front Coil Spring, Lower LH
2004-06 → —
MCV30 30X ¥1,550
48331B — Bumper, Front Spring, RH
48331-33030 Bumper, Front Spring, RH
2001-07 → 2004-03 ended
MCV30 ¥870
48331-33031 Bumper, Front Spring, RH
2004-03 → 2004-06 ended
MCV30 ¥880
48331-33031 Bumper, Front Spring, RH
2004-06 → 2004-12 ended
MCV30 ¥880
48331-33032 Bumper, Front Spring, RH
2005-01 → —
MCV30 ¥870
48331C — Bumper, Front Spring, LH
48331-33030 Bumper, Front Spring, LH
2001-07 → 2004-03 ended
MCV30 ¥870
48331-33031 Bumper, Front Spring, LH
2004-03 → 2004-06 ended
MCV30 ¥880
48331-33031 Bumper, Front Spring, LH
2004-06 → 2004-12 ended
MCV30 ¥880
48331-33032 Bumper, Front Spring, LH
2005-01 → —
MCV30 ¥870
48471B — Seat, Front Coil Spring, Upper RH
48471-41010 Seat, Front Coil Spring, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥2,370
48471-41010 Seat, Front Coil Spring, Upper RH
2004-06 → —
MCV30 30G ¥2,370
48471-41010 Seat, Front Coil Spring, Upper RH
2004-06 → —
MCV30 30X ¥2,370
48471C — Seat, Front Coil Spring, Upper LH
48471-41010 Seat, Front Coil Spring, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥2,370
48471-41010 Seat, Front Coil Spring, Upper LH
2004-06 → —
MCV30 30G ¥2,370
48471-41010 Seat, Front Coil Spring, Upper LH
2004-06 → —
MCV30 30X ¥2,370
48510 — Absorber Assy, Shock, Front RH
48510-80035 note Absorber Assy, Shock, Front RH
2001-07 → 2003-07 ended
MCV30 30G ¥71,300
48510-80037 note Absorber Assy, Shock, Front RH
2001-07 → 2003-07 ended
MCV30 30X ¥25,500
48510-80108 note Absorber Assy, Shock, Front RH
2003-07 → 2004-06 ended
MCV30 30X ¥24,600
48510-80115 note Absorber Assy, Shock, Front RH
2003-07 → 2004-06 ended
MCV30 30G ¥71,300
48510-80115 note Absorber Assy, Shock, Front RH
2004-06 → —
MCV30 30G ¥71,300
48510-80163 note Absorber Assy, Shock, Front RH
2004-06 → —
MCV30 30X ¥24,600
48520 — Absorber Assy, Shock, Front LH
48520-39415 note Absorber Assy, Shock, Front LH
2001-07 → 2003-07 ended
MCV30 30G ¥71,300
48520-39435 note Absorber Assy, Shock, Front LH
2001-07 → 2003-07 ended
MCV30 30X ¥25,500
48520-39545 note Absorber Assy, Shock, Front LH
2003-07 → 2004-06 ended
MCV30 30X ¥24,600
48520-39555 note Absorber Assy, Shock, Front LH
2003-07 → 2004-06 ended
MCV30 30G ¥71,300
48520-39555 note Absorber Assy, Shock, Front LH
2004-06 → —
MCV30 30G ¥71,300
48520-80013 note Absorber Assy, Shock, Front LH
2004-06 → —
MCV30 30X ¥24,600
48553 — Cap, Shock Absorber, Upper
48553-33040 Cap, Shock Absorber, Upper
2001-07 → 2004-06 ended
MCV30 30G ¥1,540
48553-33040 Cap, Shock Absorber, Upper
2004-06 → —
MCV30 30G ¥1,540
48554 — Cap, Front Shock Absorber, LH
48554-33040 Cap, Front Shock Absorber, LH
2001-07 → 2004-06 ended
MCV30 30G ¥1,540
48554-33040 Cap, Front Shock Absorber, LH
2004-06 → —
MCV30 30G ¥1,540
48603 — Support Sub-assy, Front Suspension, RH
48609-33150 Support Sub-assy, Front Suspension, RH
2001-07 → 2004-06 ended
MCV30 ¥4,910
48609-33150 Support Sub-assy, Front Suspension, RH
2004-06 → —
MCV30 ¥4,910
48603A — Nut(FOR FRONT SUSPENSION SUPPORT)
90178-10017 Nut(FOR FRONT SUSPENSION SUPPORT)
2001-07 → 2004-06 ended
MCV30 ¥140
90178-10017 Nut(FOR FRONT SUSPENSION SUPPORT)
2004-06 → —
MCV30 ¥140
48603B — Bearing(FOR FRONT SUSPENSION SUPPORT RH)
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT RH)
2001-07 → 2004-06 ended
MCV30 ¥2,110
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT RH)
2004-06 → —
MCV30 30X ¥2,110
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT RH)
2004-06 → —
MCV30 30G ¥2,110
48609 — Support Sub-assy, Front Suspension, LH
48609-33150 Support Sub-assy, Front Suspension, LH
2001-07 → 2004-06 ended
MCV30 ¥4,910
48609-33150 Support Sub-assy, Front Suspension, LH
2004-06 → —
MCV30 ¥4,910
48609C — Bearing(FOR FRONT SUSPENSION SUPPORT LH)
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT LH)
2001-07 → 2004-06 ended
MCV30 ¥2,110
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT LH)
2004-06 → —
MCV30 30G ¥2,110
90903-63014 Bearing(FOR FRONT SUSPENSION SUPPORT LH)
2004-06 → —
MCV30 30X ¥2,110
48810 — Link Assy, Front Stabilizer, LH
48820-28050 Link Assy, Front Stabilizer, LH
2001-07 → 2004-06 ended
MCV30 ¥3,680
48820-28050 Link Assy, Front Stabilizer, LH
2004-06 → —
MCV30 ¥3,680
48811 — Bar, Stabilizer, Front
48811-33140 Bar, Stabilizer, Front
2001-07 → 2004-06 ended
MCV30 ¥13,300
48811-33140 Bar, Stabilizer, Front
2004-06 → —
MCV30 ¥13,300
48815 — Bush, Front Stabilizer Bar, NO.1
48815-33100 Bush, Front Stabilizer Bar, NO.1
2001-07 → 2004-06 ended
MCV30 ¥670
48815-33100 Bush, Front Stabilizer Bar, NO.1
2004-06 → —
MCV30 ¥670
48820B — Link Assy, Front Stabilizer, RH
48820-28050 Link Assy, Front Stabilizer, RH
2001-07 → 2004-06 ended
MCV30 ¥3,680
48820-28050 Link Assy, Front Stabilizer, RH
2004-06 → —
MCV30 ¥3,680
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2001-07 → 2004-06 ended
MCV30 ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2004-06 → —
MCV30 ¥930
48829A — Bracket, Front Stabilizer, NO.1 LH
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2001-07 → 2004-06 ended
MCV30 ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2004-06 → —
MCV30 ¥930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
