Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

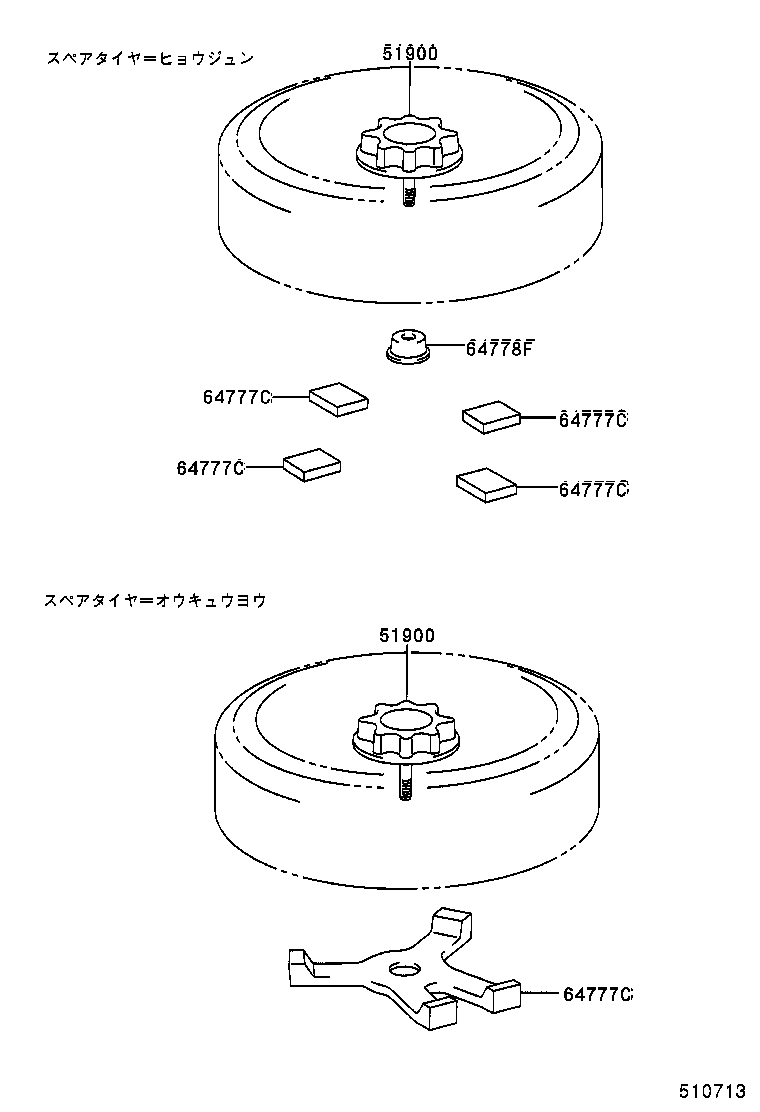

Exploded illustration 510713 51900 — CARRIER ASSY, SPARE WHEEL (3 parts) 64778F — PROTECTOR, SPARE WHEEL (1 parts) 64777C — CUSHION, SPARE WHEEL (4 parts) 64777C — CUSHION, SPARE WHEEL (4 parts) 64777C — CUSHION, SPARE WHEEL (4 parts) 64777C — CUSHION, SPARE WHEEL (4 parts) 51900 — CARRIER ASSY, SPARE WHEEL (3 parts) 64777C — CUSHION, SPARE WHEEL (4 parts)
510713 · 8 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
51900 — Carrier Assy, Spare Wheel
51931-21030 note Carrier Assy, Spare Wheel
2001-07 → 2004-06 ended
MCV30 ¥700
51931-22040 note Carrier Assy, Spare Wheel
2001-07 → 2004-06 ended
MCV30 ¥1,020
51931-22040 note Carrier Assy, Spare Wheel
2004-06 → —
MCV30 ¥1,020
64777C — Cushion, Spare Wheel
64777-22060 note Cushion, Spare Wheel
2001-07 → 2003-04 ended
MCV30 ¥1,490
64777-33020 note Cushion, Spare Wheel
2001-07 → 2004-06 ended
MCV30 ¥1,220
64778-32030 note Cushion, Spare Wheel
2003-04 → 2004-06 ended
MCV30 ¥380
64777-33020 note Cushion, Spare Wheel
2004-06 → —
MCV30 ¥1,220
64778F — Protector, Spare Wheel
64778-33030 Protector, Spare Wheel
2001-07 → 2004-06 ended
MCV30 ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
