Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

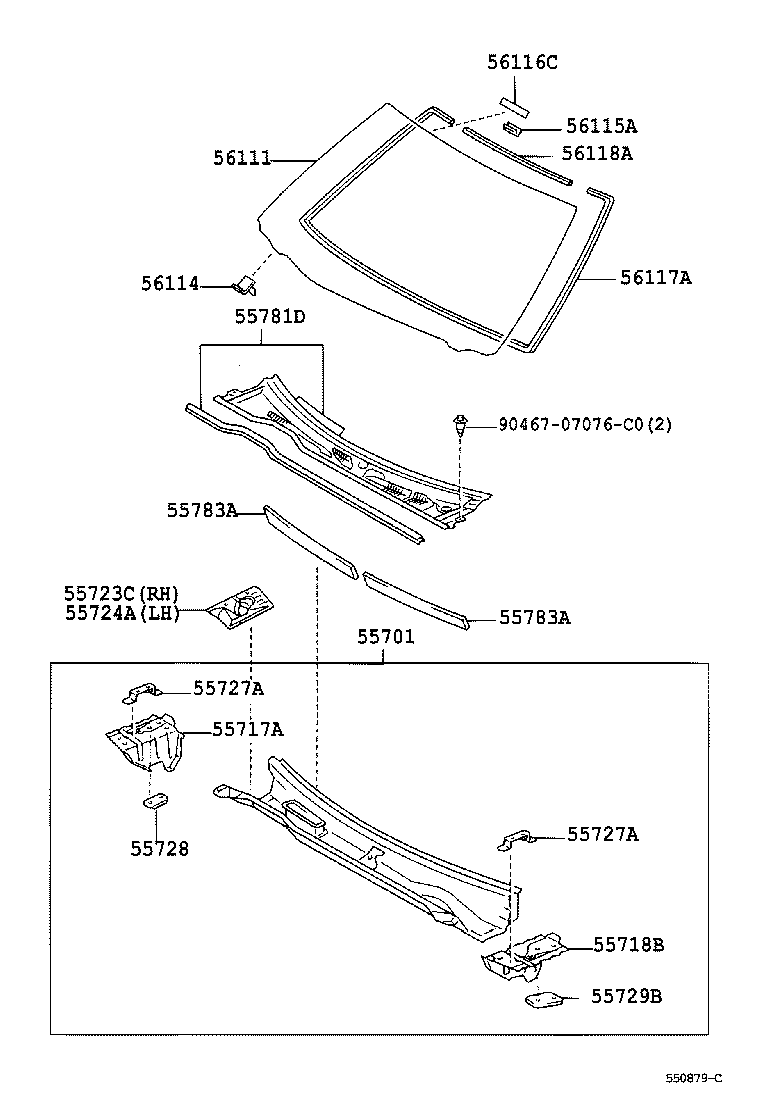

Exploded illustration 550879C 55781D — LOUVER, COWL TOP VENTILATOR, RH (2 parts) 9046707076C0 — not listed in this catalogue 56111 — GLASS, WINDSHIELD (4 parts) 56114 — RETAINER, WINDSHIELD GLASS (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56118A — DAM, WINDOW GLASS ADHESIVE, NO.2 (2 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (2 parts) 55724A — REINFORCEMENT, COWL TOP SIDE, LH (2 parts) 55783A — PAD, COWL TOP SILENCER (2 parts) 55727A — RETAINER, FRONT PANEL UPPER REINFORCEMENT (2 parts) 55718B — PANEL, COWL TOP SIDE, INNER LH (2 parts) 55729B — REINFORCEMENT, HOOD STOPPER, LH (2 parts) 55728 — REINFORCEMENT, HOOD STOPPER, RH (2 parts) 55717A — PANEL, COWL TOP SIDE, INNER RH (3 parts) 55727A — RETAINER, FRONT PANEL UPPER REINFORCEMENT (2 parts) 55701 — PANEL SUB-ASSY, COWL (2 parts) 55783A — PAD, COWL TOP SILENCER (2 parts) 55723C — REINFORCEMENT, COWL TOP SIDE, RH (2 parts)
550879C · 18 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
55701 — Panel Sub-assy, Cowl
55700-33240 Panel Sub-assy, Cowl
2001-07 → 2004-06 ended
MCV30 ¥46,800
55700-33240 Panel Sub-assy, Cowl
2004-06 → 2006-03 ended
MCV30 ¥46,800
55717A — Panel, Cowl Top Side, Inner RH
55717-33030 Panel, Cowl Top Side, Inner RH
2001-07 → 2002-03 ended
MCV30 ¥3,510
55717-33031 Panel, Cowl Top Side, Inner RH
2002-03 → 2004-06 ended
MCV30 ¥3,520
55717-33031 Panel, Cowl Top Side, Inner RH
2004-06 → —
MCV30 ¥3,520
55718B — Panel, Cowl Top Side, Inner LH
55718-33030 Panel, Cowl Top Side, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,520
55718-33030 Panel, Cowl Top Side, Inner LH
2004-06 → —
MCV30 ¥3,520
55723C — Reinforcement, Cowl Top Side, RH
55723-33030 Reinforcement, Cowl Top Side, RH
2001-07 → 2004-06 ended
MCV30 ¥3,950
55723-33030 Reinforcement, Cowl Top Side, RH
2004-06 → 2006-03 ended
MCV30 ¥3,950
55724A — Reinforcement, Cowl Top Side, LH
55724-33030 Reinforcement, Cowl Top Side, LH
2001-07 → 2004-06 ended
MCV30 ¥3,950
55724-33030 Reinforcement, Cowl Top Side, LH
2004-06 → 2006-03 ended
MCV30 ¥3,950
55727A — Retainer, Front Panel Upper Reinforcement
55727-33030 Retainer, Front Panel Upper Reinforcement
2001-07 → 2004-06 ended
MCV30 ¥450
55727-33030 Retainer, Front Panel Upper Reinforcement
2004-06 → —
MCV30 ¥450
55728 — Reinforcement, Hood Stopper, RH
55728-33020 Reinforcement, Hood Stopper, RH
2001-07 → 2004-06 ended
MCV30 ¥620
55728-33020 Reinforcement, Hood Stopper, RH
2004-06 → —
MCV30 ¥620
55729B — Reinforcement, Hood Stopper, LH
55729-33020 Reinforcement, Hood Stopper, LH
2001-07 → 2004-06 ended
MCV30 ¥840
55729-33020 Reinforcement, Hood Stopper, LH
2004-06 → —
MCV30 ¥840
55781D — Louver, Cowl Top Ventilator, RH
55708-33060 Louver, Cowl Top Ventilator, RH
2001-07 → 2004-06 ended
MCV30 ¥16,100
55708-33060 Louver, Cowl Top Ventilator, RH
2004-06 → —
MCV30 ¥16,100
55783A — Pad, Cowl Top Silencer
55783-33050 Pad, Cowl Top Silencer
2001-07 → 2004-06 ended
MCV30 ¥2,230
55783-33050 Pad, Cowl Top Silencer
2004-06 → —
MCV30 ¥2,230
56111 — Glass, Windshield
56101-33510 note Glass, Windshield
2001-07 → 2004-06 ended
MCV30 ¥0
56101-33520 note Glass, Windshield
2001-07 → 2004-06 ended
MCV30 ¥0
56101-33510 note Glass, Windshield
2004-06 → —
MCV30 ¥0
56101-33520 note Glass, Windshield
2004-06 → —
MCV30 ¥0
56114 — Retainer, Windshield Glass
56114-22050 Retainer, Windshield Glass
2001-07 → 2004-06 ended
MCV30 ¥320
56114-22050 Retainer, Windshield Glass
2004-06 → —
MCV30 ¥320
56115A — Stopper, Windshield Glass, NO.1
56115-22010 Stopper, Windshield Glass, NO.1
2001-07 → 2004-06 ended
MCV30 ¥160
56115-22010 Stopper, Windshield Glass, NO.1
2004-06 → —
MCV30 ¥160
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2001-07 → 2004-06 ended
MCV30 ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2004-06 → —
MCV30 ¥120
56117A — Dam, Window Glass Adhesive
56117-33070 note Dam, Window Glass Adhesive
2001-07 → 2004-06 ended
MCV30 ¥1,480
56117-33070 note Dam, Window Glass Adhesive
2004-06 → —
MCV30 ¥1,480
56118A — Dam, Window Glass Adhesive, NO.2
56118-33060 note Dam, Window Glass Adhesive, NO.2
2001-07 → 2004-06 ended
MCV30 ¥610
56118-33060 note Dam, Window Glass Adhesive, NO.2
2004-06 → —
MCV30 ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
