Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

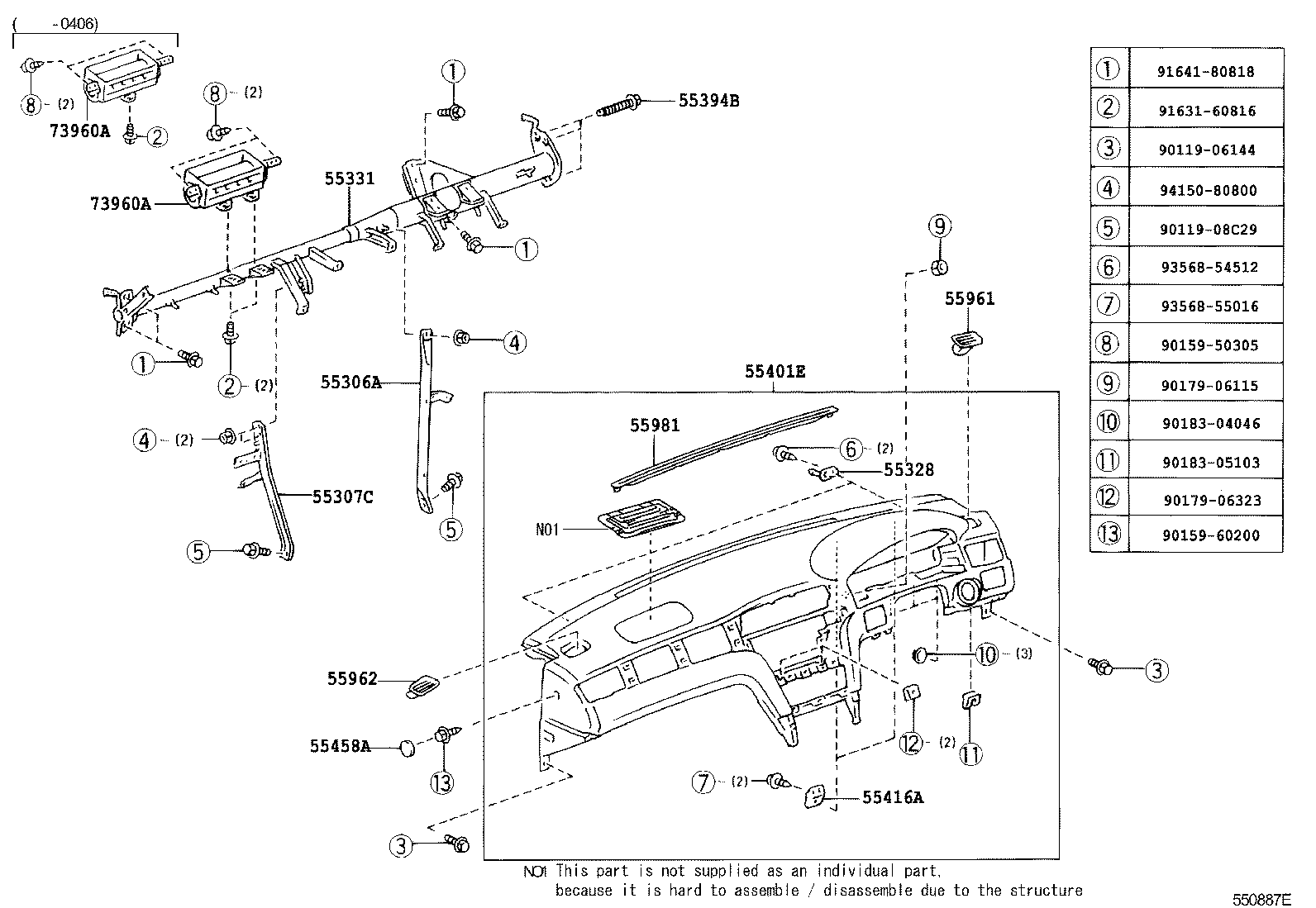

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55306A — Brace Sub-assy, Instrument Panel, NO.1 | ||||
| 55306-33090 |
Brace Sub-assy, Instrument Panel, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥4,250 | |
| 55306-33090 |
Brace Sub-assy, Instrument Panel, NO.1
2004-06 → —
|
MCV30 | ¥4,250 | |
| 55307C — Brace Sub-assy, Instrument Panel, NO.2 | ||||
| 55307-33150 |
Brace Sub-assy, Instrument Panel, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥2,110 | |
| 55307-33150 |
Brace Sub-assy, Instrument Panel, NO.2
2004-06 → —
|
MCV30 | ¥2,110 | |
| 55328 — Pin, Instrument Panel, NO.1 | ||||
| 55328-50010 |
Pin, Instrument Panel, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥230 | |
| 55328-30100 |
Pin, Instrument Panel, NO.1
2004-07 → —
|
MCV30 | ¥240 | |
| 55331 — Reinforcement, Instrument Panel | ||||
| 55330-33210 |
Reinforcement, Instrument Panel
2001-07 → 2004-06
ended
|
MCV30 | ¥21,900 | |
| 55330-33310 |
Reinforcement, Instrument Panel
2004-06 → —
|
MCV30 | ¥21,900 | |
| 55394B — Bolt, Instrument Panel | ||||
| 55394-33010 |
Bolt, Instrument Panel
2001-07 → 2004-06
ended
|
MCV30 | ¥200 | |
| 55394-33010 |
Bolt, Instrument Panel
2004-06 → —
|
MCV30 | ¥200 | |
| 55401E — Pad Sub-assy, Instrument Panel Safety | ||||
| 55401-33170-C0 note |
Pad Sub-assy, Instrument Panel Safety
2001-07 → 2004-06
ended
|
MCV30 | ¥86,100 | |
| 55401-33170-E0 note |
Pad Sub-assy, Instrument Panel Safety
2001-07 → 2004-06
ended
|
MCV30 | ¥86,100 | |
| 55401-33170-C0 note |
Pad Sub-assy, Instrument Panel Safety
2004-06 → 2006-03
ended
|
MCV30 | ¥86,100 | |
| 55401-33170-E1 note |
Pad Sub-assy, Instrument Panel Safety
2004-06 → 2006-03
ended
|
MCV30 | ¥86,100 | |
| 55416A — Retainer, Meter Hood, NO.1 | ||||
| 55416-33010 |
Retainer, Meter Hood, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥280 | |
| 55416-33010 |
Retainer, Meter Hood, NO.1
2004-06 → —
|
MCV30 | ¥280 | |
| 55458A — Cap, Instrument Panel Safety Pad | ||||
| 55458-33090-C0 note |
Cap, Instrument Panel Safety Pad
2001-07 → 2004-06
ended
|
MCV30 | ¥160 | |
| 55458-33090-E0 note |
Cap, Instrument Panel Safety Pad
2001-07 → 2004-06
ended
|
MCV30 | ¥160 | |
| 55458-33090-C0 note |
Cap, Instrument Panel Safety Pad
2004-06 → 2006-03
ended
|
MCV30 | ¥160 | |
| 55458-33090-E0 note |
Cap, Instrument Panel Safety Pad
2004-06 → 2006-03
ended
|
MCV30 | ¥160 | |
| 55961 — Nozzle, Side Defroster, NO.1 | ||||
| 55961-33070-C0 note |
Nozzle, Side Defroster, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥1,040 | |
| 55961-33070-E0 note |
Nozzle, Side Defroster, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥1,040 | |
| 55961-33070-C0 note |
Nozzle, Side Defroster, NO.1
2004-06 → 2006-03
ended
|
MCV30 | ¥1,040 | |
| 55961-33070-E0 note |
Nozzle, Side Defroster, NO.1
2004-06 → 2006-03
ended
|
MCV30 | ¥1,040 | |
| 55962 — Nozzle, Side Defroster, NO.2 | ||||
| 55962-33090-C0 note |
Nozzle, Side Defroster, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥1,040 | |
| 55962-33090-E0 note |
Nozzle, Side Defroster, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥1,040 | |
| 55962-33090-C0 note |
Nozzle, Side Defroster, NO.2
2004-06 → 2006-03
ended
|
MCV30 | ¥1,040 | |
| 55962-33090-E0 note |
Nozzle, Side Defroster, NO.2
2004-06 → 2006-03
ended
|
MCV30 | ¥1,040 | |
| 55981 — Garnish, Defroster Nozzle, NO.1 | ||||
| 55981-33100 |
Garnish, Defroster Nozzle, NO.1
2001-07 → 2004-06
ended
|
MCV30 | ¥3,400 | |
| 55981-33100 |
Garnish, Defroster Nozzle, NO.1
2004-06 → —
|
MCV30 | ¥3,400 | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-33040 |
Airbag Assy, Instrument Panel Passenger W/O Door
2001-07 → 2004-06
ended
|
MCV30 | ¥120,000 | |
| 73960-33080 |
Airbag Assy, Instrument Panel Passenger W/O Door
2004-06 → —
|
MCV30 | ¥120,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
