Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

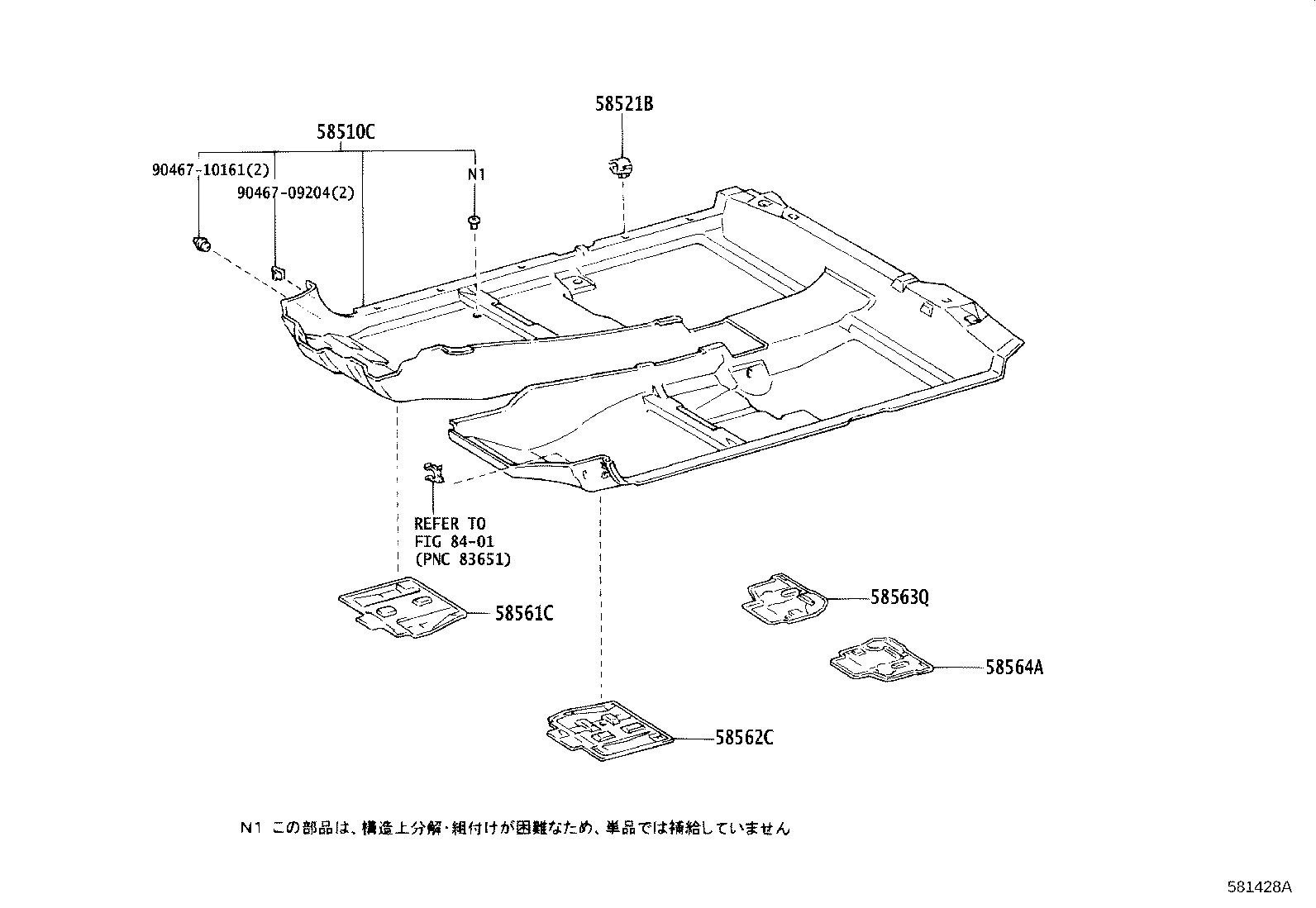

Exploded illustration 581428A 9046710161 — not listed in this catalogue 9046709204 — not listed in this catalogue 58510C — CARPET ASSY, FRONT FLOOR, FRONT (6 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (2 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (2 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (2 parts) 58562C — SILENCER, FRONT FLOOR, NO.2 (3 parts) 8401 — not listed in this catalogue
581428A · 6 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
58510C — Carpet Assy, Front Floor, Front
58510-33480-A0 note Carpet Assy, Front Floor, Front
2001-07 → 2004-01 ended
MCV30 ¥75,600
58510-33480-C0 note Carpet Assy, Front Floor, Front
2001-07 → 2003-09 ended
MCV30 ¥75,600
58510-33481-A0 note Carpet Assy, Front Floor, Front
2004-01 → 2004-06 ended
MCV30 ¥75,700
58510-33481-C0 note Carpet Assy, Front Floor, Front
2003-09 → 2004-06 ended
MCV30 ¥75,700
58510-33482-A2 note Carpet Assy, Front Floor, Front
2004-06 → 2006-03 ended
MCV30 ¥75,700
58510-33482-C0 note Carpet Assy, Front Floor, Front
2004-06 → 2006-03 ended
MCV30 ¥75,700
58521B — Hook, Floor Carpet
58521-33040 Hook, Floor Carpet
2001-07 → 2004-06 ended
MCV30 ¥900
58521-33040 Hook, Floor Carpet
2004-06 → —
MCV30 ¥900
58561C — Silencer, Front Floor, NO.1
58561-33030 Silencer, Front Floor, NO.1
2001-07 → 2004-06 ended
MCV30 ¥4,370
58561-33030 Silencer, Front Floor, NO.1
2004-06 → —
MCV30 ¥4,370
58562C — Silencer, Front Floor, NO.2
58562-33040 Silencer, Front Floor, NO.2
2001-07 → 2002-06 ended
MCV30 ¥4,360
58562-33041 Silencer, Front Floor, NO.2
2002-06 → 2004-06 ended
MCV30 ¥4,370
58562-33041 Silencer, Front Floor, NO.2
2004-06 → —
MCV30 ¥4,370
58563Q — Silencer, Front Floor, NO.3
58563-33020 Silencer, Front Floor, NO.3
2001-07 → 2004-06 ended
MCV30 ¥3,570
58563-33020 Silencer, Front Floor, NO.3
2004-06 → —
MCV30 ¥3,570
58564A — Silencer, Front Floor, NO.4
58564-33020 Silencer, Front Floor, NO.4
2001-07 → 2004-06 ended
MCV30 ¥3,860
58564-33020 Silencer, Front Floor, NO.4
2004-06 → —
MCV30 ¥3,860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
