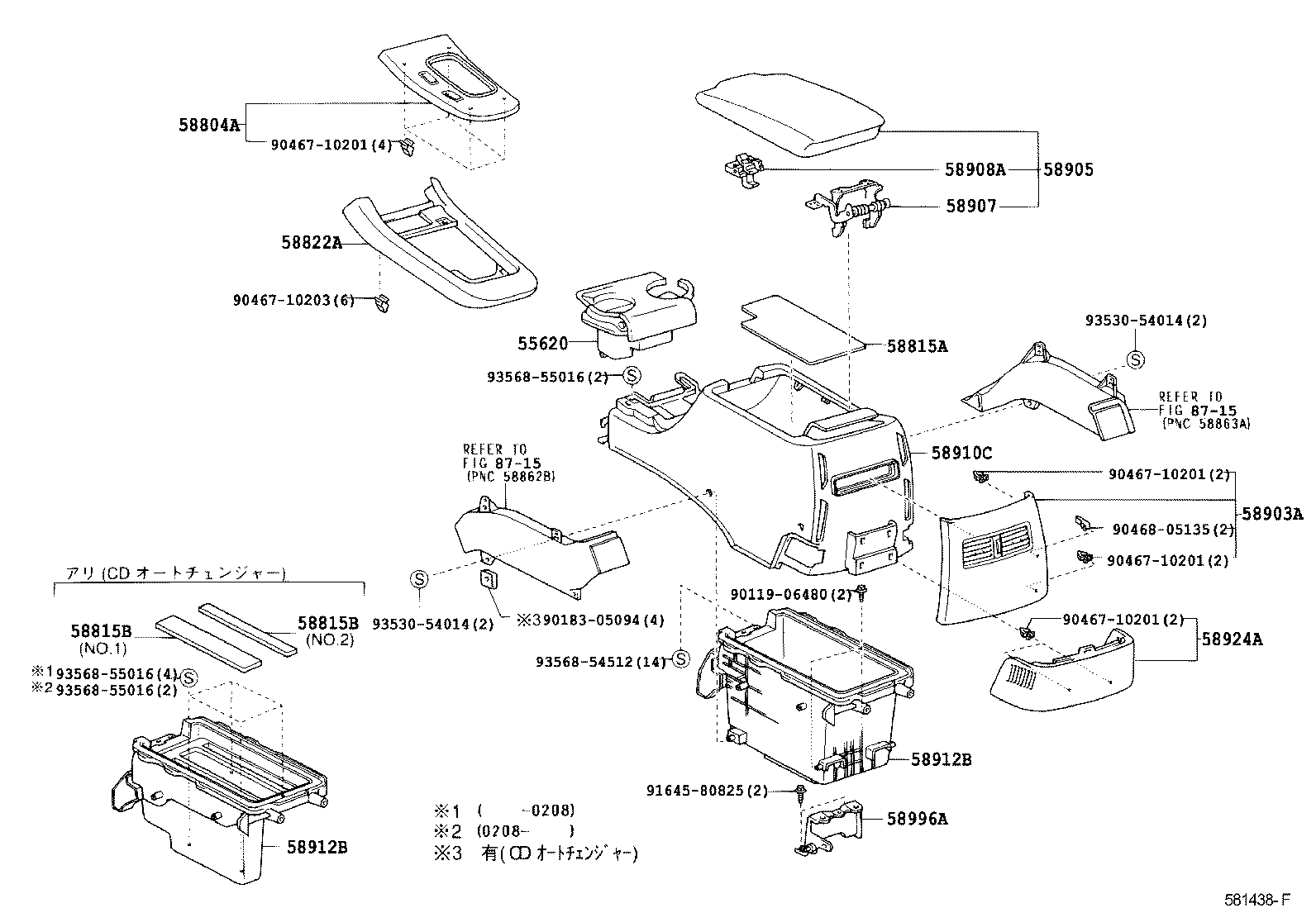

Exploded illustration 581438F 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (9 parts) 58822A — PANEL, CONSOLE, UPPER REAR (4 parts) 9046710201 — not listed in this catalogue 9046710203 — not listed in this catalogue 55620 — HOLDER ASSY, INSTRUMENT PANEL CUP (8 parts) 9356855016 — not listed in this catalogue 58912B — BOX, REAR CONSOLE, LOWER (4 parts) 9018305094 — not listed in this catalogue 9356854512 — not listed in this catalogue 9011906480 — not listed in this catalogue 58912B — BOX, REAR CONSOLE, LOWER (4 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (2 parts) 9164580825 — not listed in this catalogue 9046710201 — not listed in this catalogue 58910C — BOX ASSY, CONSOLE, REAR (4 parts) 58924A — PANEL, CONSOLE REAR END, NO.2 (4 parts) 9046710201 — not listed in this catalogue 9046805135 — not listed in this catalogue 9046710201 — not listed in this catalogue 58903A — PANEL SUB-ASSY, CONSOLE REAR END (4 parts) 8715 — not listed in this catalogue 9353054014 — not listed in this catalogue 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (10 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (4 parts) 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (4 parts) 58815A — CARPET, CONSOLE BOX (2 parts) 9353054014 — not listed in this catalogue 58815B — CARPET, CONSOLE BOX (4 parts) 9356855016 — not listed in this catalogue 58815B — CARPET, CONSOLE BOX (4 parts) 8715 — not listed in this catalogue 9356855016 — not listed in this catalogue
581438F · 15 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
55620 — Holder Assy, Instrument Panel Cup
55620-33130-A0 note Holder Assy, Instrument Panel Cup
2001-07 → 2002-06 ended
MCV30 ¥11,200
55620-33130-C0 note Holder Assy, Instrument Panel Cup
2001-07 → 2002-06 ended
MCV30 ¥11,200
55620-33131-A0 note Holder Assy, Instrument Panel Cup
2002-06 → 2003-08 ended
MCV30 ¥11,300
55620-33131-C0 note Holder Assy, Instrument Panel Cup
2002-06 → 2003-08 ended
MCV30 ¥11,300
55620-33132-A0 note Holder Assy, Instrument Panel Cup
2003-08 → 2004-06 ended
MCV30 ¥11,400
55620-33132-C0 note Holder Assy, Instrument Panel Cup
2003-08 → 2004-06 ended
MCV30 ¥11,400
55620-33132-A1 note Holder Assy, Instrument Panel Cup
2004-06 → 2006-03 ended
MCV30 ¥11,400
55620-33132-C0 note Holder Assy, Instrument Panel Cup
2004-06 → 2006-03 ended
MCV30 ¥11,400
58804A — Panel Sub-assy, Console, Upper
58804-33520 Panel Sub-assy, Console, Upper
2001-07 → 2004-06 ended
MCV30 30X ¥8,200
58804-33530 note Panel Sub-assy, Console, Upper
2001-07 → 2004-06 ended
MCV30 30G ¥8,200
58804-33540 note Panel Sub-assy, Console, Upper
2001-07 → 2004-06 ended
MCV30 30G ¥8,200
58804-33640-D0 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30X ¥8,200
58804-33640-E1 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30X ¥8,200
58804-33650-D0 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
58804-33650-E2 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
58804-33660-D0 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
58804-33660-E1 note Panel Sub-assy, Console, Upper
2004-06 → 2006-03 ended
MCV30 30G ¥8,200
58815A — Carpet, Console Box
58815-33080 Carpet, Console Box
2001-07 → 2004-06 ended
MCV30 ¥310
58815-33080 Carpet, Console Box
2004-06 → —
MCV30 ¥310
58815B — Carpet, Console Box
58815-33110 note Carpet, Console Box
2001-07 → 2004-06 ended
MCV30 ¥510
58815-33120 note Carpet, Console Box
2001-07 → 2004-06 ended
MCV30 ¥390
58815-33110 note Carpet, Console Box
2004-06 → —
MCV30 ¥510
58815-33120 note Carpet, Console Box
2004-06 → —
MCV30 ¥390
58822A — Panel, Console, Upper Rear
58822-33060-A0 note Panel, Console, Upper Rear
2001-07 → 2004-06 ended
MCV30 ¥10,300
58822-33060-C0 note Panel, Console, Upper Rear
2001-07 → 2004-06 ended
MCV30 ¥10,300
58822-33060-A1 note Panel, Console, Upper Rear
2004-06 → 2006-03 ended
MCV30 ¥10,300
58822-33060-C0 note Panel, Console, Upper Rear
2004-06 → 2006-03 ended
MCV30 ¥10,300
58903A — Panel Sub-assy, Console Rear End
58903-33050-A0 note Panel Sub-assy, Console Rear End
2001-07 → 2004-06 ended
MCV30 ¥11,500
58903-33050-C0 note Panel Sub-assy, Console Rear End
2001-07 → 2004-06 ended
MCV30 ¥11,500
58903-33050-A1 note Panel Sub-assy, Console Rear End
2004-06 → 2006-03 ended
MCV30 ¥11,500
58903-33050-C0 note Panel Sub-assy, Console Rear End
2004-06 → 2006-03 ended
MCV30 ¥11,500
58905 — Door Sub-assy, Console Compartment
58905-33240-A0 note Door Sub-assy, Console Compartment
2001-07 → 2004-06 ended
MCV30 ¥29,500
58905-33240-C0 note Door Sub-assy, Console Compartment
2001-07 → 2004-06 ended
MCV30 ¥29,500
58905-33260-A1 note Door Sub-assy, Console Compartment
2001-07 → 2004-01 ended
MCV30 ¥40,100
58905-33260-A3 note Door Sub-assy, Console Compartment
2004-01 → 2004-06 ended
MCV30 ¥40,100
58905-33260-C1 note Door Sub-assy, Console Compartment
2001-07 → 2004-01 ended
MCV30 ¥40,100
58905-33260-C2 note Door Sub-assy, Console Compartment
2004-01 → 2004-06 ended
MCV30 ¥40,100
58905-33240-A1 note Door Sub-assy, Console Compartment
2004-06 → 2006-03 ended
MCV30 ¥29,500
58905-33240-C0 note Door Sub-assy, Console Compartment
2004-06 → 2006-03 ended
MCV30 ¥29,500
58905-33260-A2 note Door Sub-assy, Console Compartment
2004-06 → 2006-03 ended
MCV30 ¥40,100
58905-33260-C2 note Door Sub-assy, Console Compartment
2004-06 → 2006-03 ended
MCV30 ¥40,100
58907 — Hinge Sub-assy, Console Compartment Door
58907-33070 note Hinge Sub-assy, Console Compartment Door
2001-07 → 2004-06 ended
MCV30 ¥2,840
58907-33080 Hinge Sub-assy, Console Compartment Door
2001-07 → 2004-06 ended
MCV30 ¥2,840
58907-33070 note Hinge Sub-assy, Console Compartment Door
2004-06 → —
MCV30 ¥2,840
58907-33080 Hinge Sub-assy, Console Compartment Door
2004-06 → —
MCV30 ¥2,840
58908A — Lock Sub-assy, Console Compartment Door
58908-32050 Lock Sub-assy, Console Compartment Door
2001-07 → 2004-06 ended
MCV30 ¥650
58908-32020 Lock Sub-assy, Console Compartment Door
2004-10 → 2004-11 ended
MCV30 ¥1,320
58908-32021 Lock Sub-assy, Console Compartment Door
2004-11 → —
MCV30 ¥1,320
58908-32050 Lock Sub-assy, Console Compartment Door
2004-06 → 2004-09 ended
MCV30 ¥650
58910C — Box Assy, Console, Rear
58911-33130-A0 note Box Assy, Console, Rear
2001-07 → 2004-06 ended
MCV30 ¥19,700
58911-33130-C0 note Box Assy, Console, Rear
2001-07 → 2004-06 ended
MCV30 ¥19,700
58911-33130-A1 note Box Assy, Console, Rear
2004-06 → 2006-03 ended
MCV30 ¥19,700
58911-33130-C0 note Box Assy, Console, Rear
2004-06 → 2006-03 ended
MCV30 ¥19,700
58912B — Box, Rear Console, Lower
58912-33120 Box, Rear Console, Lower
2001-07 → 2004-06 ended
MCV30 ¥16,700
58912-33150 note Box, Rear Console, Lower
2001-07 → 2004-06 ended
MCV30 ¥12,900
58912-33120 Box, Rear Console, Lower
2004-06 → —
MCV30 ¥16,700
58912-33150 note Box, Rear Console, Lower
2004-06 → —
MCV30 ¥12,900
58924A — Panel, Console Rear End, NO.2
58924-33020-A0 note Panel, Console Rear End, NO.2
2001-07 → 2004-06 ended
MCV30 ¥2,910
58924-33020-C0 note Panel, Console Rear End, NO.2
2001-07 → 2004-06 ended
MCV30 ¥2,910
58924-33020-A1 note Panel, Console Rear End, NO.2
2004-06 → 2006-03 ended
MCV30 ¥2,910
58924-33020-C0 note Panel, Console Rear End, NO.2
2004-06 → 2006-03 ended
MCV30 ¥2,910
58996A — Bracket, Console Box Mounting, NO.2
58996-33040 Bracket, Console Box Mounting, NO.2
2001-07 → 2004-06 ended
MCV30 ¥1,840
58996-33040 Bracket, Console Box Mounting, NO.2
2004-06 → —
MCV30 ¥1,840
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
