Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

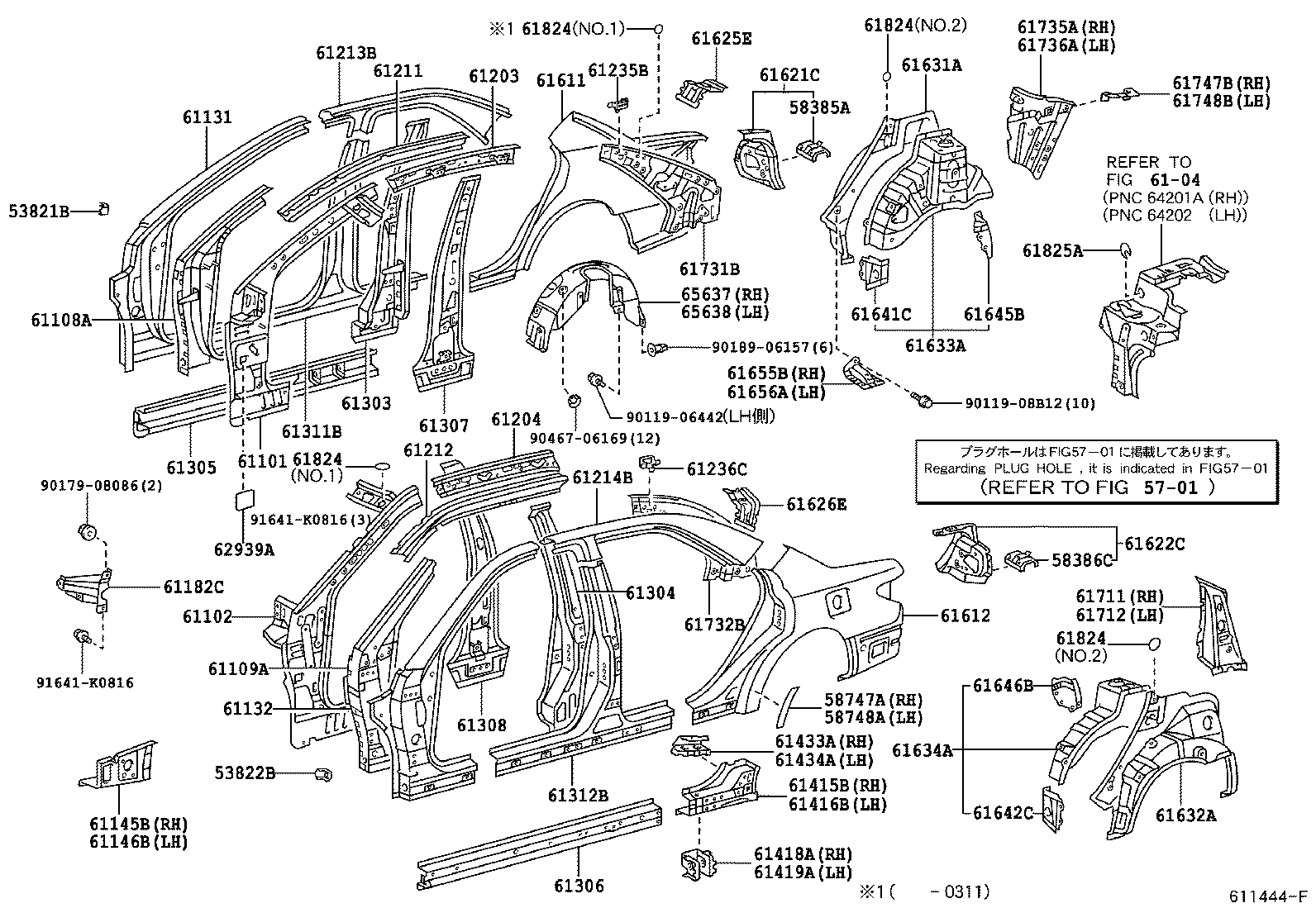

Exploded illustration 611444F 61735A — PANEL, ROOF SIDE, INNER REAR RH (2 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (2 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (2 parts) 61101 — PANEL SUB-ASSY, COWL SIDE, RH (2 parts) 61748B — REINFORCEMENT, ROOF SIDE, INNER REAR, LH (2 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (2 parts) 62939A — SILENCER, QUARTER VENT (2 parts) 9017908086 — not listed in this catalogue 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61736A — PANEL, ROOF SIDE, INNER REAR LH (2 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (2 parts) 9011908B12 — not listed in this catalogue 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61235B — BRACKET, ASSIST GRIP (2 parts) 61625E — EXTENSION, QUARTER PANEL, INNER REAR RH (2 parts) 61621C — TROUGH, LUGGAGE COMPARTMENT OPENING, RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (3 parts) 58385A — BRACKET, REAR BUMPER COVER (2 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 65637 — LINER, REAR WHEEL HOUSE, RH (2 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (2 parts) 9018906157 — not listed in this catalogue 61655B — GUSSET, QUARTER WHEEL HOUSE, INNER RH (2 parts) 61656A — GUSSET, QUARTER WHEEL HOUSE, INNER LH (2 parts) 9011906442 — not listed in this catalogue 61626E — EXTENSION, QUARTER PANEL, INNER REAR LH (2 parts) 61732B — PANEL, ROOF SIDE, INNER LH (2 parts) 61236C — BRACKET, ASSIST GRIP (2 parts) 9046706169 — not listed in this catalogue 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61307 — PILLAR SUB-ASSY, CENTER BODY, INNER RH (2 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61182C — BRACKET, INSTRUMENT SIDE, LH (2 parts) 61102 — PANEL SUB-ASSY, COWL SIDE, LH (2 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (2 parts) 61747B — REINFORCEMENT, ROOF SIDE, INNER REAR, RH (2 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (2 parts) 61145B — GUSSET, FRONT BODY PILLAR, LOWER RH (2 parts) 61146B — GUSSET, FRONT BODY PILLAR, LOWER LH (2 parts) 91641K0816 — not listed in this catalogue 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (2 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (2 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (2 parts) 61304 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH (2 parts) 61433A — REINFORCEMENT, ROCKER PANEL, OUTER RH (2 parts) 61434A — REINFORCEMENT, ROCKER PANEL, OUTER LH (2 parts) 61415B — EXTENSION, ROCKER, OUTER RH (2 parts) 61416B — EXTENSION, ROCKER, OUTER LH (2 parts) 61418A — REINFORCEMENT, ROCKER PANEL, RH (2 parts) 61419A — REINFORCEMENT, ROCKER PANEL, LH (2 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (2 parts) 61646B — GUSSET, QUARTER WHEEL HOUSE, REAR LH (2 parts) 61642C — GUSSET, QUARTER WHEEL HOUSE, FRONT LH (2 parts) 58747A — PROTECTOR, QUARTER PANEL, REAR RH (2 parts) 58748A — PROTECTOR, QUARTER PANEL, REAR LH (2 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (3 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (2 parts) 58386C — BRACKET, REAR BUMPER COVER, LH (2 parts) 61622C — TROUGH, LUGGAGE COMPARTMENT OPENING, LH (2 parts) 61645B — GUSSET, QUARTER WHEEL HOUSE, REAR RH (2 parts) 61641C — GUSSET, QUARTER WHEEL HOUSE, FRONT RH (2 parts) 61131 — PILLAR, FRONT BODY, UPPER OUTER RH (2 parts) 61213B — RAIL, ROOF SIDE, OUTER NO.2 RH (3 parts) 61611 — PANEL, QUARTER, RH (3 parts) 61132 — PILLAR, FRONT BODY, UPPER OUTER LH (2 parts) 61214B — RAIL, ROOF SIDE, OUTER NO.2 LH (3 parts) 61612 — PANEL, QUARTER, LH (3 parts) 61311B — PILLAR, CENTER BODY, OUTER RH (2 parts) 61312B — PILLAR, CENTER BODY, OUTER LH (2 parts) 91641K0816 — not listed in this catalogue 53822B — BRACKET, FRONT FENDER, REAR LH (2 parts) 53821B — BRACKET, FRONT FENDER, REAR RH (2 parts) 6104 — not listed in this catalogue 5701 — not listed in this catalogue
611444F · 69 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
140 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53821-16010 Bracket, Front Fender, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥280
53821-16010 Bracket, Front Fender, Rear RH
2004-06 → —
MCV30 ¥280
53822B — Bracket, Front Fender, Rear LH
53821-16010 Bracket, Front Fender, Rear LH
2001-07 → 2004-06 ended
MCV30 ¥280
53821-16010 Bracket, Front Fender, Rear LH
2004-06 → —
MCV30 ¥280
58385A — Bracket, Rear Bumper Cover
58385-33020 Bracket, Rear Bumper Cover
2001-07 → 2004-06 ended
MCV30 ¥450
58385-33020 Bracket, Rear Bumper Cover
2004-06 → —
MCV30 ¥450
58386C — Bracket, Rear Bumper Cover, LH
58385-33020 Bracket, Rear Bumper Cover, LH
2001-07 → 2004-06 ended
MCV30 ¥450
58385-33020 Bracket, Rear Bumper Cover, LH
2004-06 → —
MCV30 ¥450
58747A — Protector, Quarter Panel, Rear RH
58747-33020 Protector, Quarter Panel, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥810
58747-33020 Protector, Quarter Panel, Rear RH
2004-06 → —
MCV30 ¥810
58748A — Protector, Quarter Panel, Rear LH
58748-33020 Protector, Quarter Panel, Rear LH
2001-07 → 2004-06 ended
MCV30 ¥810
58748-33020 Protector, Quarter Panel, Rear LH
2004-06 → —
MCV30 ¥810
61101 — Panel Sub-assy, Cowl Side, RH
61101-33090 Panel Sub-assy, Cowl Side, RH
2001-07 → 2004-06 ended
MCV30 ¥13,300
61101-33090 Panel Sub-assy, Cowl Side, RH
2004-06 → 2006-03 ended
MCV30 ¥13,300
61102 — Panel Sub-assy, Cowl Side, LH
61102-33110 Panel Sub-assy, Cowl Side, LH
2001-07 → 2004-06 ended
MCV30 ¥13,300
61102-33110 Panel Sub-assy, Cowl Side, LH
2004-06 → 2006-03 ended
MCV30 ¥13,300
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61103-33030 Reinforce Sub-assy, Front Body Pillar, Lower RH
2001-07 → 2004-06 ended
MCV30 ¥17,100
61103-33030 Reinforce Sub-assy, Front Body Pillar, Lower RH
2004-06 → —
MCV30 ¥17,100
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61104-33030 Reinforce Sub-assy, Front Body Pillar, Lower LH
2001-07 → 2004-06 ended
MCV30 ¥16,700
61104-33030 Reinforce Sub-assy, Front Body Pillar, Lower LH
2004-06 → —
MCV30 ¥16,700
61131 — Pillar, Front Body, Upper Outer RH
61131-33040 Pillar, Front Body, Upper Outer RH
2001-07 → 2004-06 ended
MCV30 ¥22,800
61131-33040 Pillar, Front Body, Upper Outer RH
2004-06 → —
MCV30 ¥22,800
61132 — Pillar, Front Body, Upper Outer LH
61132-33040 Pillar, Front Body, Upper Outer LH
2001-07 → 2004-06 ended
MCV30 ¥22,800
61132-33040 Pillar, Front Body, Upper Outer LH
2004-06 → —
MCV30 ¥22,800
61145B — Gusset, Front Body Pillar, Lower RH
61145-33040 Gusset, Front Body Pillar, Lower RH
2001-07 → 2004-06 ended
MCV30 ¥4,280
61145-33040 Gusset, Front Body Pillar, Lower RH
2004-06 → —
MCV30 ¥4,280
61146B — Gusset, Front Body Pillar, Lower LH
61146-33040 Gusset, Front Body Pillar, Lower LH
2001-07 → 2004-06 ended
MCV30 ¥4,280
61146-33040 Gusset, Front Body Pillar, Lower LH
2004-06 → —
MCV30 ¥4,280
61182C — Bracket, Instrument Side, LH
61182-33010 Bracket, Instrument Side, LH
2001-07 → 2004-06 ended
MCV30 ¥2,270
61182-33010 Bracket, Instrument Side, LH
2004-06 → —
MCV30 ¥2,270
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-33030 Rail Sub-assy, Roof Side, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥7,600
61203-33030 Rail Sub-assy, Roof Side, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥7,600
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-33030 Rail Sub-assy, Roof Side, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥7,600
61204-33030 Rail Sub-assy, Roof Side, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥7,600
61211 — Rail, Roof Side, Outer RH
61211-33030 Rail, Roof Side, Outer RH
2001-07 → 2004-06 ended
MCV30 ¥11,800
61211-33030 Rail, Roof Side, Outer RH
2004-06 → —
MCV30 ¥11,800
61212 — Rail, Roof Side, Outer LH
61212-33030 Rail, Roof Side, Outer LH
2001-07 → 2004-06 ended
MCV30 ¥11,800
61212-33030 Rail, Roof Side, Outer LH
2004-06 → —
MCV30 ¥11,800
61213B — Rail, Roof Side, Outer NO.2 RH
61213-33060 Rail, Roof Side, Outer NO.2 RH
2001-07 → 2004-02 ended
MCV30 ¥6,600
61213-33061 Rail, Roof Side, Outer NO.2 RH
2004-02 → 2004-06 ended
MCV30 ¥8,600
61213-33061 Rail, Roof Side, Outer NO.2 RH
2004-06 → —
MCV30 ¥8,600
61214B — Rail, Roof Side, Outer NO.2 LH
61214-33060 Rail, Roof Side, Outer NO.2 LH
2001-07 → 2004-02 ended
MCV30 ¥6,600
61214-33061 Rail, Roof Side, Outer NO.2 LH
2004-02 → 2004-06 ended
MCV30 ¥8,600
61214-33061 Rail, Roof Side, Outer NO.2 LH
2004-06 → —
MCV30 ¥8,600
61235B — Bracket, Assist Grip
61238-33010 Bracket, Assist Grip
2001-07 → 2004-06 ended
MCV30 ¥520
61238-33010 Bracket, Assist Grip
2004-06 → —
MCV30 ¥520
61236C — Bracket, Assist Grip
61238-33010 Bracket, Assist Grip
2001-07 → 2004-06 ended
MCV30 ¥520
61238-33010 Bracket, Assist Grip
2004-06 → —
MCV30 ¥520
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-33900 Reinforce Sub-assy, Center Body Pillar, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥26,800
61303-33900 Reinforce Sub-assy, Center Body Pillar, Upper RH
2004-06 → —
MCV30 ¥26,800
61304 — Reinforce Sub-assy, Center Body Pillar, Upper LH
61304-33900 Reinforce Sub-assy, Center Body Pillar, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥26,800
61304-33900 Reinforce Sub-assy, Center Body Pillar, Upper LH
2004-06 → —
MCV30 ¥26,800
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-33040 Reinforce Sub-assy, Center Body Pillar, Lower RH
2001-07 → 2004-06 ended
MCV30 ¥21,300
61305-33040 Reinforce Sub-assy, Center Body Pillar, Lower RH
2004-06 → —
MCV30 ¥21,300
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-33040 Reinforce Sub-assy, Center Body Pillar, Lower LH
2001-07 → 2004-06 ended
MCV30 ¥21,300
61306-33040 Reinforce Sub-assy, Center Body Pillar, Lower LH
2004-06 → —
MCV30 ¥21,300
61307 — Pillar Sub-assy, Center Body, Inner RH
61307-33050 Pillar Sub-assy, Center Body, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥20,200
61307-33050 Pillar Sub-assy, Center Body, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥20,200
61308 — Pillar Sub-assy, Center Body, Inner LH
61308-33050 Pillar Sub-assy, Center Body, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥20,200
61308-33050 Pillar Sub-assy, Center Body, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥20,200
61311B — Pillar, Center Body, Outer RH
61311-33040 Pillar, Center Body, Outer RH
2001-07 → 2004-06 ended
MCV30 ¥24,100
61311-33040 Pillar, Center Body, Outer RH
2004-06 → —
MCV30 ¥24,100
61312B — Pillar, Center Body, Outer LH
61312-33040 Pillar, Center Body, Outer LH
2001-07 → 2004-06 ended
MCV30 ¥24,100
61312-33040 Pillar, Center Body, Outer LH
2004-06 → —
MCV30 ¥24,100
61415B — Extension, Rocker, Outer RH
61415-33040 Extension, Rocker, Outer RH
2001-07 → 2004-06 ended
MCV30 ¥10,200
61415-33040 Extension, Rocker, Outer RH
2004-06 → —
MCV30 ¥10,200
61416B — Extension, Rocker, Outer LH
61416-33040 Extension, Rocker, Outer LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
61416-33040 Extension, Rocker, Outer LH
2004-06 → —
MCV30 ¥10,200
61418A — Reinforcement, Rocker Panel, RH
61418-33050 Reinforcement, Rocker Panel, RH
2001-07 → 2004-06 ended
MCV30 ¥2,160
61418-33050 Reinforcement, Rocker Panel, RH
2004-06 → —
MCV30 ¥2,160
61419A — Reinforcement, Rocker Panel, LH
61418-33050 Reinforcement, Rocker Panel, LH
2001-07 → 2004-06 ended
MCV30 ¥2,160
61418-33050 Reinforcement, Rocker Panel, LH
2004-06 → —
MCV30 ¥2,160
61433A — Reinforcement, Rocker Panel, Outer RH
61433-33020 Reinforcement, Rocker Panel, Outer RH
2001-07 → 2004-06 ended
MCV30 ¥2,300
61433-33020 Reinforcement, Rocker Panel, Outer RH
2004-06 → —
MCV30 ¥2,300
61434A — Reinforcement, Rocker Panel, Outer LH
61434-33020 Reinforcement, Rocker Panel, Outer LH
2001-07 → 2004-06 ended
MCV30 ¥2,300
61434-33020 Reinforcement, Rocker Panel, Outer LH
2004-06 → —
MCV30 ¥2,300
61611 — Panel, Quarter, RH
61601-33280 Panel, Quarter, RH
2001-07 → 2004-02 ended
MCV30 ¥66,900
61601-33281 Panel, Quarter, RH
2004-02 → 2004-06 ended
MCV30 ¥67,100
61601-33281 Panel, Quarter, RH
2004-06 → 2006-03 ended
MCV30 ¥67,100
61612 — Panel, Quarter, LH
61602-33170 Panel, Quarter, LH
2001-07 → 2004-02 ended
MCV30 ¥66,900
61602-33171 Panel, Quarter, LH
2004-02 → 2004-06 ended
MCV30 ¥67,100
61602-33171 Panel, Quarter, LH
2004-06 → 2006-03 ended
MCV30 ¥67,100
61621C — Trough, Luggage Compartment Opening, RH
61621-33900 Trough, Luggage Compartment Opening, RH
2001-07 → 2004-06 ended
MCV30 ¥3,980
61063-33010 Trough, Luggage Compartment Opening, RH
2004-06 → —
MCV30 ¥3,980
61622C — Trough, Luggage Compartment Opening, LH
61622-33900 Trough, Luggage Compartment Opening, LH
2001-07 → 2004-06 ended
MCV30 ¥3,980
61064-33010 Trough, Luggage Compartment Opening, LH
2004-06 → —
MCV30 ¥3,980
61625E — Extension, Quarter Panel, Inner Rear RH
61625-33050 Extension, Quarter Panel, Inner Rear RH
2001-07 → 2004-06 ended
MCV30 ¥2,270
61625-33050 Extension, Quarter Panel, Inner Rear RH
2004-06 → —
MCV30 ¥2,270
61626E — Extension, Quarter Panel, Inner Rear LH
61626-33050 Extension, Quarter Panel, Inner Rear LH
2001-07 → 2004-06 ended
MCV30 ¥2,270
61626-33050 Extension, Quarter Panel, Inner Rear LH
2004-06 → —
MCV30 ¥2,270
61631A — Panel, Quarter Wheel House, Outer RH
61631-33050 Panel, Quarter Wheel House, Outer RH
2001-07 → 2002-10 ended
MCV30 ¥13,100
61631-33051 Panel, Quarter Wheel House, Outer RH
2002-10 → 2004-06 ended
MCV30 ¥13,100
61631-33051 Panel, Quarter Wheel House, Outer RH
2004-06 → —
MCV30 ¥13,100
61632A — Panel, Quarter Wheel House, Outer LH
61632-33050 Panel, Quarter Wheel House, Outer LH
2001-07 → 2002-10 ended
MCV30 ¥13,100
61632-33051 Panel, Quarter Wheel House, Outer LH
2002-10 → 2004-06 ended
MCV30 ¥13,100
61632-33051 Panel, Quarter Wheel House, Outer LH
2004-06 → —
MCV30 ¥13,100
61633A — Panel, Quarter Wheel House, Inner RH
61607-33904 Panel, Quarter Wheel House, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥18,900
61607-33909 Panel, Quarter Wheel House, Inner RH
2004-06 → —
MCV30 ¥40,300
61634A — Panel, Quarter Wheel House, Inner LH
61608-33904 Panel, Quarter Wheel House, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥18,900
61608-33909 Panel, Quarter Wheel House, Inner LH
2004-06 → —
MCV30 ¥40,300
61641C — Gusset, Quarter Wheel House, Front RH
61641-33030 Gusset, Quarter Wheel House, Front RH
2001-07 → 2004-06 ended
MCV30 ¥1,460
61641-33030 Gusset, Quarter Wheel House, Front RH
2004-06 → —
MCV30 ¥1,460
61642C — Gusset, Quarter Wheel House, Front LH
61642-33030 Gusset, Quarter Wheel House, Front LH
2001-07 → 2004-06 ended
MCV30 ¥1,460
61642-33030 Gusset, Quarter Wheel House, Front LH
2004-06 → —
MCV30 ¥1,460
61645B — Gusset, Quarter Wheel House, Rear RH
61645-33020 Gusset, Quarter Wheel House, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥2,300
61645-33020 Gusset, Quarter Wheel House, Rear RH
2004-06 → —
MCV30 ¥2,300
61646B — Gusset, Quarter Wheel House, Rear LH
61646-33020 Gusset, Quarter Wheel House, Rear LH
2001-07 → 2004-06 ended
MCV30 ¥2,300
61646-33020 Gusset, Quarter Wheel House, Rear LH
2004-06 → —
MCV30 ¥2,300
61655B — Gusset, Quarter Wheel House, Inner RH
61655-33010 Gusset, Quarter Wheel House, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥3,340
61655-33010 Gusset, Quarter Wheel House, Inner RH
2004-06 → —
MCV30 ¥3,340
61656A — Gusset, Quarter Wheel House, Inner LH
61656-33010 Gusset, Quarter Wheel House, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,340
61656-33010 Gusset, Quarter Wheel House, Inner LH
2004-06 → —
MCV30 ¥3,340
61711 — Panel, Roof Side, Outer RH
61711-33050 Panel, Roof Side, Outer RH
2001-07 → 2004-06 ended
MCV30 ¥5,600
61711-33050 Panel, Roof Side, Outer RH
2004-06 → —
MCV30 ¥5,600
61712 — Panel, Roof Side, Outer LH
61712-33050 Panel, Roof Side, Outer LH
2001-07 → 2004-06 ended
MCV30 ¥5,600
61712-33050 Panel, Roof Side, Outer LH
2004-06 → —
MCV30 ¥5,600
61731B — Panel, Roof Side, Inner RH
61731-33100 Panel, Roof Side, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥12,100
61731-33100 Panel, Roof Side, Inner RH
2004-06 → —
MCV30 ¥12,100
61732B — Panel, Roof Side, Inner LH
61732-33090 Panel, Roof Side, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥12,100
61732-33090 Panel, Roof Side, Inner LH
2004-06 → —
MCV30 ¥12,100
61735A — Panel, Roof Side, Inner Rear RH
61735-33060 Panel, Roof Side, Inner Rear RH
2001-07 → 2004-06 ended
MCV30 ¥12,100
61735-33060 Panel, Roof Side, Inner Rear RH
2004-06 → —
MCV30 ¥12,100
61736A — Panel, Roof Side, Inner Rear LH
61736-33060 Panel, Roof Side, Inner Rear LH
2001-07 → 2004-06 ended
MCV30 ¥6,900
61736-33060 Panel, Roof Side, Inner Rear LH
2004-06 → —
MCV30 ¥6,900
61747B — Reinforcement, Roof Side, Inner Rear, RH
61747-33020 Reinforcement, Roof Side, Inner Rear, RH
2001-07 → 2004-06 ended
MCV30 ¥510
61747-33020 Reinforcement, Roof Side, Inner Rear, RH
2004-06 → —
MCV30 ¥510
61748B — Reinforcement, Roof Side, Inner Rear, LH
61748-33020 Reinforcement, Roof Side, Inner Rear, LH
2001-07 → 2004-06 ended
MCV30 ¥510
61748-33020 Reinforcement, Roof Side, Inner Rear, LH
2004-06 → —
MCV30 ¥510
61824 — Plate, Noise Control, NO.1
61824-20100 note Plate, Noise Control, NO.1
2001-07 → 2004-06 ended
MCV30 ¥160
61825-30020 note Plate, Noise Control, NO.1
2001-07 → 2004-06 ended
MCV30 ¥640
61824-20100 note Plate, Noise Control, NO.1
2004-06 → —
MCV30 ¥160
61825-30020 note Plate, Noise Control, NO.1
2004-06 → —
MCV30 ¥640
61825A — Plate, Noise Control, NO.2
61824-33020 Plate, Noise Control, NO.2
2001-07 → 2004-06 ended
MCV30 ¥1,350
61824-33020 Plate, Noise Control, NO.2
2004-06 → —
MCV30 ¥1,350
62939A — Silencer, Quarter Vent
62939-32030 Silencer, Quarter Vent
2001-07 → 2004-06 ended
MCV30 ¥520
62939-32030 Silencer, Quarter Vent
2004-06 → —
MCV30 ¥520
65637 — Liner, Rear Wheel House, RH
65637-33010 Liner, Rear Wheel House, RH
2001-07 → 2004-06 ended
MCV30 ¥9,000
65637-33010 Liner, Rear Wheel House, RH
2004-06 → —
MCV30 ¥9,000
65638 — Liner, Rear Wheel House, LH
65638-33010 Liner, Rear Wheel House, LH
2001-07 → 2004-06 ended
MCV30 ¥9,000
65638-33010 Liner, Rear Wheel House, LH
2004-06 → —
MCV30 ¥9,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
