Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

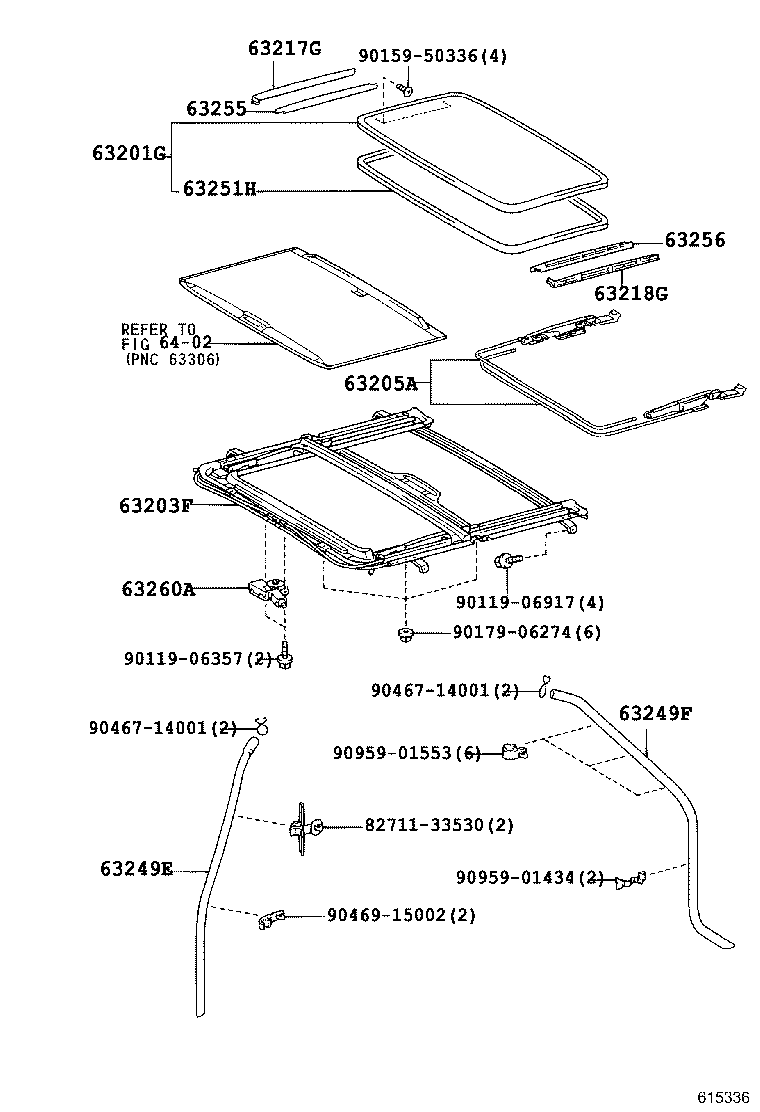

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-33080 note |
Glass Sub-assy, Sliding Roof
2001-07 → 2002-12
ended
|
MCV30 | ¥0 | |
| 63201-33081 note |
Glass Sub-assy, Sliding Roof
2002-12 → 2003-07
ended
|
MCV30 | ¥57,300 | |
| 63201-33082 note |
Glass Sub-assy, Sliding Roof
2003-08 → 2004-06
ended
|
MCV30 | ¥57,400 | |
| 63201-33083 note |
Glass Sub-assy, Sliding Roof
2004-07 → —
|
MCV30 | ¥0 | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63200-33100-A0 note |
Housing Sub-assy, Sliding Roof
2001-07 → 2002-01
ended
|
MCV30 | ¥181,000 | |
| 63200-33100-B1 note |
Housing Sub-assy, Sliding Roof
2001-07 → 2002-01
ended
|
MCV30 | ¥181,000 | |
| 63200-33101-A0 note |
Housing Sub-assy, Sliding Roof
2002-01 → 2004-06
ended
|
MCV30 | ¥181,000 | |
| 63200-33101-B1 note |
Housing Sub-assy, Sliding Roof
2002-01 → 2004-06
ended
|
MCV30 | ¥181,000 | |
| 63203-33050 note |
Housing Sub-assy, Sliding Roof
2001-07 → 2004-06
ended
|
MCV30 | ¥37,200 | |
| 63203-33050 note |
Housing Sub-assy, Sliding Roof
2004-06 → —
|
MCV30 | ¥37,200 | |
| 63205A — Cable Sub-assy, Sliding Roof Drive | ||||
| 63205-33030 |
Cable Sub-assy, Sliding Roof Drive
2001-07 → 2004-06
ended
|
MCV30 | ¥35,400 | |
| 63205-33030 |
Cable Sub-assy, Sliding Roof Drive
2004-06 → —
|
MCV30 | ¥35,400 | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-33050 |
Garnish, Sliding Roof Side, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,030 | |
| 63217-33050 |
Garnish, Sliding Roof Side, RH
2004-06 → —
|
MCV30 | ¥1,030 | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63218-33040 |
Garnish, Sliding Roof Side, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,030 | |
| 63218-33040 |
Garnish, Sliding Roof Side, LH
2004-06 → —
|
MCV30 | ¥1,030 | |
| 63249E — Hose, Sliding Roof Drain | ||||
| 63249-33060 |
Hose, Sliding Roof Drain
2001-07 → 2004-06
ended
|
MCV30 | ¥1,030 | |
| 63249-33060 |
Hose, Sliding Roof Drain
2004-06 → —
|
MCV30 | ¥1,030 | |
| 63249F — Hose, Sliding Roof Drain | ||||
| 63249-33080 |
Hose, Sliding Roof Drain
2001-07 → 2004-06
ended
|
MCV30 | ¥1,550 | |
| 63249-33080 |
Hose, Sliding Roof Drain
2004-06 → —
|
MCV30 | ¥1,550 | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-33050 |
Weatherstrip, Sliding Roof
2001-07 → 2004-06
ended
|
MCV30 | ¥4,190 | |
| 63251-33061 |
Weatherstrip, Sliding Roof
2004-07 → —
|
MCV30 | ¥4,190 | |
| 63255 — Cover, Sliding Roof Guide Rail, RH | ||||
| 63255-33010 |
Cover, Sliding Roof Guide Rail, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,200 | |
| 63255-33010 |
Cover, Sliding Roof Guide Rail, RH
2004-06 → —
|
MCV30 | ¥1,200 | |
| 63256 — Cover, Sliding Roof Guide Rail, LH | ||||
| 63256-33010 |
Cover, Sliding Roof Guide Rail, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,200 | |
| 63256-33010 |
Cover, Sliding Roof Guide Rail, LH
2004-06 → —
|
MCV30 | ¥1,200 | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-33040 |
Gear Sub-assy, Sliding Roof Drive
2001-07 → 2002-01
ended
|
MCV30 | ¥46,900 | |
| 63260-33041 |
Gear Sub-assy, Sliding Roof Drive
2002-01 → 2004-06
ended
|
MCV30 | ¥47,100 | |
| 63260-33041 |
Gear Sub-assy, Sliding Roof Drive
2004-06 → —
|
MCV30 | ¥47,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
