Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

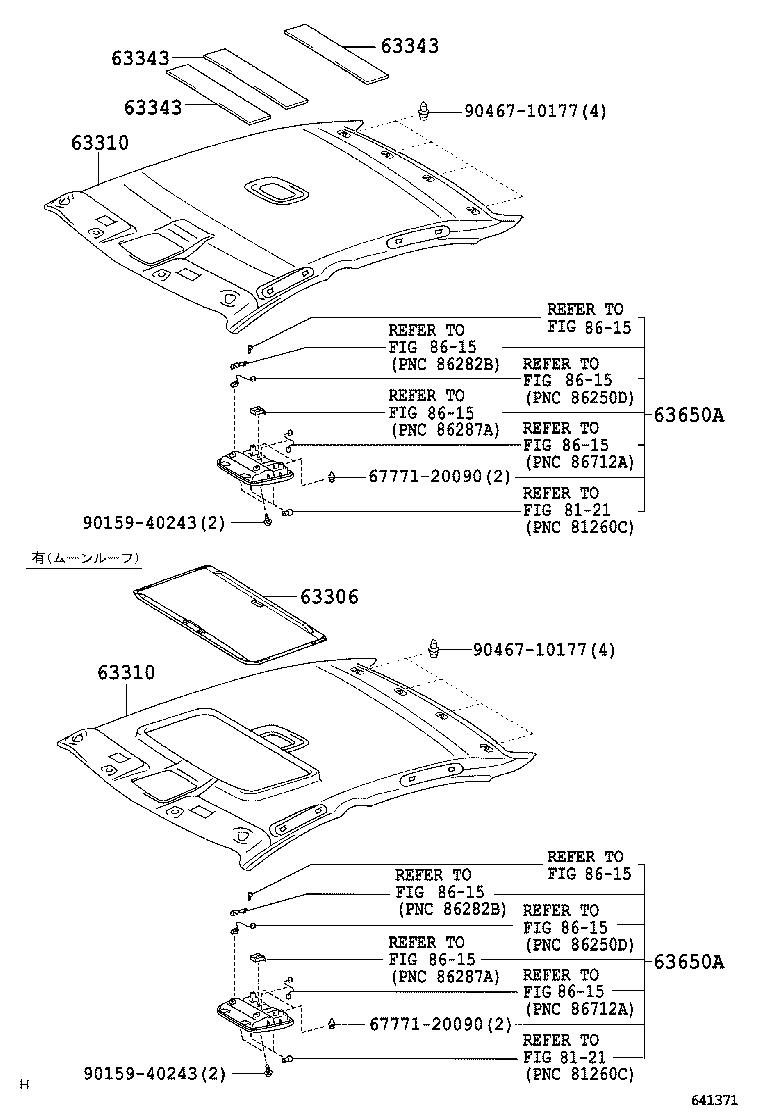

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63306 — Trim Sub-assy, Sunshade | ||||
| 63306-33080-A0 note |
Trim Sub-assy, Sunshade
2001-07 → 2004-06
ended
|
MCV30 | ¥29,100 | |
| 63306-33080-B1 note |
Trim Sub-assy, Sunshade
2001-07 → 2004-06
ended
|
MCV30 | ¥29,100 | |
| 63306-33080-A1 note |
Trim Sub-assy, Sunshade
2004-06 → 2006-03
ended
|
MCV30 | ¥29,100 | |
| 63306-33080-B2 note |
Trim Sub-assy, Sunshade
2004-06 → 2006-03
ended
|
MCV30 | ¥29,100 | |
| 63310 — Headlining Assy, Roof | ||||
| 63310-33450-A0 note |
Headlining Assy, Roof
2001-07 → 2004-03
ended
|
MCV30 | ¥57,200 | |
| 63310-33450-B1 note |
Headlining Assy, Roof
2001-07 → 2004-03
ended
|
MCV30 | ¥57,200 | |
| 63310-33451-A0 note |
Headlining Assy, Roof
2004-03 → 2004-06
ended
|
MCV30 | ¥57,400 | |
| 63310-33451-B1 note |
Headlining Assy, Roof
2004-03 → 2004-06
ended
|
MCV30 | ¥57,400 | |
| 63310-33470-A0 note |
Headlining Assy, Roof
2001-07 → 2003-11
ended
|
MCV30 | ¥57,300 | |
| 63310-33470-B1 note |
Headlining Assy, Roof
2001-07 → 2003-11
ended
|
MCV30 | ¥57,300 | |
| 63310-33471-A0 note |
Headlining Assy, Roof
2003-11 → 2004-06
ended
|
MCV30 | ¥53,600 | |
| 63310-33471-B1 note |
Headlining Assy, Roof
2003-11 → 2004-06
ended
|
MCV30 | ¥53,600 | |
| 63310-33451-A1 note |
Headlining Assy, Roof
2004-06 → 2006-03
ended
|
MCV30 | ¥57,400 | |
| 63310-33451-B2 note |
Headlining Assy, Roof
2004-06 → 2006-03
ended
|
MCV30 | ¥57,400 | |
| 63310-33471-A1 note |
Headlining Assy, Roof
2004-06 → 2006-03
ended
|
MCV30 | ¥53,600 | |
| 63310-33471-B2 note |
Headlining Assy, Roof
2004-06 → 2006-03
ended
|
MCV30 | ¥53,600 | |
| 63343 — Pad, Roof Silencer, NO.3 | ||||
| 63343-33110 |
Pad, Roof Silencer, NO.3
2001-07 → 2004-06
ended
|
MCV30 | ¥540 | |
| 63343-33110 |
Pad, Roof Silencer, NO.3
2004-06 → —
|
MCV30 | ¥540 | |
| 63650A — Box Assy, Roof Console | ||||
| 63650-33040-A0 note |
Box Assy, Roof Console
2001-07 → 2004-06
ended
|
MCV30 | ¥48,200 | |
| 63650-33040-B0 note |
Box Assy, Roof Console
2001-07 → 2004-06
ended
|
MCV30 | ¥48,200 | |
| 63650-33050-A0 note |
Box Assy, Roof Console
2001-07 → 2004-06
ended
|
MCV30 | ¥48,200 | |
| 63650-33050-B0 note |
Box Assy, Roof Console
2001-07 → 2004-06
ended
|
MCV30 | ¥48,200 | |
| 63650-33040-A1 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 | ¥48,200 | |
| 63650-33040-B2 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 | ¥48,200 | |
| 63650-33050-A1 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 | ¥48,200 | |
| 63650-33050-B2 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 | ¥48,200 | |
| 63650-33070-A0 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 30G | ¥48,200 | |
| 63650-33070-B0 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 30G | ¥48,200 | |
| 63650-33080-A0 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 30G | ¥48,200 | |
| 63650-33080-B0 note |
Box Assy, Roof Console
2004-06 → 2006-03
ended
|
MCV30 30G | ¥48,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
