Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

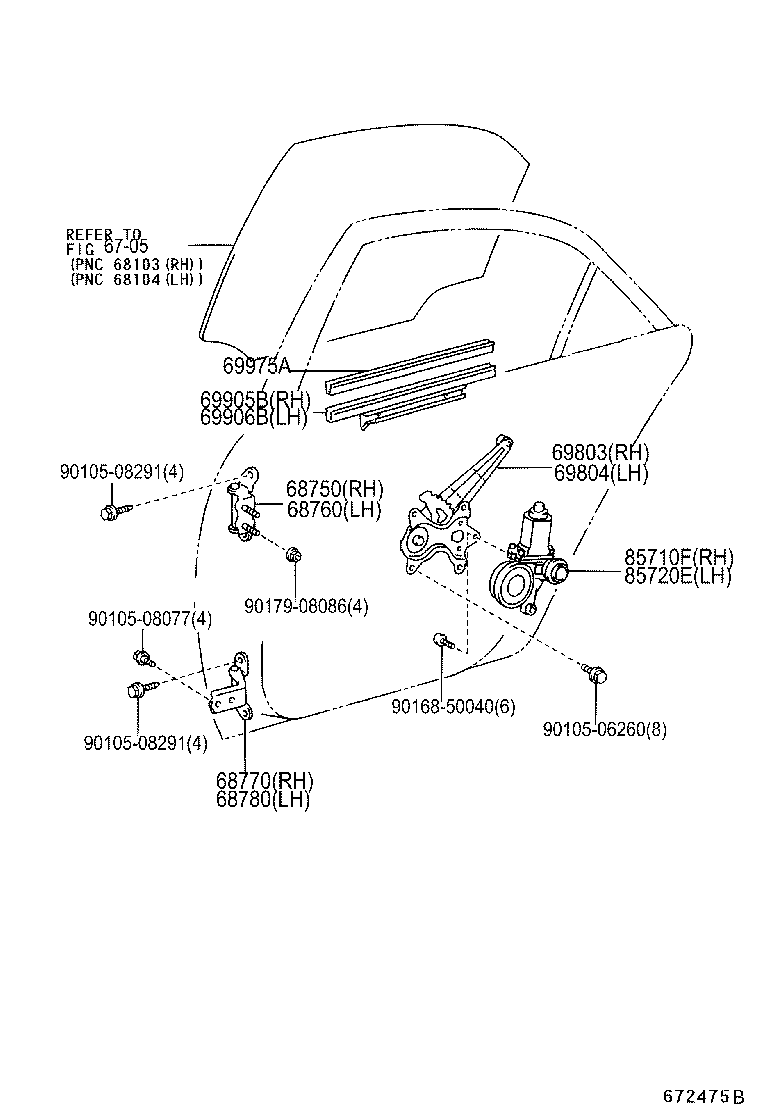

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68750 — Hinge Assy, Rear Door, Upper RH | ||||
| 68750-33010 |
Hinge Assy, Rear Door, Upper RH
2001-07 → 2004-06
ended
|
MCV30 | ¥2,960 | |
| 68750-33010 |
Hinge Assy, Rear Door, Upper RH
2004-06 → 2006-03
ended
|
MCV30 | ¥2,960 | |
| 68760 — Hinge Assy, Rear Door, Upper LH | ||||
| 68760-33010 |
Hinge Assy, Rear Door, Upper LH
2001-07 → 2004-06
ended
|
MCV30 | ¥2,960 | |
| 68760-33010 |
Hinge Assy, Rear Door, Upper LH
2004-06 → 2006-03
ended
|
MCV30 | ¥2,960 | |
| 68770 — Hinge Assy, Rear Door, Lower RH | ||||
| 68770-33040 |
Hinge Assy, Rear Door, Lower RH
2001-07 → 2004-06
ended
|
MCV30 | ¥2,700 | |
| 68770-33040 |
Hinge Assy, Rear Door, Lower RH
2004-06 → 2006-03
ended
|
MCV30 | ¥2,700 | |
| 68780 — Hinge Assy, Rear Door, Lower LH | ||||
| 68780-33040 |
Hinge Assy, Rear Door, Lower LH
2001-07 → 2004-06
ended
|
MCV30 | ¥2,700 | |
| 68780-33040 |
Hinge Assy, Rear Door, Lower LH
2004-06 → 2006-03
ended
|
MCV30 | ¥2,700 | |
| 69803 — Regulator Sub-assy, Rear Door Window, RH | ||||
| 69803-33040 |
Regulator Sub-assy, Rear Door Window, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥6,000 | |
| 69803-33040 |
Regulator Sub-assy, Rear Door Window, RH
2004-06 → —
|
MCV30 | ¥6,000 | |
| 69804 — Regulator Sub-assy, Rear Door Window, LH | ||||
| 69804-33040 |
Regulator Sub-assy, Rear Door Window, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥6,000 | |
| 69804-33040 |
Regulator Sub-assy, Rear Door Window, LH
2004-06 → —
|
MCV30 | ¥6,000 | |
| 69905B — Channel Sub-assy, Rear Door Glass, RH | ||||
| 69905-22060 |
Channel Sub-assy, Rear Door Glass, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥600 | |
| 69905-22060 |
Channel Sub-assy, Rear Door Glass, RH
2004-06 → 2006-03
ended
|
MCV30 | ¥600 | |
| 69906B — Channel Sub-assy, Rear Door Glass, LH | ||||
| 69906-22050 |
Channel Sub-assy, Rear Door Glass, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥600 | |
| 69906-22050 |
Channel Sub-assy, Rear Door Glass, LH
2004-06 → 2006-03
ended
|
MCV30 | ¥600 | |
| 69975A — Filler, Rear Door Glass Channel | ||||
| 69975-42010 |
Filler, Rear Door Glass Channel
2001-07 → 2004-06
ended
|
MCV30 | ¥610 | |
| 69975-42010 |
Filler, Rear Door Glass Channel
2004-06 → 2006-03
ended
|
MCV30 | ¥610 | |
| 85710F — Motor Assy, Power Window Regulator, RH | ||||
| 85720-33150 |
Motor Assy, Power Window Regulator, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥33,300 | |
| 85720-33150 |
Motor Assy, Power Window Regulator, RH
2004-06 → —
|
MCV30 | ¥33,300 | |
| 85720E — Motor Assy, Power Window Regulator, LH | ||||
| 85710-33150 |
Motor Assy, Power Window Regulator, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥33,300 | |
| 85710-33150 |
Motor Assy, Power Window Regulator, LH
2004-06 → —
|
MCV30 | ¥33,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
