Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

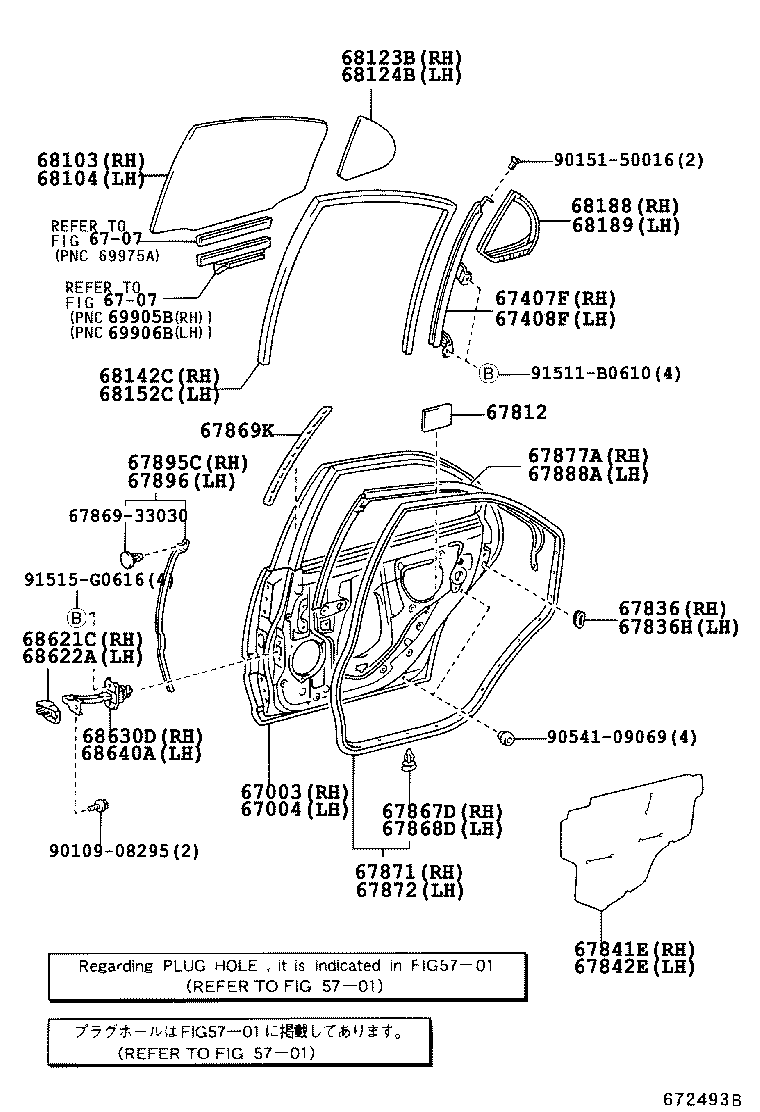

Exploded illustration 672493C 6707 — not listed in this catalogue 6707 — not listed in this catalogue 67003 — PANEL SUB-ASSY, REAR DOOR, RH (2 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (2 parts) 67407F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH (2 parts) 67408F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH (2 parts) 67812 — PAD, REAR DOOR SILENCER (2 parts) 91511B0610 — not listed in this catalogue 9015150016 — not listed in this catalogue 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (2 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (2 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (2 parts) 67877A — RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH (2 parts) 67888A — WEATHERSTRIP, REAR DOOR, NO.2 LH (2 parts) 67836 — COVER, REAR DOOR LOCK CHILD PROTECTION, RH (2 parts) 67836H — COVER, REAR DOOR LOCK CHILD PROTECTION, LH (2 parts) 9054109069 — not listed in this catalogue 67841E — COVER, REAR DOOR SERVICE HOLE, RH (2 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 9010908295 — not listed in this catalogue 68630D — CHECK ASSY, REAR DOOR, RH (2 parts) 68640A — CHECK ASSY, REAR DOOR, LH (2 parts) 68622A — COVER, REAR DOOR CHECK, LH (2 parts) 68621C — COVER, REAR DOOR CHECK, RH (2 parts) 91515G0616 — not listed in this catalogue 6786933030 — not listed in this catalogue 67896 — WEATHERSTRIP, REAR DOOR, NO.3 LH (2 parts) 67895C — WEATHERSTRIP, REAR DOOR, NO.3 RH (2 parts) 67869K — CLIP, DOOR WEATHERSTRIP, LH (2 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (2 parts)
672493C · 30 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-33140 Panel Sub-assy, Rear Door, RH
2001-07 → 2004-06 ended
MCV30 ¥69,600
67003-33140 Panel Sub-assy, Rear Door, RH
2004-06 → 2006-03 ended
MCV30 ¥69,600
67004 — Panel Sub-assy, Rear Door, LH
67004-33140 Panel Sub-assy, Rear Door, LH
2001-07 → 2004-06 ended
MCV30 ¥69,600
67004-33140 Panel Sub-assy, Rear Door, LH
2004-06 → 2006-03 ended
MCV30 ¥69,600
67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH
67407-33050 Frame Sub-assy, Rear Door Window, Rear Lower RH
2001-07 → 2004-06 ended
MCV30 ¥3,500
67407-33050 Frame Sub-assy, Rear Door Window, Rear Lower RH
2004-06 → —
MCV30 ¥3,500
67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH
67408-33050 Frame Sub-assy, Rear Door Window, Rear Lower LH
2001-07 → 2004-06 ended
MCV30 ¥3,500
67408-33050 Frame Sub-assy, Rear Door Window, Rear Lower LH
2004-06 → —
MCV30 ¥3,500
67812 — Pad, Rear Door Silencer
67811-33040 Pad, Rear Door Silencer
2001-07 → 2004-06 ended
MCV30 ¥550
67811-33040 Pad, Rear Door Silencer
2004-06 → —
MCV30 ¥550
67836 — Cover, Rear Door Lock Child Protection, RH
67836-12040 Cover, Rear Door Lock Child Protection, RH
2001-07 → 2004-06 ended
MCV30 ¥210
67836-12040 Cover, Rear Door Lock Child Protection, RH
2004-06 → —
MCV30 ¥210
67836H — Cover, Rear Door Lock Child Protection, LH
67836-12040 Cover, Rear Door Lock Child Protection, LH
2001-07 → 2004-06 ended
MCV30 ¥210
67836-12040 Cover, Rear Door Lock Child Protection, LH
2004-06 → —
MCV30 ¥210
67841E — Cover, Rear Door Service Hole, RH
67841-33070 Cover, Rear Door Service Hole, RH
2001-07 → 2004-06 ended
MCV30 ¥880
67841-33070 Cover, Rear Door Service Hole, RH
2004-06 → —
MCV30 ¥880
67842E — Cover, Rear Door Service Hole, LH
67842-33070 Cover, Rear Door Service Hole, LH
2001-07 → 2004-06 ended
MCV30 ¥880
67842-33070 Cover, Rear Door Service Hole, LH
2004-06 → —
MCV30 ¥880
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2001-07 → 2004-06 ended
MCV30 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2004-06 → —
MCV30 ¥100
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2001-07 → 2004-06 ended
MCV30 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2004-06 → —
MCV30 ¥100
67869K — Clip, Door Weatherstrip, LH
67869-33020 Clip, Door Weatherstrip, LH
2001-07 → 2004-06 ended
MCV30 ¥480
67869-33020 Clip, Door Weatherstrip, LH
2004-06 → —
MCV30 ¥480
67871 — Weatherstrip, Rear Door, RH
67871-33070 Weatherstrip, Rear Door, RH
2001-07 → 2004-06 ended
MCV30 ¥6,300
67871-33070 Weatherstrip, Rear Door, RH
2004-06 → —
MCV30 ¥6,300
67872 — Weatherstrip, Rear Door, LH
67872-33070 Weatherstrip, Rear Door, LH
2001-07 → 2004-06 ended
MCV30 ¥6,300
67872-33070 Weatherstrip, Rear Door, LH
2004-06 → —
MCV30 ¥6,300
67877A — Retainer, Rear Door Glass Front Weatherstrip, RH
67887-33010 Retainer, Rear Door Glass Front Weatherstrip, RH
2001-07 → 2004-06 ended
MCV30 ¥3,090
67887-33010 Retainer, Rear Door Glass Front Weatherstrip, RH
2004-06 → —
MCV30 ¥3,090
67888A — Weatherstrip, Rear Door, NO.2 LH
67888-33010 Weatherstrip, Rear Door, NO.2 LH
2001-07 → 2004-06 ended
MCV30 ¥3,090
67888-33010 Weatherstrip, Rear Door, NO.2 LH
2004-06 → —
MCV30 ¥3,090
67895C — Weatherstrip, Rear Door, NO.3 RH
67895-33010 Weatherstrip, Rear Door, NO.3 RH
2001-07 → 2004-06 ended
MCV30 ¥1,390
67895-33010 Weatherstrip, Rear Door, NO.3 RH
2004-06 → —
MCV30 ¥1,390
67896 — Weatherstrip, Rear Door, NO.3 LH
67896-33010 Weatherstrip, Rear Door, NO.3 LH
2001-07 → 2004-06 ended
MCV30 ¥1,390
67896-33010 Weatherstrip, Rear Door, NO.3 LH
2004-06 → —
MCV30 ¥1,390
68103 — Glass Sub-assy, Rear Door, RH
68113-33130 note Glass Sub-assy, Rear Door, RH
2001-07 → 2004-06 ended
MCV30 ¥15,500
68113-33130 note Glass Sub-assy, Rear Door, RH
2004-06 → —
MCV30 ¥15,500
68104 — Glass Sub-assy, Rear Door, LH
68114-33130 note Glass Sub-assy, Rear Door, LH
2001-07 → 2004-06 ended
MCV30 ¥15,500
68114-33130 note Glass Sub-assy, Rear Door, LH
2004-06 → —
MCV30 ¥15,500
68123B — Glass, Rear Door Quarter Window, RH
68123-33040 note Glass, Rear Door Quarter Window, RH
2001-07 → 2004-06 ended
MCV30 ¥4,320
68123-33040 note Glass, Rear Door Quarter Window, RH
2004-06 → —
MCV30 ¥4,320
68124B — Glass, Rear Door Quarter Window, LH
68124-33040 note Glass, Rear Door Quarter Window, LH
2001-07 → 2004-06 ended
MCV30 ¥4,320
68124-33040 note Glass, Rear Door Quarter Window, LH
2004-06 → —
MCV30 ¥4,320
68142C — Run, Rear Door Glass, RH
68142-33080 Run, Rear Door Glass, RH
2001-07 → 2004-06 ended
MCV30 ¥4,050
68142-33080 Run, Rear Door Glass, RH
2004-06 → —
MCV30 ¥4,050
68152C — Run, Rear Door Glass, LH
68152-33080 Run, Rear Door Glass, LH
2001-07 → 2004-06 ended
MCV30 ¥4,050
68152-33080 Run, Rear Door Glass, LH
2004-06 → —
MCV30 ¥4,050
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-33030 Weatherstrip, Rear Door Quarter Window, RH
2001-07 → 2004-06 ended
MCV30 ¥2,760
68188-33030 Weatherstrip, Rear Door Quarter Window, RH
2004-06 → 2006-03 ended
MCV30 ¥2,760
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-33030 Weatherstrip, Rear Door Quarter Window, LH
2001-07 → 2004-06 ended
MCV30 ¥2,760
68189-33030 Weatherstrip, Rear Door Quarter Window, LH
2004-06 → 2006-03 ended
MCV30 ¥2,760
68621C — Cover, Rear Door Check, RH
68621-33010 Cover, Rear Door Check, RH
2001-07 → 2004-06 ended
MCV30 ¥380
68621-33010 Cover, Rear Door Check, RH
2004-06 → —
MCV30 ¥380
68622A — Cover, Rear Door Check, LH
68622-33010 Cover, Rear Door Check, LH
2001-07 → 2004-06 ended
MCV30 ¥380
68622-33010 Cover, Rear Door Check, LH
2004-06 → —
MCV30 ¥380
68630D — Check Assy, Rear Door, RH
68630-33060 Check Assy, Rear Door, RH
2001-07 → 2004-06 ended
MCV30 ¥3,700
68630-33060 Check Assy, Rear Door, RH
2004-06 → —
MCV30 ¥3,700
68640A — Check Assy, Rear Door, LH
68640-33060 Check Assy, Rear Door, LH
2001-07 → 2004-06 ended
MCV30 ¥3,700
68640-33060 Check Assy, Rear Door, LH
2004-06 → —
MCV30 ¥3,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
