Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

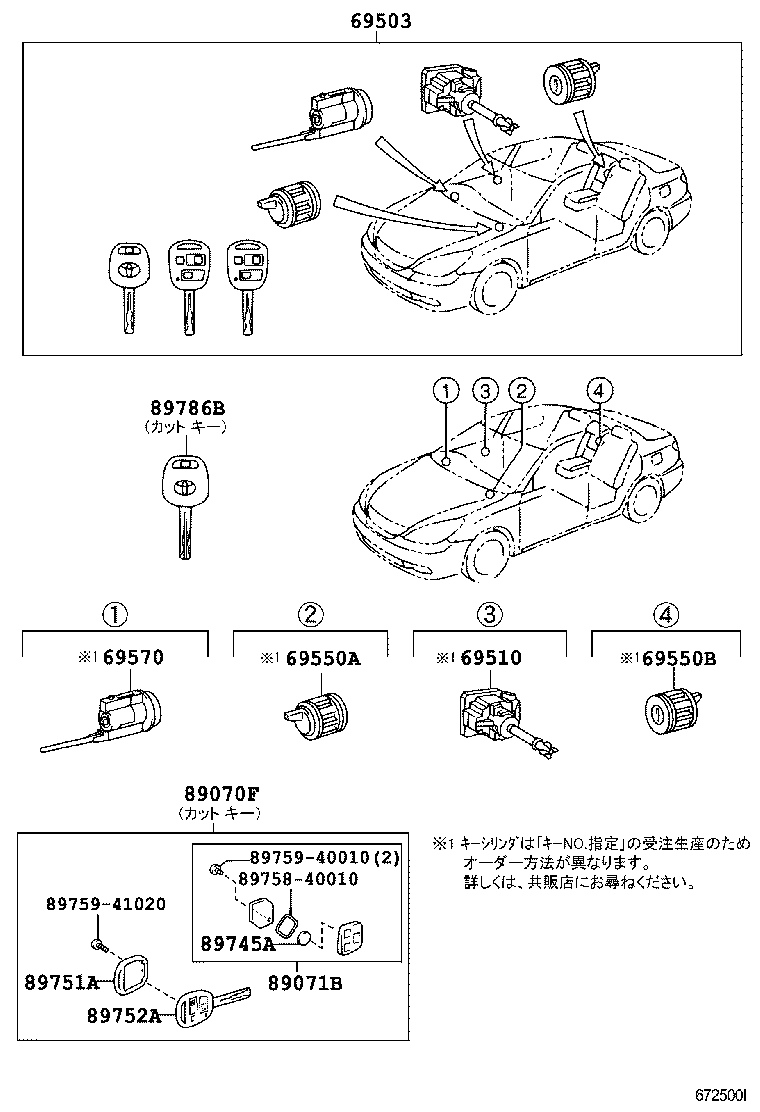

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69503 — Cylinder Set, Lock | ||||
| 69005-3T180 |
Cylinder Set, Lock
2001-07 → 2002-08
ended
|
MCV30 | ¥30,300 | |
| 69005-3T181 |
Cylinder Set, Lock
2002-08 → 2004-06
ended
|
MCV30 | ¥30,300 | |
| 69005-3T181 |
Cylinder Set, Lock
2004-06 → 2006-03
ended
|
MCV30 | ¥30,300 | |
| 69510 — Cylinder Assy, Front Door Lock, RH | ||||
| 69510-33150 |
Cylinder Assy, Front Door Lock, RH
2001-07 → 2002-08
ended
|
MCV30 | ¥15,500 | |
| 69510-33160 |
Cylinder Assy, Front Door Lock, RH
2002-08 → 2004-06
ended
|
MCV30 | ¥16,700 | |
| 69510-33160 |
Cylinder Assy, Front Door Lock, RH
2004-06 → 2006-03
ended
|
MCV30 | ¥16,700 | |
| 69550A — Cylinder Assy, Glove Compartment Door Lock | ||||
| 69550-33090 |
Cylinder Assy, Glove Compartment Door Lock
2001-07 → 2004-06
ended
|
MCV30 | ¥16,000 | |
| 69550-33090 |
Cylinder Assy, Glove Compartment Door Lock
2004-06 → 2006-03
ended
|
MCV30 | ¥16,000 | |
| 69550B — Cylinder Assy, Rear Seat Center Armrest Door Lock | ||||
| 69550-33090 |
Cylinder Assy, Rear Seat Center Armrest Door Lock
2001-07 → 2004-06
ended
|
MCV30 | ¥16,000 | |
| 69550-33090 |
Cylinder Assy, Rear Seat Center Armrest Door Lock
2004-06 → 2006-03
ended
|
MCV30 | ¥16,000 | |
| 69570 — Cylinder Assy, Ignition Switch Lock | ||||
| 69570-33130 |
Cylinder Assy, Ignition Switch Lock
2001-07 → 2004-06
ended
|
MCV30 | ¥18,200 | |
| 69570-33130 |
Cylinder Assy, Ignition Switch Lock
2004-06 → 2006-03
ended
|
MCV30 | ¥18,200 | |
| 89070F — Transmitter Assy, Door Control (CUT KEY) | ||||
| 89070-33610 note |
Transmitter Assy, Door Control (CUT KEY)
2001-07 → 2004-06
ended
|
MCV30 | ¥33,500 | |
| 89070-33610 note |
Transmitter Assy, Door Control (CUT KEY)
2004-06 → 2006-03
ended
|
MCV30 | ¥33,500 | |
| 89071B — Module Set, Transmitter Sub-assy, Door Control | ||||
| 89071-50081 |
Module Set, Transmitter Sub-assy, Door Control
2001-07 → 2004-06
ended
|
MCV30 | ¥17,800 | |
| 89071-50081 |
Module Set, Transmitter Sub-assy, Door Control
2004-06 → 2005-10
ended
|
MCV30 | ¥17,800 | |
| 89071-50081 |
Module Set, Transmitter Sub-assy, Door Control
2005-11 → 2006-03
ended
|
MCV30 | ¥17,800 | |
| 89745A — Battery, Transmitter | ||||
| 89745-40010 |
Battery, Transmitter
2001-07 → 2004-06
ended
|
MCV30 | ¥440 | |
| 89745-40010 |
Battery, Transmitter
2004-06 → —
|
MCV30 | ¥440 | |
| 89751A — Cover, Transmitter Housing | ||||
| 89751-50010 |
Cover, Transmitter Housing
2001-07 → 2004-06
ended
|
MCV30 | ¥940 | |
| 89751-50010 |
Cover, Transmitter Housing
2004-06 → 2005-10
ended
|
MCV30 | ¥940 | |
| 89751-50011 |
Cover, Transmitter Housing
2005-11 → 2006-03
ended
|
MCV30 | ¥650 | |
| 89752A — Case, Transmitter Housing | ||||
| 89752-33080 |
Case, Transmitter Housing
2001-07 → 2004-06
ended
|
MCV30 | ¥12,400 | |
| 89752-33080 note |
Case, Transmitter Housing
2004-06 → 2006-03
ended
|
MCV30 | ¥12,400 | |
| 89786B — Transmitter, Transponder Key Sub | ||||
| 89786-50070 note |
Transmitter, Transponder Key Sub
2001-07 → 2004-06
ended
|
MCV30 | ¥12,600 | |
| 89786-50070 note |
Transmitter, Transponder Key Sub
2004-06 → 2006-03
ended
|
MCV30 | ¥12,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
