Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

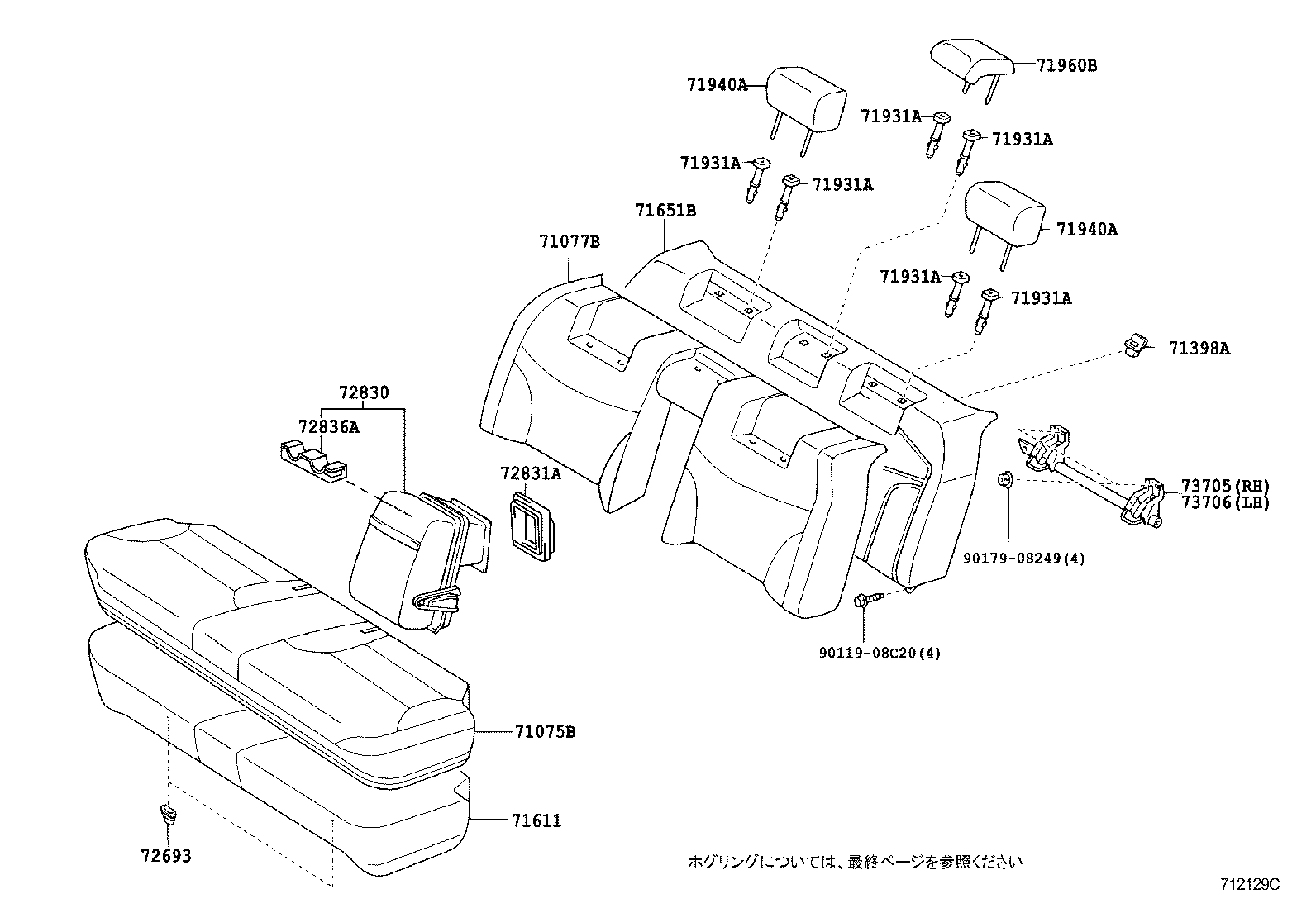

Exploded illustration 712129C 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (8 parts) 71611 — PAD, REAR SEAT CUSHION (2 parts) 72831A — FRAME, REAR SEAT CENTER ARMREST (2 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (8 parts) 72836A — PANEL, REAR SEAT CENTER ARMREST, NO.4 (1 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (8 parts) 71651B — PAD, REAR SEATBACK(FOR BENCH TYPE) (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71940A — HEADREST ASSY, REAR SEAT (8 parts) 71940A — HEADREST ASSY, REAR SEAT (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (8 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (8 parts) 71398A — HOLDER, REAR SEATBACK (2 parts) 73705 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH (2 parts) 73706 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH (2 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (2 parts) 9017908249 — not listed in this catalogue 9011908C20 — not listed in this catalogue
712129C · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-33470-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥71,500
71075-33470-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥71,500
71075-33500-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥165,000
71075-33500-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥165,000
71075-33470-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥71,500
71075-33470-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥71,500
71075-33690-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥166,000
71075-33690-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥166,000
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71077-33690-A1 note Cover, Rear Seatback (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥75,500
71077-33690-C1 note Cover, Rear Seatback (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥75,500
71077-33710-A1 note Cover, Rear Seatback (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥176,000
71077-33710-C1 note Cover, Rear Seatback (FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥176,000
71077-33850-A0 note Cover, Rear Seatback (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥178,000
71077-33850-C0 note Cover, Rear Seatback (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥178,000
71077-33860-A0 note Cover, Rear Seatback (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥75,500
71077-33860-C0 note Cover, Rear Seatback (FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥75,500
71398A — Holder, Rear Seatback
71398-33010 Holder, Rear Seatback
2001-07 → 2004-06 ended
MCV30 ¥220
71398-33010-C0 note Holder, Rear Seatback
2004-06 → 2006-03 ended
MCV30 ¥240
71611 — Pad, Rear Seat Cushion
71503-33050 Pad, Rear Seat Cushion
2001-07 → 2004-06 ended
MCV30 ¥35,600
71503-33050 Pad, Rear Seat Cushion
2004-06 → 2006-03 ended
MCV30 ¥35,600
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
71507-33030 Pad, Rear Seatback(FOR BENCH TYPE)
2001-07 → 2004-06 ended
MCV30 ¥47,700
71507-33040 Pad, Rear Seatback(FOR BENCH TYPE)
2004-06 → 2006-03 ended
MCV30 ¥51,000
71931A — Support, Rear Seat Headrest
71930-42020-A0 note Support, Rear Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Rear Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,250
71931-42020-A0 note Support, Rear Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥640
71931-42020-C0 note Support, Rear Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥480
71930-42020-A3 note Support, Rear Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Rear Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,250
71931-42020-A3 note Support, Rear Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥770
71931-42020-C0 note Support, Rear Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥480
71940A — Headrest Assy, Rear Seat
71940-33480-A0 note Headrest Assy, Rear Seat
2001-07 → 2004-06 ended
MCV30 ¥29,600
71940-33480-C0 note Headrest Assy, Rear Seat
2001-07 → 2004-06 ended
MCV30 ¥29,600
71940-33540-A0 note Headrest Assy, Rear Seat
2001-07 → 2004-06 ended
MCV30 ¥37,400
71940-33540-C0 note Headrest Assy, Rear Seat
2001-07 → 2004-06 ended
MCV30 ¥37,400
71940-33480-A1 note Headrest Assy, Rear Seat
2004-06 → 2006-03 ended
MCV30 ¥29,600
71940-33480-C0 note Headrest Assy, Rear Seat
2004-06 → 2006-03 ended
MCV30 ¥29,600
71940-33650-A0 note Headrest Assy, Rear Seat
2004-06 → 2006-03 ended
MCV30 ¥37,400
71940-33650-C0 note Headrest Assy, Rear Seat
2004-06 → 2006-03 ended
MCV30 ¥37,400
71960B — Headrest Assy, Rear Seat, Center
71940-33550-A0 note Headrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥23,900
71940-33550-C0 note Headrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥23,900
71940-33570-A0 note Headrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥30,100
71940-33570-C0 note Headrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥30,100
71940-33550-A1 note Headrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥23,900
71940-33550-C0 note Headrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥23,900
71940-33660-A0 note Headrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥33,300
71940-33660-C0 note Headrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥33,300
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2001-07 → 2004-06 ended
MCV30 ¥220
72693-12080 Hook, Rear Seat Cushion Lock
2004-06 → 2006-03 ended
MCV30 ¥220
72830 — Armrest Assy, Rear Seat, Center
72830-33460-A0 note Armrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥70,900
72830-33460-C0 note Armrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥70,900
72830-33470-A0 note Armrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥106,000
72830-33470-C0 note Armrest Assy, Rear Seat, Center
2001-07 → 2004-06 ended
MCV30 ¥106,000
72830-33460-A1 note Armrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥70,900
72830-33460-C0 note Armrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥70,900
72830-33530-A0 note Armrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥106,000
72830-33530-C0 note Armrest Assy, Rear Seat, Center
2004-06 → 2006-03 ended
MCV30 ¥106,000
72831A — Frame, Rear Seat Center Armrest
72831-33070 Frame, Rear Seat Center Armrest
2001-07 → 2004-06 ended
MCV30 ¥2,420
72831-33070 Frame, Rear Seat Center Armrest
2004-06 → 2006-03 ended
MCV30 ¥2,420
72836A — Panel, Rear Seat Center Armrest, NO.4
72836-33020 Panel, Rear Seat Center Armrest, NO.4
2004-06 → 2006-03 ended
MCV30 ¥2,380
73705 — Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705-33020 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2001-07 → 2004-06 ended
MCV30 ¥6,500
73705-33020 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2004-06 → 2006-03 ended
MCV30 ¥6,500
73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH
73706-33020 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2001-07 → 2004-06 ended
MCV30 ¥6,500
73706-33020 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2004-06 → 2006-03 ended
MCV30 ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
