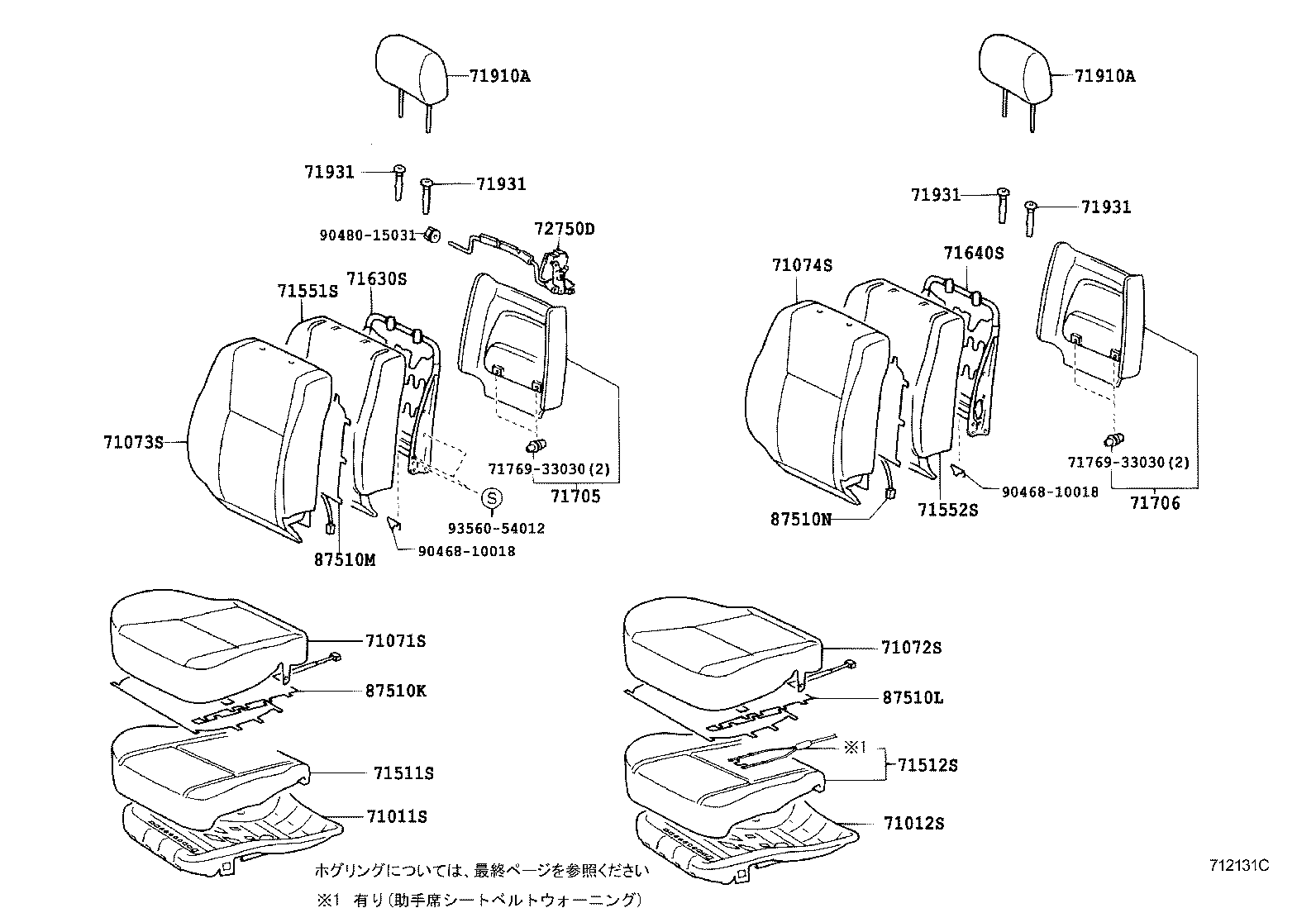

Exploded illustration 712131C 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (16 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (2 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 9048015031 — not listed in this catalogue 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 7176933030 — not listed in this catalogue 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (22 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (6 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (20 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (4 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 7176933030 — not listed in this catalogue 9046810018 — not listed in this catalogue 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (2 parts) 71012S — FRAME SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (2 parts) 9046810018 — not listed in this catalogue 9356054012 — not listed in this catalogue 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (4 parts) 71011S — FRAME SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (8 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (2 parts)
712131C · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
115 parts on this figure
Part number Description Fitment Price
71011S — Frame Sub-assy, Front Seat Cushion, RH
71011-33020 Frame Sub-assy, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥10,900
71012S — Frame Sub-assy, Front Seat Cushion, LH
71011-33020 Frame Sub-assy, Front Seat Cushion, LH
2001-07 → 2004-06 ended
MCV30 ¥10,900
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-3T140-A1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥43,200
71071-3T160-A2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥112,000
71071-3T160-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥112,000
71071-33B90-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71071-33B90-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71071-33D10-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71071-33D10-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-3T140-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥43,200
71071-3T140-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥43,200
71072-3T090-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T090-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T120-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥112,000
71072-3T120-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥112,000
71072-3T120-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥112,000
71072-3T120-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥112,000
71072-3T170-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T170-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥43,200
71072-3T170-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T170-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥43,200
71072-33C60-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71072-33C60-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71072-33C70-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71072-33C70-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71072-33D80-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥43,200
71072-33D80-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥43,200
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71027-33010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
71027-33010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
71027-33010-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
71027-33010-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
71027-33020-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
71027-33020-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
71027-33040-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33040-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
71027-33040-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
71027-33040-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33050-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33050-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71073-33F10-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71073-33F10-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71073-33F60-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71073-33F60-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
70169-33010-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥62,000
70169-33010-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥62,000
70169-33010-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥62,000
70169-33010-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥62,000
70169-33020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
70169-33020-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
70169-33040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
70169-33040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
70169-33040-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
70169-33040-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
70169-33060-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
70169-33060-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
70169-33060-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
70169-33060-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
71027-33020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥61,900
71027-33020-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥61,900
71027-33050-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33050-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71074-33E90-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71074-33E90-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71074-33F40-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71074-33F40-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-33170 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥18,200
71501-33040 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥18,400
71501-33050 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥13,300
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71501-33010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥25,000
71502-33040 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥17,100
71502-33050 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥20,700
71502-33060 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥17,900
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-33150 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥12,600
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-33150 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥12,600
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-33150 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥18,600
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71630-33140 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥18,600
71705 — Board Sub-assy, Front Seatback, RH
71705-33260-A0 note Board Sub-assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33260-C0 note Board Sub-assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33410-A0 note Board Sub-assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥17,200
71705-33410-C0 note Board Sub-assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71706 — Board Sub-assy, Front Seatback, LH
71705-33260-A0 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33260-C0 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33270-A1 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33270-C1 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33420-A0 note Board Sub-assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71705-33420-C0 note Board Sub-assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71910A — Headrest Assy, Front Seat
71910-33470-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33490-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33490-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33470-A1 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33540-A0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71910-33540-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71931 — Support, Front Seat Headrest
71930-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,250
71931-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥640
71931-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥480
71930-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,250
71931-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥770
71931-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥480
72750D — Adjuster Assy, Lumbar Support, RH
72750-33060 Adjuster Assy, Lumbar Support, RH
2001-07 → 2004-06 ended
MCV30 ¥29,500
72750-48010 Adjuster Assy, Lumbar Support, RH
2004-06 → 2006-03 ended
MCV30 ¥29,200
87510K — Heater Assy, Front Seat Cushion, RH
87510-33130 Heater Assy, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥26,400
87510-33150 Heater Assy, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥26,400
87510L — Heater Assy, Front Seat Cushion, LH
87510-33130 Heater Assy, Front Seat Cushion, LH
2001-07 → 2004-06 ended
MCV30 ¥26,400
87510-33150 Heater Assy, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥26,400
87510M — Heater Assy, Front Seatback, RH
87510-33140 Heater Assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥19,900
87530-33010 Heater Assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥19,900
87510N — Heater Assy, Front Seatback, LH
87510-33140 Heater Assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥19,900
87530-33010 Heater Assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥19,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
