Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

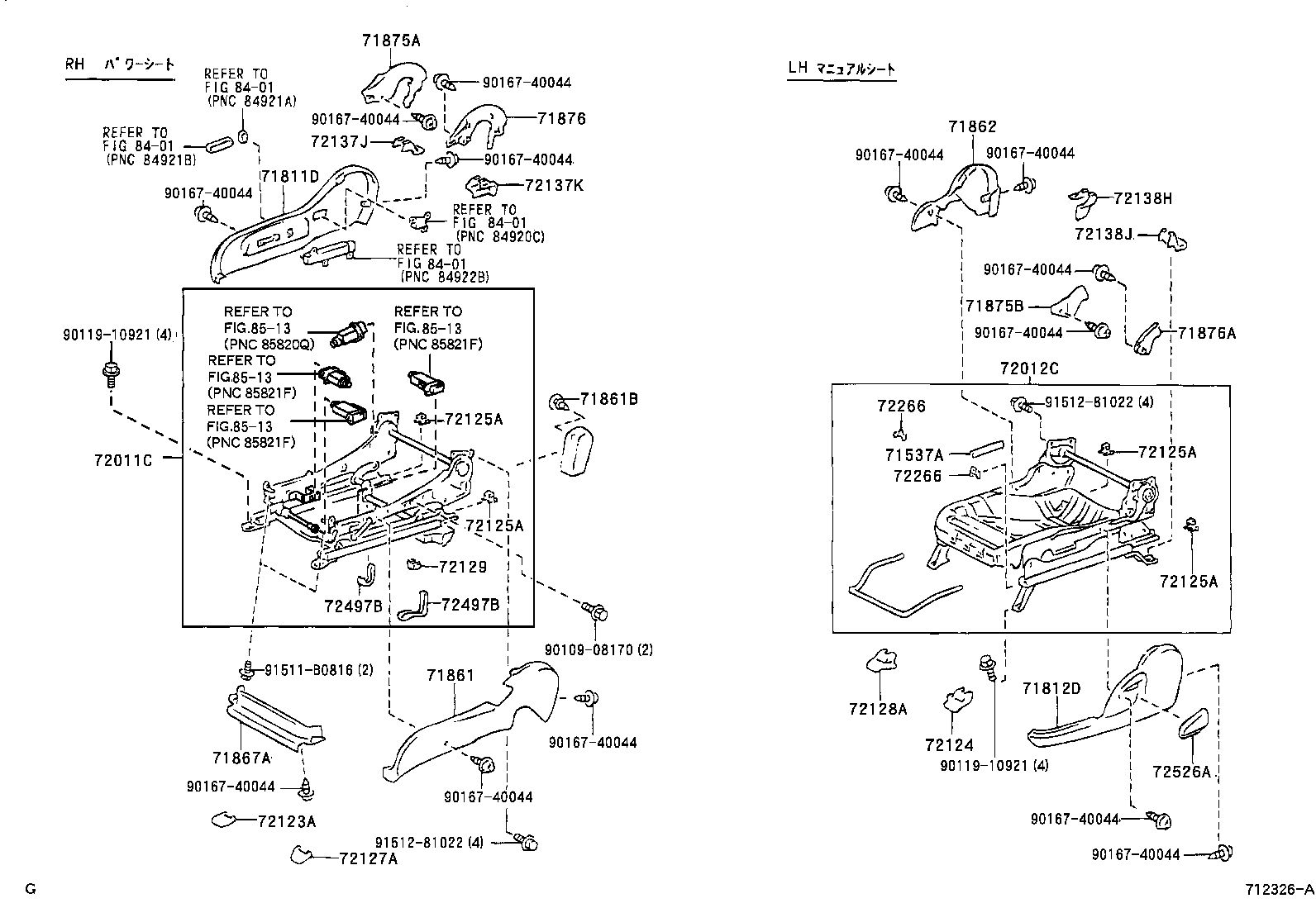

Exploded illustration 712326A 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (4 parts) 9016740044 — not listed in this catalogue 8401 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 9016740044 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (8 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (4 parts) 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (6 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (4 parts) 9016740044 — not listed in this catalogue 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (8 parts) 8401 — not listed in this catalogue 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (8 parts) 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (8 parts) 8513 — not listed in this catalogue 8513 — not listed in this catalogue 9016740044 — not listed in this catalogue 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (8 parts) 9011910921 — not listed in this catalogue 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (2 parts) 8513 — not listed in this catalogue 71861B — CLIP(FOR FRONT SEAT SHIELD, RH) (2 parts) 9151281022 — not listed in this catalogue 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 8513 — not listed in this catalogue 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (1 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (2 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (2 parts) 9010908170 — not listed in this catalogue 91511B0816 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (4 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (16 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (8 parts) 9016740044 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (8 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (4 parts) 9011910921 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 9151281022 — not listed in this catalogue 9016740044 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (4 parts)
712326A · 31 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
71537A — Protector, Front Seat Cushion
71537-33010 Protector, Front Seat Cushion
2001-07 → 2004-06 ended
MCV30 ¥410
71811D — Shield, Front Seat Cushion, RH
71811-33150-A0 note Shield, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥4,860
71811-33150-C0 note Shield, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥4,860
71811-33160-A0 note Shield, Front Seat Cushion, RH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71811-33160-C0 note Shield, Front Seat Cushion, RH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71811-33190-A0 note Shield, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71811-33190-C0 note Shield, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71812D — Shield, Front Seat Cushion, LH
71812-12360-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-12360-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-A0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥3,890
71812-33130-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-C0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥3,890
71812-33170-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71812-33170-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71812-33180-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,860
71812-33180-A0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥4,860
71812-33180-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,860
71812-33180-C0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥4,860
71812-33220-A0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,850
71812-33220-C0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71812-33230-A0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,120
71812-33230-C0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,120
71861 — Shield, Front Seat Cushion, Inner RH
71861-33030-A0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71861-33030-C0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71861-33070-A0 note Shield, Front Seat Cushion, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥2,110
71861-33070-C0 note Shield, Front Seat Cushion, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥2,110
71861B — Clip(FOR FRONT SEAT SHIELD, RH)
90467-05098-22 note Clip(FOR FRONT SEAT SHIELD, RH)
2001-07 → 2004-06 ended
MCV30 ¥160
90467-05098-A1 note Clip(FOR FRONT SEAT SHIELD, RH)
2001-07 → 2004-06 ended
MCV30 ¥160
71862 — Shield, Front Seat Cushion, Inner LH
71862-12230-A0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥2,460
71862-12230-C0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥2,460
71862-33040-A0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71862-33040-C0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71862-33050-A1 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,460
71862-33050-C0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,460
71862-33090-A0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,120
71862-33090-C0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥1,470
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-33030-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71867-33030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71867-33040-A1 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71867-33040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71875A — Cover, Reclining Adjuster Inside, RH
71875-33030-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-33030-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-58030-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥740
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥500
71875B — Cover, Reclining Adjuster Inside, RH
71875-33030-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-33030-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-47020-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥850
71875-47020-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥870
71875-52030-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥480
71875-52030-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥480
71875-60150-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥610
71875-60150-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥410
71876 — Cover, Reclining Adjuster Inside, LH
71876-33040-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-33040-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-60150-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥610
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥410
71876A — Cover, Reclining Adjuster Inside, LH
71876-33040-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-33040-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-47020-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥910
71876-47020-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥910
71876-52030-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥480
71876-52030-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥480
71876-60170-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥610
71876-60170-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥410
72011C — Adjuster Sub-assy, Front Seat, RH
72010-33270 Adjuster Sub-assy, Front Seat, RH
2001-07 → 2004-06 ended
MCV30 ¥141,000
72012C — Adjuster Sub-assy, Front Seat, LH
72020-33230 Adjuster Sub-assy, Front Seat, LH
2001-07 → 2004-06 ended
MCV30 ¥49,100
72020-33240 note Adjuster Sub-assy, Front Seat, LH
2001-07 → 2004-06 ended
MCV30 ¥141,000
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-33010-A0 note Cover, Seat Track Bracket, Outer Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33010-C0 note Cover, Seat Track Bracket, Outer Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33050-A1 note Cover, Seat Track Bracket, Outer Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33050-C0 note Cover, Seat Track Bracket, Outer Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-33020-A0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33020-C0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33040-A0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33040-C0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33040-A1 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33040-C0 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33060-A1 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33060-C0 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72125A — Cover, Seat Track, Upper Rear
72125-33020 note Cover, Seat Track, Upper Rear
2001-07 → 2004-06 ended
MCV30 ¥510
72125-33030 note Cover, Seat Track, Upper Rear
2001-07 → 2004-06 ended
MCV30 ¥380
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-33020-A0 note Cover, Seat Track Bracket, Inner Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33020-C0 note Cover, Seat Track Bracket, Inner Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33060-A1 note Cover, Seat Track Bracket, Inner Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33060-C0 note Cover, Seat Track Bracket, Inner Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-33010-A0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33010-C0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33030-A0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33030-C0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33030-A1 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33030-C0 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33050-A1 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33050-C0 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72129 — Protector, Seat Track Lower Rail, NO.1
72129-33050 Protector, Seat Track Lower Rail, NO.1
2001-07 → 2004-06 ended
MCV30 ¥440
72137J — Cover, Front Seat Track, RH Rear Outer
72137-33050-A0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33050-C0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33060-A1 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72137-33060-C0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72137K — Cover, Front Seat Track, RH Rear Inner
72157-33060-A0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72157-33060-C0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72157-33070-A1 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72157-33070-C0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72138H — Cover, Front Seat Track, LH Rear Inner
72158-33070-A0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72158-33070-C0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72158-33080-A0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥870
72158-33080-C0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥870
72158-33080-A1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥870
72158-33080-C0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥870
72158-33090-A1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72158-33090-C0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72138J — Cover, Front Seat Track, LH Rear Outer
72137-33050-A0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33050-C0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72138-33030-A0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥740
72138-33030-C0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥740
72138-33030-A1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥740
72138-33030-C0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥740
72138-33040-A1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72138-33040-C0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72266 — Cover, Seat Track Upper Rail, LH
72265-13040 Cover, Seat Track Upper Rail, LH
2001-07 → 2004-06 ended
MCV30 ¥360
72497B — Cover, Vertical Adjuster Bracket, RH
72498-33010 note Cover, Vertical Adjuster Bracket, RH
2001-07 → 2004-06 ended
MCV30 ¥510
72498-33020 note Cover, Vertical Adjuster Bracket, RH
2001-07 → 2004-06 ended
MCV30 ¥380
72526A — Handle, Reclining Adjuster Release, LH
72526-47020-A0 note Handle, Reclining Adjuster Release, LH
2001-07 → 2004-06 ended
MCV30 ¥940
72526-47020-C0 note Handle, Reclining Adjuster Release, LH
2001-07 → 2004-06 ended
MCV30 ¥780
72526-58040-A1 note Handle, Reclining Adjuster Release, LH
2004-06 → 2006-03 ended
MCV30 ¥870
72526-58040-C0 note Handle, Reclining Adjuster Release, LH
2004-06 → 2006-03 ended
MCV30 ¥870
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
