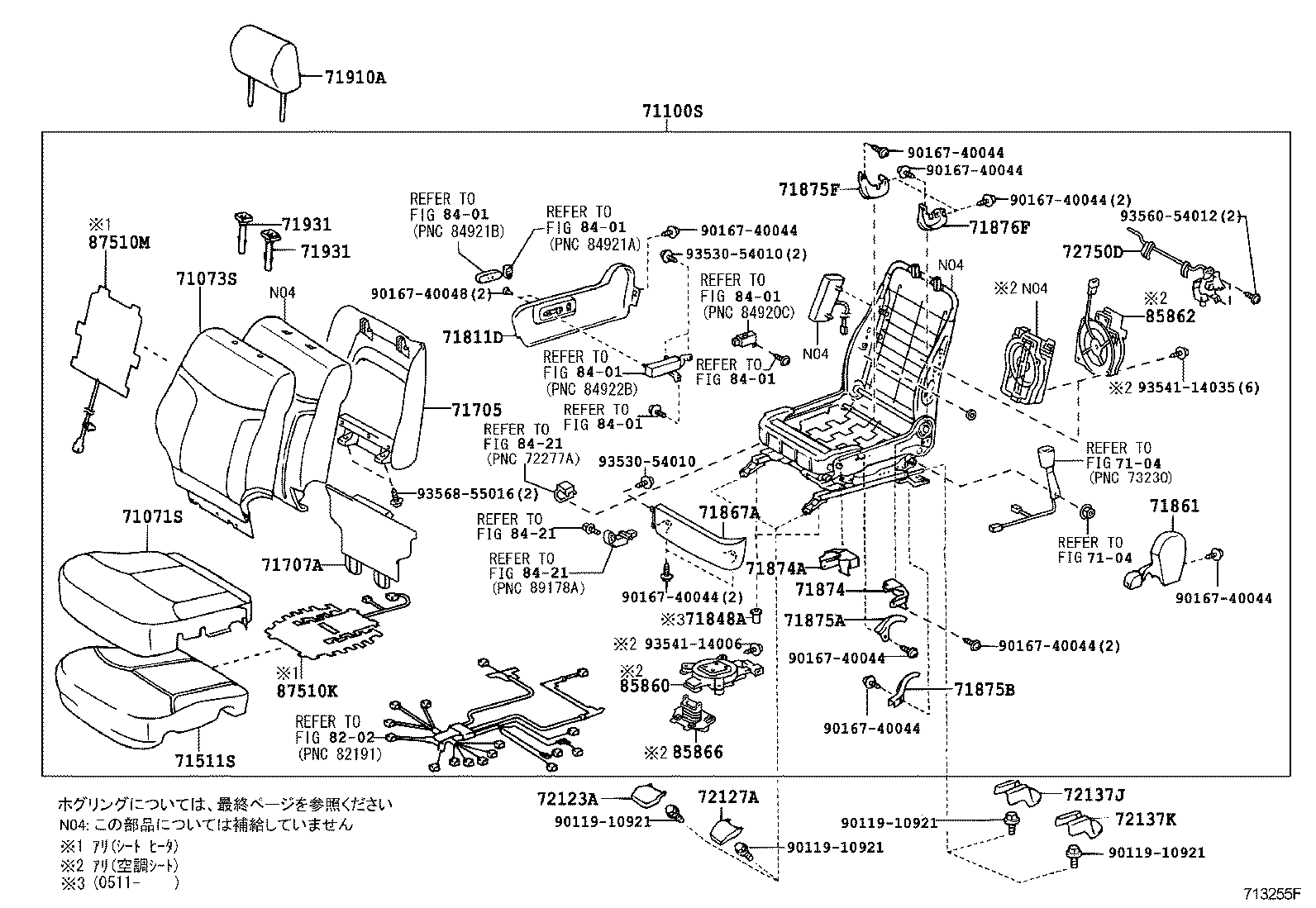

Exploded illustration 713255F 71100S — SEAT ASSY, FRONT RH (4 parts) 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (2 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (16 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (8 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (6 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (4 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (4 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (8 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (4 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (4 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (4 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8421 — not listed in this catalogue 8421 — not listed in this catalogue 8421 — not listed in this catalogue 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 9016740048 — not listed in this catalogue 9353054010 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 85860 — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL (1 parts) 85866 — DUCT, SEAT CUSHION CLIMATE CONTROL, RH (1 parts) 9354114006 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (4 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (2 parts) 85862 — BLOWER, SEAT CLIMATE CONTROL, RH (2 parts) 9354114035 — not listed in this catalogue 9356054012 — not listed in this catalogue 9016740044 — not listed in this catalogue 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (4 parts) 9353054010 — not listed in this catalogue 9356855016 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71707A — COVER SUB-ASSY, FRONT SEATBACK BOARD (2 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (1 parts)
713255F · 29 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-3T140-A1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥43,200
71071-3T160-A2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥112,000
71071-3T160-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥112,000
71071-33B90-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71071-33B90-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71071-33D10-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71071-33D10-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71027-33010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
71027-33010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
71027-33010-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
71027-33010-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
71027-33020-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
71027-33020-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
71027-33040-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33040-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
71027-33040-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33040-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
71027-33050-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33050-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71073-33F10-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71073-33F10-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71073-33F60-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71073-33F60-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71100S — Seat Assy, Front RH
71100-33A90-A1 note Seat Assy, Front RH
2004-06 → 2006-03 ended
MCV30 ¥457,000
71100-33A90-C1 note Seat Assy, Front RH
2004-06 → 2006-03 ended
MCV30 ¥457,000
71100-33B00-A1 note Seat Assy, Front RH
2004-06 → 2006-03 ended
MCV30 ¥427,000
71100-33B00-C1 note Seat Assy, Front RH
2004-06 → 2006-03 ended
MCV30 ¥427,000
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-33170 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥18,200
71501-33040 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥18,400
71501-33050 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥13,300
71705 — Board Sub-assy, Front Seatback, RH
71705-33260-A0 note Board Sub-assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33260-C0 note Board Sub-assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33410-A0 note Board Sub-assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥17,200
71705-33410-C0 note Board Sub-assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71707A — Cover Sub-assy, Front Seatback Board
71707-33060-A0 note Cover Sub-assy, Front Seatback Board
2004-06 → 2006-03 ended
MCV30 ¥7,400
71707-33060-C0 note Cover Sub-assy, Front Seatback Board
2004-06 → 2006-03 ended
MCV30 —
71811D — Shield, Front Seat Cushion, RH
71811-33150-A0 note Shield, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥4,860
71811-33150-C0 note Shield, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥4,860
71811-33160-A0 note Shield, Front Seat Cushion, RH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71811-33160-C0 note Shield, Front Seat Cushion, RH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71811-33190-A0 note Shield, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71811-33190-C0 note Shield, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71848A — Cap, Seat Adjuster Cover, RH
71848-33010 Cap, Seat Adjuster Cover, RH
2005-11 → 2006-03 ended
MCV30 ¥100
71861 — Shield, Front Seat Cushion, Inner RH
71861-33030-A0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71861-33030-C0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71861-33070-A0 note Shield, Front Seat Cushion, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥2,110
71861-33070-C0 note Shield, Front Seat Cushion, Inner RH
2004-06 → 2006-03 ended
MCV30 ¥2,110
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-33030-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71867-33030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71867-33040-A1 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71867-33040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71874 — Shield, Front Seat Cushion, Lower LH
71874-48020 note Shield, Front Seat Cushion, Lower LH
2004-06 → —
MCV30 ¥1,210
71874-48020 Shield, Front Seat Cushion, Lower LH
2004-06 → —
MCV30 ¥1,210
71874A — Shield, Front Seat Cushion, Lower LH
71874-48050 note Shield, Front Seat Cushion, Lower LH
2004-06 → 2006-03 ended
MCV30 ¥1,210
71874-48050 Shield, Front Seat Cushion, Lower LH
2004-06 → 2006-03 ended
MCV30 ¥1,210
71875A — Cover, Reclining Adjuster Inside, RH
71875-33030-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-33030-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-58030-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥740
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥500
71875B — Cover, Reclining Adjuster Inside, RH
71875-33030-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-33030-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71875-47020-A0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥850
71875-47020-C0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2004-06 ended
MCV30 ¥870
71875-52030-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥480
71875-52030-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥480
71875-60150-A1 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥610
71875-60150-C0 note Cover, Reclining Adjuster Inside, RH
2004-06 → 2006-03 ended
MCV30 ¥410
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-58050 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2004-06 → 2006-03 ended
MCV30 ¥740
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876-58050 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2004-06 → 2006-03 ended
MCV30 ¥650
71876-58060 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2004-06 → 2006-03 ended
MCV30 ¥740
71910A — Headrest Assy, Front Seat
71910-33470-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33490-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33490-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33470-A1 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33540-A0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71910-33540-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71931 — Support, Front Seat Headrest
71930-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,250
71931-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥640
71931-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥480
71930-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,250
71931-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥770
71931-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥480
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-33010-A0 note Cover, Seat Track Bracket, Outer Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33010-C0 note Cover, Seat Track Bracket, Outer Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33050-A1 note Cover, Seat Track Bracket, Outer Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33050-C0 note Cover, Seat Track Bracket, Outer Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-33020-A0 note Cover, Seat Track Bracket, Inner Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33020-C0 note Cover, Seat Track Bracket, Inner Front RH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33060-A1 note Cover, Seat Track Bracket, Inner Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33060-C0 note Cover, Seat Track Bracket, Inner Front RH
2004-06 → 2006-03 ended
MCV30 ¥870
72137J — Cover, Front Seat Track, RH Rear Outer
72137-33050-A0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33050-C0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33060-A1 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72137-33060-C0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72137K — Cover, Front Seat Track, RH Rear Inner
72157-33060-A0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72157-33060-C0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72157-33070-A1 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72157-33070-C0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72750D — Adjuster Assy, Lumbar Support, RH
72750-33060 Adjuster Assy, Lumbar Support, RH
2001-07 → 2004-06 ended
MCV30 ¥29,500
72750-48010 Adjuster Assy, Lumbar Support, RH
2004-06 → 2006-03 ended
MCV30 ¥29,200
85860 — Blower Assy, Seat Cushion Climate Control
85860-30010 Blower Assy, Seat Cushion Climate Control
2004-06 → 2006-03 ended
MCV30 —
85862 — Blower, Seat Climate Control, RH
85862-30010 note Blower, Seat Climate Control, RH
2004-06 → 2006-03 ended
MCV30 —
85867-30010 note Blower, Seat Climate Control, RH
2004-06 → 2006-03 ended
MCV30 —
85866 — Duct, Seat Cushion Climate Control, RH
85866-30010 Duct, Seat Cushion Climate Control, RH
2004-06 → 2006-03 ended
MCV30 —
87510K — Heater Assy, Front Seat Cushion, RH
87510-33130 Heater Assy, Front Seat Cushion, RH
2001-07 → 2004-06 ended
MCV30 ¥26,400
87510-33150 Heater Assy, Front Seat Cushion, RH
2004-06 → 2006-03 ended
MCV30 ¥26,400
87510M — Heater Assy, Front Seatback, RH
87510-33140 Heater Assy, Front Seatback, RH
2001-07 → 2004-06 ended
MCV30 ¥19,900
87530-33010 Heater Assy, Front Seatback, RH
2004-06 → 2006-03 ended
MCV30 ¥19,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
