Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

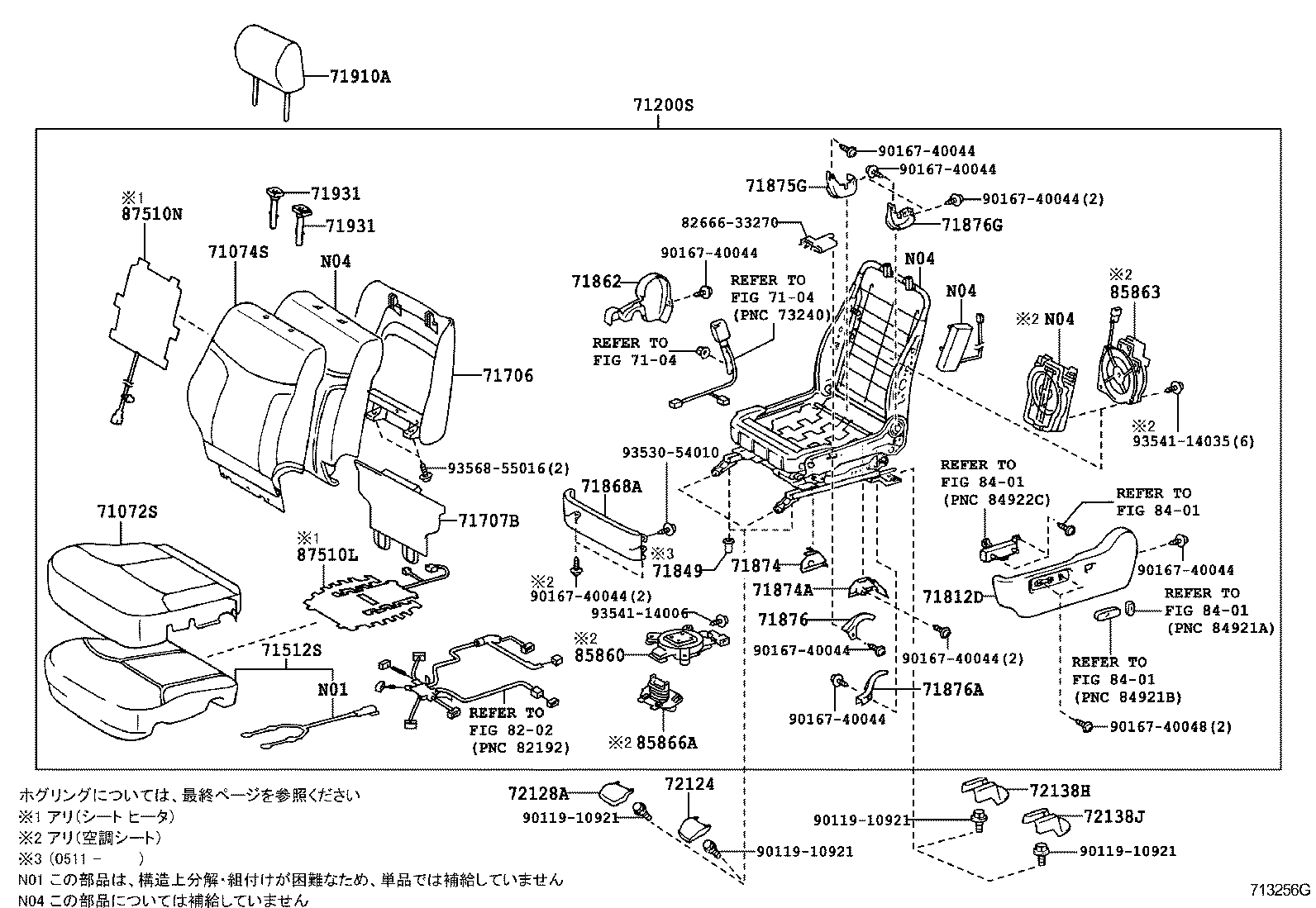

Exploded illustration 713256G 71200S — SEAT ASSY, FRONT LH (6 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (8 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (4 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (20 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (22 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (6 parts) 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (8 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (8 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (16 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (8 parts) 85863 — BLOWER, SEAT CLIMATE CONTROL, LH (2 parts) 85860 — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL (1 parts) 85866A — DUCT, SEAT CUSHION CLIMATE CONTROL, LH (1 parts) 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (8 parts) 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (8 parts) 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (1 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9353054010 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740048 — not listed in this catalogue 9016740044 — not listed in this catalogue 9354114006 — not listed in this catalogue 9016740044 — not listed in this catalogue 8266633270 — not listed in this catalogue 9354114035 — not listed in this catalogue 9356855016 — not listed in this catalogue 71707B — COVER SUB-ASSY, FRONT SEATBACK BOARD (2 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (4 parts)
713256G · 28 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
164 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-3T140-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥43,200
71071-3T140-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥43,200
71071-3T140-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥43,200
71072-3T090-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T090-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T120-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥112,000
71072-3T120-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥112,000
71072-3T120-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥112,000
71072-3T120-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥112,000
71072-3T170-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-3T170-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥43,200
71072-3T170-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥43,200
71072-3T170-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥43,200
71072-33C60-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71072-33C60-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥112,000
71072-33C70-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71072-33C70-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥43,200
71072-33D80-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥43,200
71072-33D80-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥43,200
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
70169-33010-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥62,000
70169-33010-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥62,000
70169-33010-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 30G ¥62,000
70169-33010-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥62,000
70169-33020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
70169-33020-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥61,900
70169-33040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
70169-33040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
70169-33040-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
70169-33040-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥147,000
70169-33060-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
70169-33060-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
70169-33060-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
MCV30 ¥62,000
70169-33060-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥62,000
71027-33020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥61,900
71027-33020-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 30G ¥61,900
71027-33050-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71027-33050-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
MCV30 ¥147,000
71074-33E90-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71074-33E90-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥62,000
71074-33F40-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71074-33F40-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥147,000
71200S — Seat Assy, Front LH
71200-33F70-A3 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 ¥317,000
71200-33F70-C3 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 ¥317,000
71200-33F80-A2 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 ¥583,000
71200-33F80-C2 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 ¥583,000
71200-33F90-A2 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 30G ¥427,000
71200-33F90-C2 note Seat Assy, Front LH
2004-06 → 2006-03 ended
MCV30 30G ¥427,000
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71501-33010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2001-07 → 2004-06 ended
MCV30 ¥25,000
71502-33040 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 30G ¥17,100
71502-33050 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥20,700
71502-33060 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-06 → 2006-03 ended
MCV30 ¥17,900
71706 — Board Sub-assy, Front Seatback, LH
71705-33260-A0 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33260-C0 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33270-A1 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33270-C1 note Board Sub-assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥10,200
71705-33420-A0 note Board Sub-assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71705-33420-C0 note Board Sub-assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥30,100
71707B — Cover Sub-assy, Front Seatback Board
71707-33070-A0 note Cover Sub-assy, Front Seatback Board
2004-06 → 2006-03 ended
MCV30 ¥7,400
71707-33070-C0 note Cover Sub-assy, Front Seatback Board
2004-06 → 2006-03 ended
MCV30 —
71812D — Shield, Front Seat Cushion, LH
71812-12360-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-12360-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-A0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥3,890
71812-33130-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥3,890
71812-33130-C0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥3,890
71812-33170-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71812-33170-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,850
71812-33180-A0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥4,860
71812-33180-A0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,860
71812-33180-C0 note Shield, Front Seat Cushion, LH
2001-07 → 2003-07 ended
MCV30 ¥4,860
71812-33180-C0 note Shield, Front Seat Cushion, LH
2003-07 → 2004-06 ended
MCV30 ¥4,860
71812-33220-A0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,850
71812-33220-C0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,860
71812-33230-A0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,120
71812-33230-C0 note Shield, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥4,120
71849 — Cap, Seat Adjuster Cover, LH
71848-33010 Cap, Seat Adjuster Cover, LH
2005-11 → 2006-03 ended
MCV30 ¥100
71862 — Shield, Front Seat Cushion, Inner LH
71862-12230-A0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥2,460
71862-12230-C0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥2,460
71862-33040-A0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71862-33040-C0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2004-06 ended
MCV30 ¥3,700
71862-33050-A1 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,460
71862-33050-C0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,460
71862-33090-A0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥2,120
71862-33090-C0 note Shield, Front Seat Cushion, Inner LH
2004-06 → 2006-03 ended
MCV30 ¥1,470
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71867-33030-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71867-33030-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2001-07 → 2004-06 ended
MCV30 ¥2,960
71868-33040-A1 note Shield, Front Seat Cushion, Inner NO.1 LH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71868-33040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2004-06 → 2006-03 ended
MCV30 ¥4,630
71874 — Shield, Front Seat Cushion, Lower LH
71874-48020 note Shield, Front Seat Cushion, Lower LH
2004-06 → —
MCV30 ¥1,210
71874-48020 Shield, Front Seat Cushion, Lower LH
2004-06 → —
MCV30 ¥1,210
71874A — Shield, Front Seat Cushion, Lower LH
71874-48050 note Shield, Front Seat Cushion, Lower LH
2004-06 → 2006-03 ended
MCV30 ¥1,210
71874-48050 Shield, Front Seat Cushion, Lower LH
2004-06 → 2006-03 ended
MCV30 ¥1,210
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-58060 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2004-06 → 2006-03 ended
MCV30 ¥740
71875-60140 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2004-06 → 2006-03 ended
MCV30 ¥740
71876 — Cover, Reclining Adjuster Inside, LH
71876-33040-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-33040-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-60150-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥610
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥410
71876A — Cover, Reclining Adjuster Inside, LH
71876-33040-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-33040-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥1,550
71876-47020-A0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥910
71876-47020-C0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2004-06 ended
MCV30 ¥910
71876-52030-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥480
71876-52030-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥480
71876-60170-A1 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥610
71876-60170-C0 note Cover, Reclining Adjuster Inside, LH
2004-06 → 2006-03 ended
MCV30 ¥410
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-60140 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2004-06 → —
MCV30 ¥740
71910A — Headrest Assy, Front Seat
71910-33470-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥32,700
71910-33490-A0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33490-C0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
MCV30 ¥40,300
71910-33470-A1 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33470-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥32,700
71910-33540-A0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71910-33540-C0 note Headrest Assy, Front Seat
2004-06 → 2006-03 ended
MCV30 ¥40,400
71931 — Support, Front Seat Headrest
71930-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥1,250
71931-42020-A0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥640
71931-42020-C0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
MCV30 ¥480
71930-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,260
71930-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥1,250
71931-42020-A3 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥770
71931-42020-C0 note Support, Front Seat Headrest
2004-06 → 2006-03 ended
MCV30 ¥480
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-33020-A0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33020-C0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33040-A0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33040-C0 note Cover, Seat Track Bracket, Outer Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33040-A1 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33040-C0 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33060-A1 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33060-C0 note Cover, Seat Track Bracket, Outer Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-33010-A0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33010-C0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥870
72123-33030-A0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33030-C0 note Cover, Seat Track Bracket, Inner Front LH
2001-07 → 2004-06 ended
MCV30 ¥940
72123-33030-A1 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33030-C0 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥940
72123-33050-A1 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72123-33050-C0 note Cover, Seat Track Bracket, Inner Front LH
2004-06 → 2006-03 ended
MCV30 ¥870
72138H — Cover, Front Seat Track, LH Rear Inner
72158-33070-A0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72158-33070-C0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥940
72158-33080-A0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥870
72158-33080-C0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
MCV30 ¥870
72158-33080-A1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥870
72158-33080-C0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥870
72158-33090-A1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72158-33090-C0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-03 ended
MCV30 ¥1,150
72138J — Cover, Front Seat Track, LH Rear Outer
72137-33050-A0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72137-33050-C0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥940
72138-33030-A0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥740
72138-33030-C0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
MCV30 ¥740
72138-33030-A1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥740
72138-33030-C0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥740
72138-33040-A1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
72138-33040-C0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-03 ended
MCV30 ¥940
85860 — Blower Assy, Seat Cushion Climate Control
85860-30010 Blower Assy, Seat Cushion Climate Control
2004-06 → 2006-03 ended
MCV30 —
85863 — Blower, Seat Climate Control, LH
85862-30010 note Blower, Seat Climate Control, LH
2004-06 → 2006-03 ended
MCV30 —
85867-30010 note Blower, Seat Climate Control, LH
2004-06 → 2006-03 ended
MCV30 —
85866A — Duct, Seat Cushion Climate Control, LH
85866-30010 Duct, Seat Cushion Climate Control, LH
2004-06 → 2006-03 ended
MCV30 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-33130 Heater Assy, Front Seat Cushion, LH
2001-07 → 2004-06 ended
MCV30 ¥26,400
87510-33150 Heater Assy, Front Seat Cushion, LH
2004-06 → 2006-03 ended
MCV30 ¥26,400
87510N — Heater Assy, Front Seatback, LH
87510-33140 Heater Assy, Front Seatback, LH
2001-07 → 2004-06 ended
MCV30 ¥19,900
87530-33010 Heater Assy, Front Seatback, LH
2004-06 → 2006-03 ended
MCV30 ¥19,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
