Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

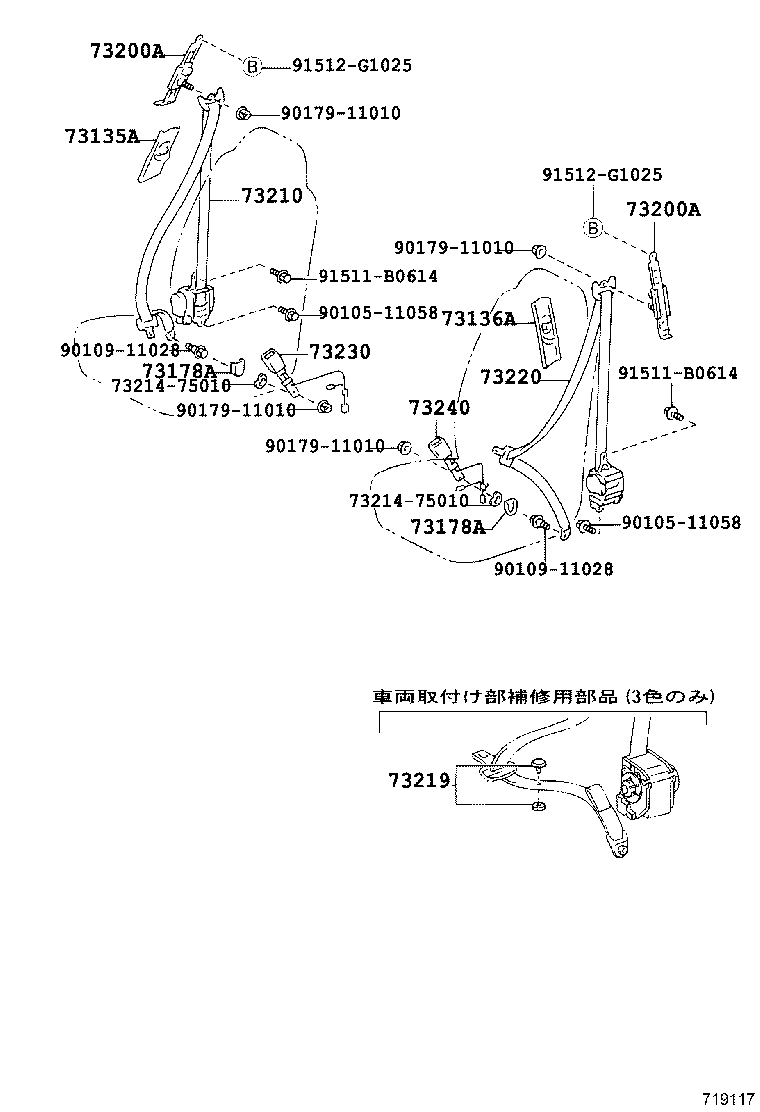

Exploded illustration 719117 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (2 parts) 73135A — COVER, SHOULDER BELT ANCHOR, RH (4 parts) 91512G1025 — not listed in this catalogue 9017911010 — not listed in this catalogue 73210 — BELT ASSY, FRONT SEAT OUTER, RH (4 parts) 91511B0614 — not listed in this catalogue 9017911010 — not listed in this catalogue 91512G1025 — not listed in this catalogue 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (2 parts) 9010911028 — not listed in this catalogue 73220 — BELT ASSY, FRONT SEAT OUTER, LH (4 parts) 73136A — COVER, SHOULDER BELT ANCHOR, LH (4 parts) 9010511058 — not listed in this catalogue 73240 — BELT ASSY, FRONT SEAT INNER, LH (8 parts) 9017911010 — not listed in this catalogue 9017911010 — not listed in this catalogue 73178A — CAP, SEAT BELT ANCHOR COVER (4 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (4 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (4 parts) 9010911028 — not listed in this catalogue 91511B0614 — not listed in this catalogue 9010511058 — not listed in this catalogue 73219 — STOPPER, TONGUE PLATE (6 parts) 7321475010 — not listed in this catalogue 7321475010 — not listed in this catalogue
719117 · 11 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
73135A — Cover, Shoulder Belt Anchor, RH
73023-33010-A0 note Cover, Shoulder Belt Anchor, RH
2001-07 → 2004-06 ended
MCV30 ¥2,190
73023-33010-B0 note Cover, Shoulder Belt Anchor, RH
2001-07 → 2004-06 ended
MCV30 ¥2,190
73023-33010-A2 note Cover, Shoulder Belt Anchor, RH
2004-06 → 2006-03 ended
MCV30 ¥2,190
73023-33010-B2 note Cover, Shoulder Belt Anchor, RH
2004-06 → 2006-03 ended
MCV30 ¥2,190
73136A — Cover, Shoulder Belt Anchor, LH
73024-33010-A0 note Cover, Shoulder Belt Anchor, LH
2001-07 → 2004-06 ended
MCV30 ¥2,190
73024-33010-B0 note Cover, Shoulder Belt Anchor, LH
2001-07 → 2004-06 ended
MCV30 ¥2,190
73024-33010-A2 note Cover, Shoulder Belt Anchor, LH
2004-06 → 2006-03 ended
MCV30 ¥2,190
73024-33010-B2 note Cover, Shoulder Belt Anchor, LH
2004-06 → 2006-03 ended
MCV30 ¥2,190
73178A — Cap, Seat Belt Anchor Cover
73233-33010-A1 note Cap, Seat Belt Anchor Cover
2001-07 → 2004-06 ended
MCV30 ¥390
73233-33010-C0 note Cap, Seat Belt Anchor Cover
2001-07 → 2004-06 ended
MCV30 ¥330
73233-33010-A3 note Cap, Seat Belt Anchor Cover
2004-06 → 2006-03 ended
MCV30 ¥510
73233-33010-C0 note Cap, Seat Belt Anchor Cover
2004-06 → 2006-03 ended
MCV30 ¥330
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-51020 Adjuster Assy, Front Shoulder Belt Anchor
2001-07 → 2004-06 ended
MCV30 ¥4,790
73200-51020 Adjuster Assy, Front Shoulder Belt Anchor
2004-06 → 2006-03 ended
MCV30 ¥4,790
73210 — Belt Assy, Front Seat Outer, RH
73210-33300-A0 note Belt Assy, Front Seat Outer, RH
2001-07 → 2004-06 ended
MCV30 ¥39,600
73210-33300-C1 note Belt Assy, Front Seat Outer, RH
2001-09 → 2004-06 ended
MCV30 ¥39,600
73210-33380-A0 note Belt Assy, Front Seat Outer, RH
2004-06 → 2006-03 ended
MCV30 ¥39,600
73210-33380-C1 note Belt Assy, Front Seat Outer, RH
2004-06 → 2006-03 ended
MCV30 ¥39,600
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2001-07 → 2004-06 ended
MCV30 ¥100
73219-33020 note Stopper, Tongue Plate
2001-07 → 2004-06 ended
MCV30 ¥100
73219-33030 note Stopper, Tongue Plate
2001-07 → 2004-06 ended
MCV30 ¥100
73219-33010 note Stopper, Tongue Plate
2004-06 → 2006-03 ended
MCV30 ¥100
73219-33020 note Stopper, Tongue Plate
2004-06 → 2006-03 ended
MCV30 ¥100
73219-33030 note Stopper, Tongue Plate
2004-06 → 2006-03 ended
MCV30 ¥100
73220 — Belt Assy, Front Seat Outer, LH
73220-33280-A0 note Belt Assy, Front Seat Outer, LH
2001-07 → 2004-06 ended
MCV30 ¥39,600
73220-33280-C1 note Belt Assy, Front Seat Outer, LH
2001-09 → 2004-06 ended
MCV30 ¥39,600
73220-33370-A0 note Belt Assy, Front Seat Outer, LH
2004-06 → 2006-03 ended
MCV30 ¥39,600
73220-33370-C1 note Belt Assy, Front Seat Outer, LH
2004-06 → 2006-03 ended
MCV30 ¥39,600
73230 — Belt Assy, Front Seat Inner, RH
73230-33320-A0 note Belt Assy, Front Seat Inner, RH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73230-33320-C0 note Belt Assy, Front Seat Inner, RH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73230-33560-A0 note Belt Assy, Front Seat Inner, RH
2004-06 → 2006-03 ended
MCV30 ¥8,200
73230-33560-C0 note Belt Assy, Front Seat Inner, RH
2004-06 → 2006-03 ended
MCV30 ¥8,200
73240 — Belt Assy, Front Seat Inner, LH
73230-33330-A0 note Belt Assy, Front Seat Inner, LH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73230-33330-C0 note Belt Assy, Front Seat Inner, LH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73240-33020-A0 note Belt Assy, Front Seat Inner, LH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73240-33020-C0 note Belt Assy, Front Seat Inner, LH
2001-07 → 2004-06 ended
MCV30 ¥5,800
73230-33450-A0 note Belt Assy, Front Seat Inner, LH
2004-06 → 2006-03 ended
MCV30 ¥5,800
73230-33450-C0 note Belt Assy, Front Seat Inner, LH
2004-06 → 2006-03 ended
MCV30 ¥5,800
73230-33460-A0 note Belt Assy, Front Seat Inner, LH
2004-06 → 2006-03 ended
MCV30 ¥5,800
73230-33460-C0 note Belt Assy, Front Seat Inner, LH
2004-06 → 2006-03 ended
MCV30 ¥5,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
