Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

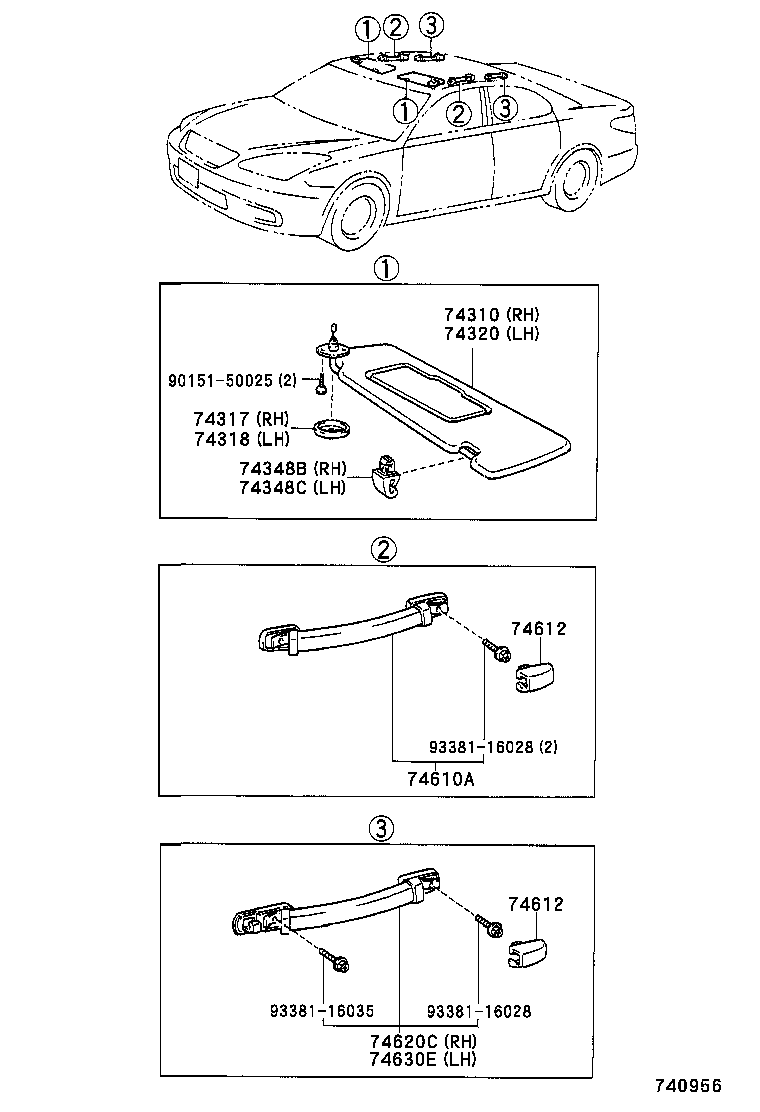

Exploded illustration 740956 74310 — VISOR ASSY, RH (4 parts) 74320 — VISOR ASSY, LH (4 parts) 9015150025 — not listed in this catalogue 74317 — COVER, VISOR BRACKET, RH (4 parts) 74318 — COVER, VISOR BRACKET, LH (4 parts) 74348B — HOLDER, VISOR, RH (4 parts) 74348C — HOLDER, VISOR, LH (4 parts) 74612 — COVER, ASSIST GRIP (4 parts) 9338116028 — not listed in this catalogue 74610A — GRIP SUB-ASSY, ASSIST (4 parts) 74612 — COVER, ASSIST GRIP (4 parts) 9338116035 — not listed in this catalogue 9338116028 — not listed in this catalogue 74620C — GRIP ASSY, ASSIST, REAR RH (4 parts) 74630E — GRIP ASSY, ASSIST, REAR LH (4 parts)
740956 · 11 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-3T070-A1 note Visor Assy, RH
2001-07 → 2004-06 ended
MCV30 ¥16,000
74310-3T070-B2 note Visor Assy, RH
2001-07 → 2004-06 ended
MCV30 ¥16,000
74310-3T070-A2 note Visor Assy, RH
2004-06 → 2006-03 ended
MCV30 ¥16,000
74310-3T070-B3 note Visor Assy, RH
2004-06 → 2006-03 ended
MCV30 ¥16,000
74317 — Cover, Visor Bracket, RH
74317-50010-A0 note Cover, Visor Bracket, RH
2001-07 → 2004-06 ended
MCV30 ¥300
74317-50010-B1 note Cover, Visor Bracket, RH
2001-07 → 2004-06 ended
MCV30 ¥300
74317-50010-A2 note Cover, Visor Bracket, RH
2004-06 → 2006-03 ended
MCV30 ¥300
74317-50010-B2 note Cover, Visor Bracket, RH
2004-06 → 2006-03 ended
MCV30 ¥300
74318 — Cover, Visor Bracket, LH
74317-50010-A0 note Cover, Visor Bracket, LH
2001-07 → 2004-06 ended
MCV30 ¥300
74317-50010-B1 note Cover, Visor Bracket, LH
2001-07 → 2004-06 ended
MCV30 ¥300
74317-50010-A2 note Cover, Visor Bracket, LH
2004-06 → 2006-03 ended
MCV30 ¥300
74317-50010-B2 note Cover, Visor Bracket, LH
2004-06 → 2006-03 ended
MCV30 ¥300
74320 — Visor Assy, LH
74320-3T040-A1 note Visor Assy, LH
2001-07 → 2004-06 ended
MCV30 ¥15,500
74320-3T040-B2 note Visor Assy, LH
2001-07 → 2004-06 ended
MCV30 ¥15,500
74320-3T040-A2 note Visor Assy, LH
2004-06 → 2006-03 ended
MCV30 ¥15,500
74320-3T040-B3 note Visor Assy, LH
2004-06 → 2006-03 ended
MCV30 ¥15,500
74348B — Holder, Visor, RH
74348-12040-A0 note Holder, Visor, RH
2001-07 → 2004-06 ended
MCV30 ¥760
74348-12040-B0 note Holder, Visor, RH
2001-07 → 2004-06 ended
MCV30 ¥520
74348-12040-A3 note Holder, Visor, RH
2004-06 → 2006-03 ended
MCV30 ¥760
74348-12040-B4 note Holder, Visor, RH
2004-06 → 2006-03 ended
MCV30 ¥760
74348C — Holder, Visor, LH
74348-12040-A0 note Holder, Visor, LH
2001-07 → 2004-06 ended
MCV30 ¥760
74348-12040-B0 note Holder, Visor, LH
2001-07 → 2004-06 ended
MCV30 ¥520
74348-12040-A3 note Holder, Visor, LH
2004-06 → 2006-03 ended
MCV30 ¥760
74348-12040-B4 note Holder, Visor, LH
2004-06 → 2006-03 ended
MCV30 ¥760
74610A — Grip Sub-assy, Assist
74610-30230-A0 note Grip Sub-assy, Assist
2001-07 → 2004-06 ended
MCV30 ¥2,290
74610-30230-B1 note Grip Sub-assy, Assist
2001-07 → 2004-06 ended
MCV30 ¥2,290
74610-30230-A1 note Grip Sub-assy, Assist
2004-06 → 2006-03 ended
MCV30 ¥2,290
74610-30230-B3 note Grip Sub-assy, Assist
2004-06 → 2006-03 ended
MCV30 ¥2,290
74612 — Cover, Assist Grip
74612-30171-A0 note Cover, Assist Grip
2001-07 → 2004-06 ended
MCV30 ¥260
74612-30171-B2 note Cover, Assist Grip
2001-07 → 2004-06 ended
MCV30 ¥260
74612-30171-A1 note Cover, Assist Grip
2004-06 → 2006-03 ended
MCV30 ¥260
74612-30171-B4 note Cover, Assist Grip
2004-06 → 2006-03 ended
MCV30 ¥260
74620C — Grip Assy, Assist, Rear RH
74620-33020-A0 note Grip Assy, Assist, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥2,700
74620-33020-B0 note Grip Assy, Assist, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥2,700
74620-33020-A1 note Grip Assy, Assist, Rear RH
2004-06 → 2006-03 ended
MCV30 ¥2,700
74620-33020-B2 note Grip Assy, Assist, Rear RH
2004-06 → 2006-03 ended
MCV30 ¥2,700
74630E — Grip Assy, Assist, Rear LH
74630-33020-A0 note Grip Assy, Assist, Rear LH
2001-07 → 2004-06 ended
MCV30 ¥2,700
74630-33020-B0 note Grip Assy, Assist, Rear LH
2001-07 → 2004-06 ended
MCV30 ¥2,700
74630-33020-A1 note Grip Assy, Assist, Rear LH
2004-06 → 2006-03 ended
MCV30 ¥2,700
74630-33020-B2 note Grip Assy, Assist, Rear LH
2004-06 → 2006-03 ended
MCV30 ¥2,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
