Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

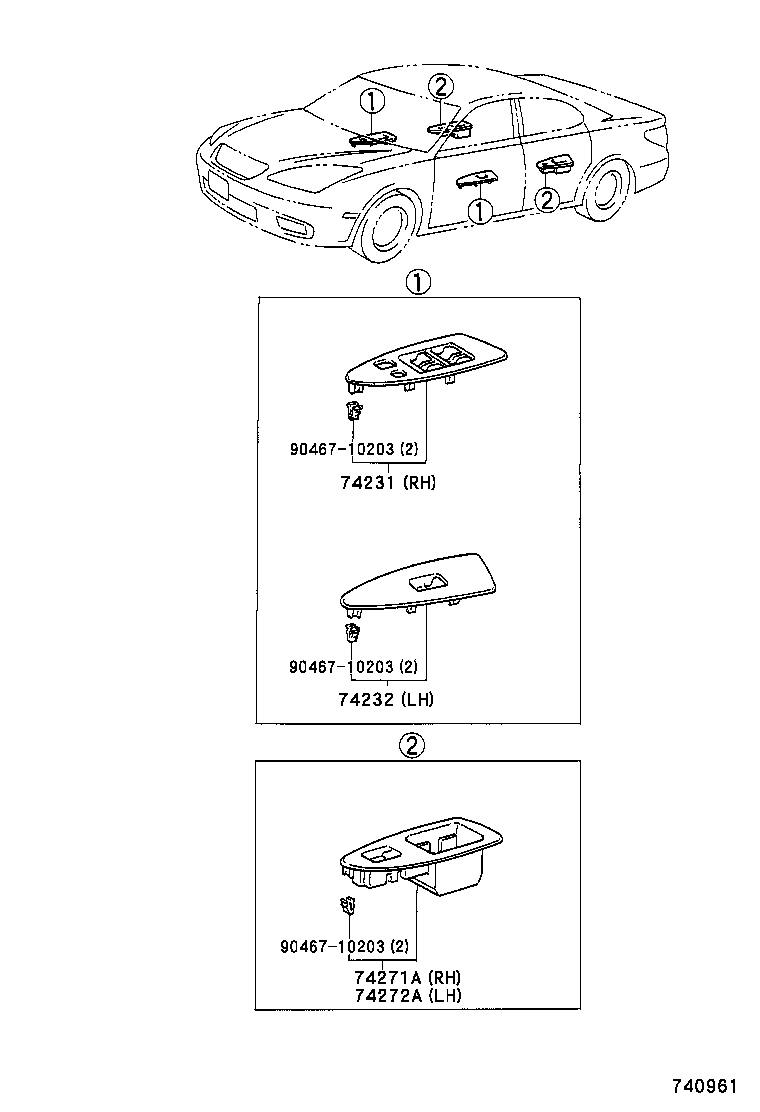

Exploded illustration 740961 9046710203 — not listed in this catalogue 74231 — PANEL, FRONT ARMREST BASE, UPPER RH (4 parts) 9046710203 — not listed in this catalogue 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (4 parts) 9046710203 — not listed in this catalogue 74271A — PANEL, REAR DOOR ARMREST BASE, UPPER RH (4 parts) 74272A — PANEL, REAR DOOR ARMREST BASE, UPPER LH (4 parts)
740961 · 4 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
74231 — Panel, Front Armrest Base, Upper RH
74231-33290-A0 note Panel, Front Armrest Base, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥1,650
74231-33290-C0 note Panel, Front Armrest Base, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥1,650
74231-33290-A1 note Panel, Front Armrest Base, Upper RH
2004-06 → 2006-03 ended
MCV30 ¥1,650
74231-33290-C0 note Panel, Front Armrest Base, Upper RH
2004-06 → 2006-03 ended
MCV30 ¥1,650
74232 — Panel, Front Armrest Base, Upper LH
74232-33240-A0 note Panel, Front Armrest Base, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥1,930
74232-33240-C0 note Panel, Front Armrest Base, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥1,930
74232-33240-A1 note Panel, Front Armrest Base, Upper LH
2004-06 → 2006-03 ended
MCV30 ¥1,930
74232-33240-C0 note Panel, Front Armrest Base, Upper LH
2004-06 → 2006-03 ended
MCV30 ¥1,930
74271A — Panel, Rear Door Armrest Base, Upper RH
74271-33130-A0 note Panel, Rear Door Armrest Base, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥3,220
74271-33130-C0 note Panel, Rear Door Armrest Base, Upper RH
2001-07 → 2004-06 ended
MCV30 ¥3,220
74271-33130-A1 note Panel, Rear Door Armrest Base, Upper RH
2004-06 → 2006-03 ended
MCV30 ¥3,220
74271-33130-C0 note Panel, Rear Door Armrest Base, Upper RH
2004-06 → 2006-03 ended
MCV30 ¥3,220
74272A — Panel, Rear Door Armrest Base, Upper LH
74272-33130-A0 note Panel, Rear Door Armrest Base, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥3,220
74272-33130-C0 note Panel, Rear Door Armrest Base, Upper LH
2001-07 → 2004-06 ended
MCV30 ¥3,220
74272-33130-A1 note Panel, Rear Door Armrest Base, Upper LH
2004-06 → 2006-03 ended
MCV30 ¥3,220
74272-33130-C0 note Panel, Rear Door Armrest Base, Upper LH
2004-06 → 2006-03 ended
MCV30 ¥3,220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
