Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

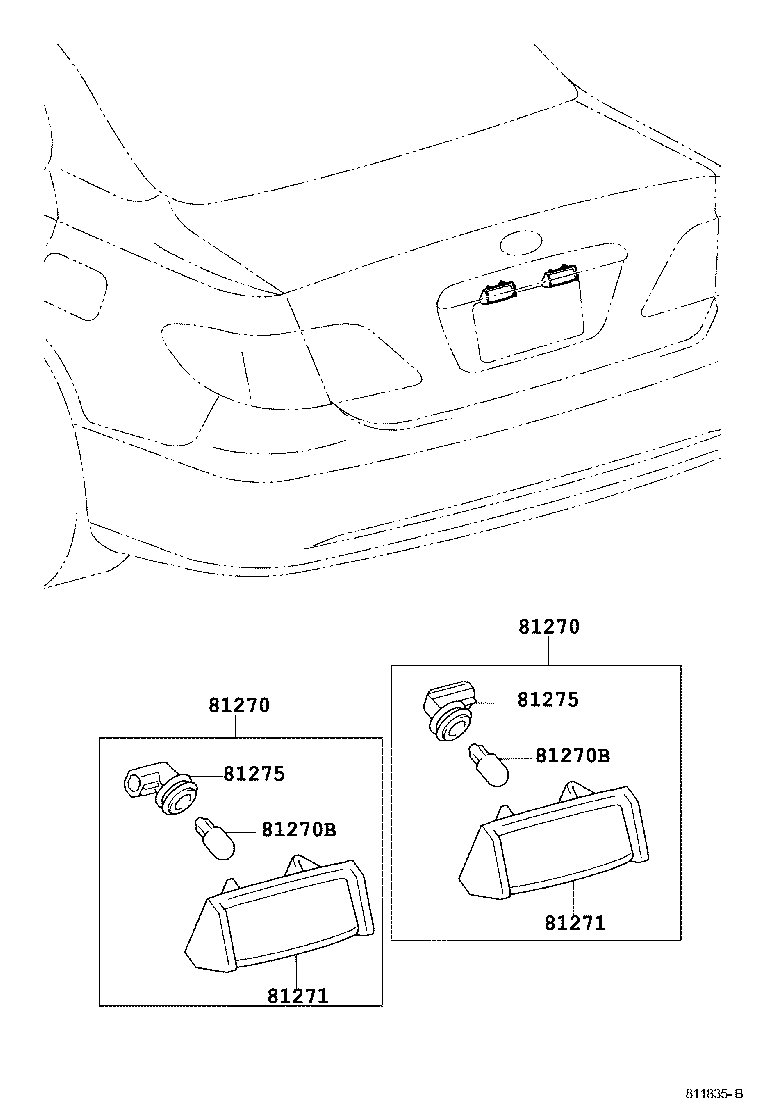

Exploded illustration 811835B 81275 — SOCKET AND WIRE, LICENSE PLATE LAMP (2 parts) 81275 — SOCKET AND WIRE, LICENSE PLATE LAMP (2 parts) 81270B — BULB (FOR LICENSE PLATE LAMP) (2 parts) 81270B — BULB (FOR LICENSE PLATE LAMP) (2 parts) 81271 — LENS, LICENSE PLATE LAMP (2 parts) 81271 — LENS, LICENSE PLATE LAMP (2 parts) 81270 — LAMP ASSY, LICENSE PLATE (2 parts) 81270 — LAMP ASSY, LICENSE PLATE (2 parts)
811835B · 8 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
81270 — Lamp Assy, License Plate
81270-30290 Lamp Assy, License Plate
2001-07 → 2004-06 ended
MCV30 ¥2,890
81270-30290 Lamp Assy, License Plate
2004-06 → —
MCV30 ¥2,890
81270B — Bulb (FOR LICENSE PLATE LAMP)
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
2001-07 → 2004-06 ended
MCV30 ¥110
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
2004-06 → —
MCV30 ¥110
81271 — Lens, License Plate Lamp
81271-30290 Lens, License Plate Lamp
2001-07 → 2004-06 ended
MCV30 ¥2,120
81271-30290 Lens, License Plate Lamp
2004-06 → —
MCV30 ¥2,120
81275 — Socket And Wire, License Plate Lamp
90075-99005 Socket And Wire, License Plate Lamp
2001-07 → 2004-06 ended
MCV30 ¥610
90075-99005 Socket And Wire, License Plate Lamp
2004-06 → —
MCV30 ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
