Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

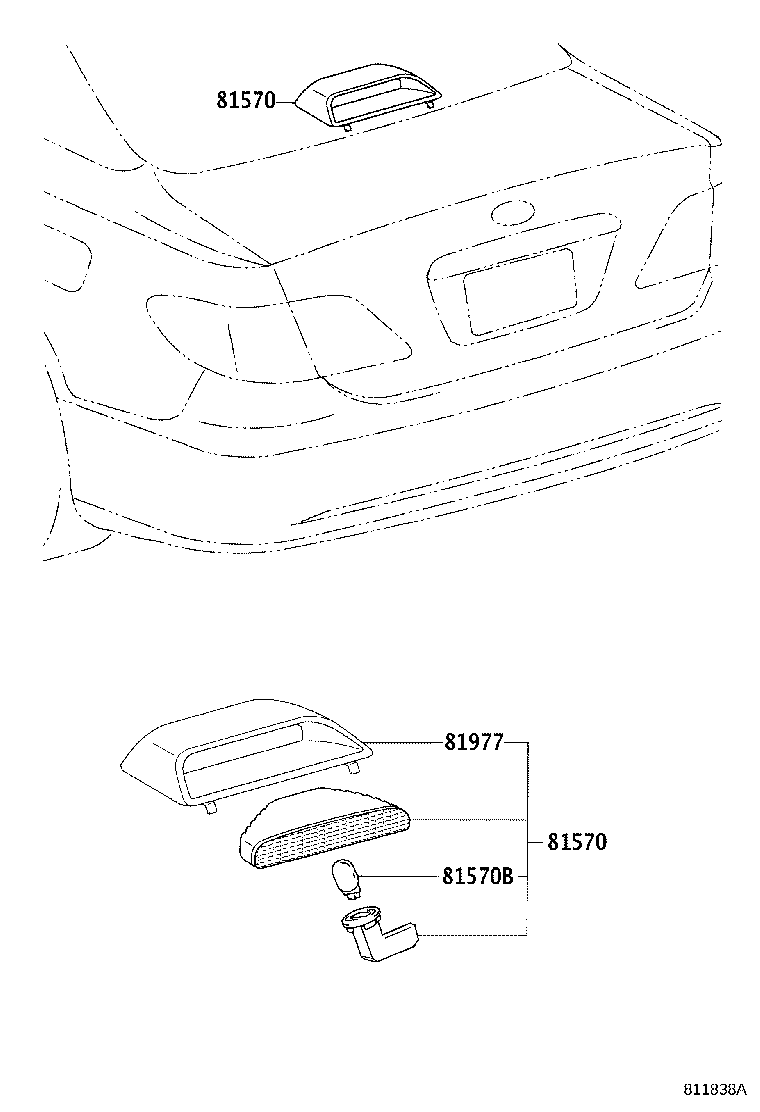

Exploded illustration 811838A 81570 — LAMP ASSY, CENTER STOP (4 parts) 81570 — LAMP ASSY, CENTER STOP (4 parts) 81977 — COVER, CENTER STOP LAMP (4 parts) 81570B — BULB (FOR CENTER STOP LAMP) (2 parts)
811838A · 4 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
81570 — Lamp Assy, Center Stop
81570-33120-A0 note Lamp Assy, Center Stop
2001-07 → 2004-06 ended
MCV30 ¥10,600
81570-33120-C0 note Lamp Assy, Center Stop
2001-07 → 2004-06 ended
MCV30 ¥10,600
81570-33120-A1 note Lamp Assy, Center Stop
2004-06 → 2006-03 ended
MCV30 ¥10,600
81570-33120-C0 note Lamp Assy, Center Stop
2004-06 → 2006-03 ended
MCV30 ¥10,600
81570B — Bulb (FOR CENTER STOP LAMP)
90981-13043 note Bulb (FOR CENTER STOP LAMP)
2001-07 → 2004-06 ended
MCV30 ¥220
90981-13043 note Bulb (FOR CENTER STOP LAMP)
2004-06 → —
MCV30 ¥220
81977 — Cover, Center Stop Lamp
81977-33060-A0 note Cover, Center Stop Lamp
2001-07 → 2004-06 ended
MCV30 ¥3,330
81977-33060-C0 note Cover, Center Stop Lamp
2001-07 → 2004-06 ended
MCV30 ¥3,330
81977-33060-A1 note Cover, Center Stop Lamp
2004-06 → 2006-03 ended
MCV30 ¥3,330
81977-33060-C0 note Cover, Center Stop Lamp
2004-06 → 2006-03 ended
MCV30 ¥3,330
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
