Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

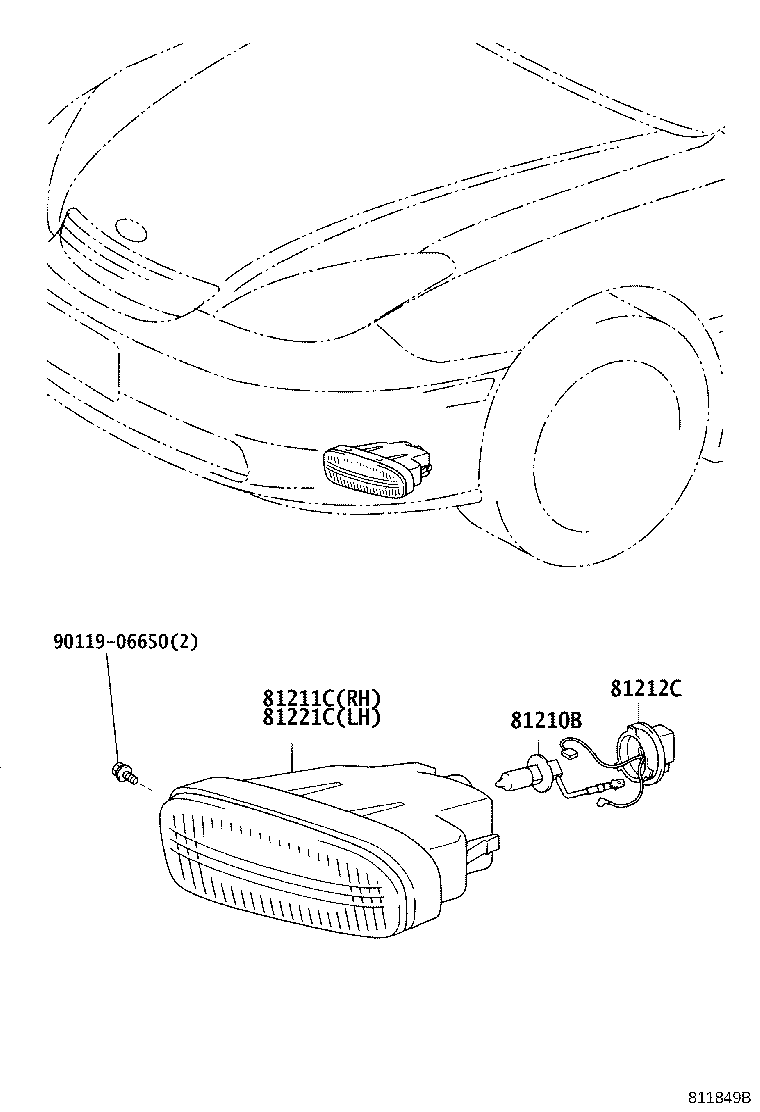

| 81210B — Bulb, Fog Lamp | ||||
| 90981-13071 note |
Bulb, Fog Lamp
2001-07 → 2004-06
ended
|
MCV30 | ¥1,400 | |
| 90981-13047 note |
Bulb, Fog Lamp
2004-06 → —
|
MCV30 | ¥2,000 | |
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-33180 |
Lamp Unit, Fog Lamp, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥17,700 | |
| 81211-42050 |
Lamp Unit, Fog Lamp, RH
2004-06 → —
|
MCV30 | ¥8,100 | |
| 81212C — Cover, Fog Lamp | ||||
| 90075-66001 |
Cover, Fog Lamp
2001-07 → 2004-06
ended
|
MCV30 | ¥870 | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-33180 |
Lamp Unit, Fog Lamp, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥17,700 | |
| 81221-42050 |
Lamp Unit, Fog Lamp, LH
2004-06 → —
|
MCV30 | ¥8,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
