Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

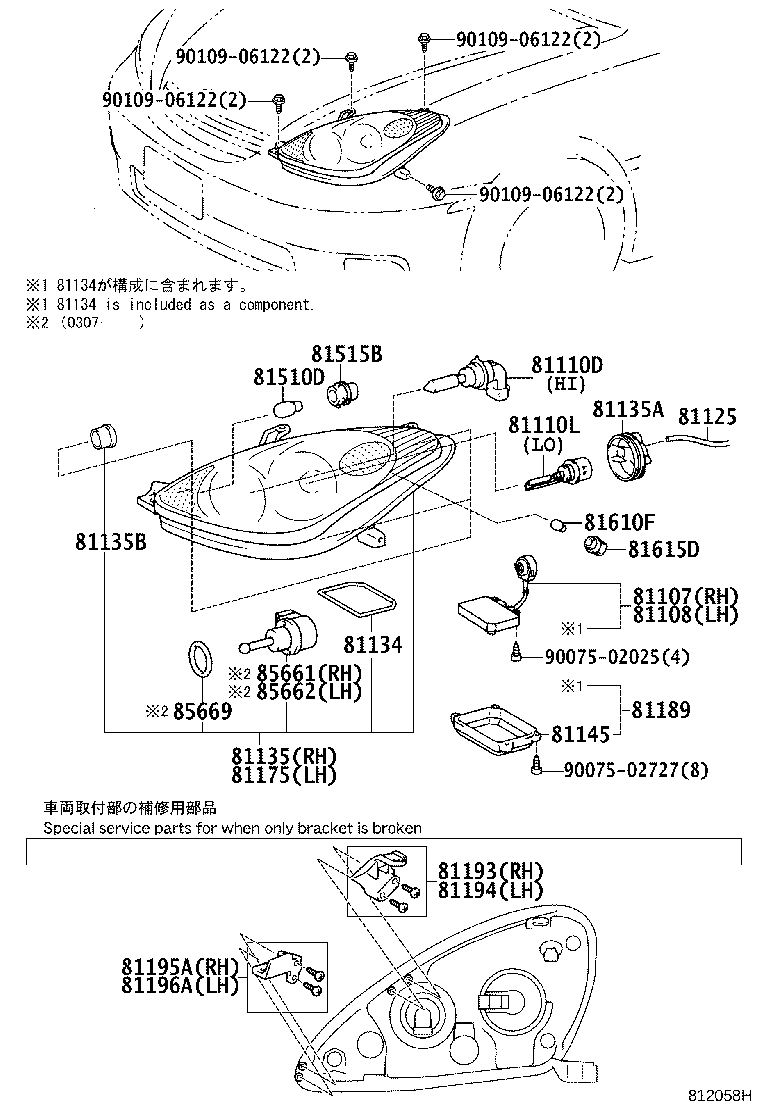

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81107 — Computer Sub-assy, Headlamp Light Control, RH | ||||
| 81107-33460 |
Computer Sub-assy, Headlamp Light Control, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥64,400 | |
| 81107-33570 |
Computer Sub-assy, Headlamp Light Control, RH
2004-06 → —
|
MCV30 | ¥55,700 | |
| 81108 — Computer Sub-assy, Headlamp Light Control, LH | ||||
| 81107-33460 |
Computer Sub-assy, Headlamp Light Control, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥64,400 | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.2)
2001-07 → 2004-06
ended
|
MCV30 | ¥2,000 | |
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.2)
2004-06 → 2004-08
ended
|
MCV30 | ¥2,000 | |
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.2)
2004-09 → —
|
MCV30 | ¥2,000 | |
| 81110L — Bulb, Discharge Headlamp | ||||
| 90981-20001 note |
Bulb, Discharge Headlamp
2001-07 → 2004-06
ended
|
MCV30 | ¥13,000 | |
| 90981-20005 note |
Bulb, Discharge Headlamp
2004-06 → 2004-08
ended
|
MCV30 | ¥13,000 | |
| 90981-20005 note |
Bulb, Discharge Headlamp
2004-09 → —
|
MCV30 | ¥13,000 | |
| 81125 — Cord, Headlamp | ||||
| 81125-33460 |
Cord, Headlamp
2001-07 → 2004-06
ended
|
MCV30 | ¥1,330 | |
| 81125-33570 |
Cord, Headlamp
2004-06 → —
|
MCV30 | ¥1,360 | |
| 81134 — Gasket, Headlamp | ||||
| 90075-99137 |
Gasket, Headlamp
2001-07 → 2004-06
ended
|
MCV30 | ¥580 | |
| 90075-68001 |
Gasket, Headlamp
2004-06 → 2006-03
ended
|
MCV30 | ¥430 | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81140-33470 |
Unit Assy, Headlamp, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥53,500 | |
| 81145-33580 |
Unit Assy, Headlamp, RH
2004-06 → 2004-09
ended
|
MCV30 | ¥63,500 | |
| 81145-33581 |
Unit Assy, Headlamp, RH
2004-09 → —
|
MCV30 | ¥63,500 | |
| 81135A — Cap, Locking | ||||
| 90075-66007 |
Cap, Locking
2001-07 → 2004-06
ended
|
MCV30 | ¥1,000 | |
| 81135-3A150 |
Cap, Locking
2004-06 → —
|
MCV30 | ¥600 | |
| 81135B — Cap, Locking | ||||
| 90075-66013 |
Cap, Locking
2001-07 → 2004-06
ended
|
MCV30 | ¥160 | |
| 81145 — Cover, Headlamp, NO.2 | ||||
| 90075-99136 |
Cover, Headlamp, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥540 | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81070-33470 |
Unit Assy, Headlamp, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥53,500 | |
| 81185-33580 |
Unit Assy, Headlamp, LH
2004-06 → 2004-09
ended
|
MCV30 | ¥63,500 | |
| 81185-33581 |
Unit Assy, Headlamp, LH
2004-09 → —
|
MCV30 | ¥63,500 | |
| 81189 — Cover, Headlamp | ||||
| 90075-67002 |
Cover, Headlamp
2001-07 → 2004-06
ended
|
MCV30 | ¥1,000 | |
| 90075-67005 |
Cover, Headlamp
2004-06 → —
|
MCV30 | ¥980 | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-33030 |
Retainer, Headlamp Protector, Upper RH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,350 | |
| 81193-33040 |
Retainer, Headlamp Protector, Upper RH
2004-06 → —
|
MCV30 | ¥1,140 | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-33030 |
Retainer, Headlamp Protector, Upper LH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,350 | |
| 81194-33040 |
Retainer, Headlamp Protector, Upper LH
2004-06 → —
|
MCV30 | ¥1,140 | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81195-33010 |
Retainer, Headlamp Protector, Lower RH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,350 | |
| 81195-33010 |
Retainer, Headlamp Protector, Lower RH
2004-06 → —
|
MCV30 | ¥1,350 | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81196-33010 |
Retainer, Headlamp Protector, Lower LH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,350 | |
| 81196-33010 |
Retainer, Headlamp Protector, Lower LH
2004-06 → —
|
MCV30 | ¥1,350 | |
| 81510D — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2001-07 → 2004-06
ended
|
MCV30 | ¥300 | |
| 90981-15011 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2004-06 → 2004-08
ended
|
MCV30 | ¥300 | |
| 90981-15011 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2004-09 → —
|
MCV30 | ¥300 | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 90075-60028 |
Socket, Front Turn Signal Lamp
2001-07 → 2004-06
ended
|
MCV30 | ¥610 | |
| 90075-60028 |
Socket, Front Turn Signal Lamp
2004-06 → —
|
MCV30 | ¥610 | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2001-07 → 2004-06
ended
|
MCV30 | ¥110 | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2004-06 → 2004-08
ended
|
MCV30 | ¥110 | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2004-09 → —
|
MCV30 | ¥110 | |
| 81615D — Socket, Clearance Lamp | ||||
| 90075-60016 |
Socket, Clearance Lamp
2001-07 → 2004-06
ended
|
MCV30 | ¥1,000 | |
| 90075-60046 |
Socket, Clearance Lamp
2004-06 → 2004-09
ended
|
MCV30 | ¥980 | |
| 90075-60046 |
Socket, Clearance Lamp
2004-09 → 2005-06
ended
|
MCV30 | ¥980 | |
| 90075-60077 |
Socket, Clearance Lamp
2005-07 → —
|
MCV30 | ¥610 | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-50040 |
Motor, Headlamp Leveling, RH
2003-07 → 2004-06
ended
|
MCV30 | ¥18,500 | |
| 85661-50040 |
Motor, Headlamp Leveling, RH
2004-06 → —
|
MCV30 | ¥18,500 | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-50040 |
Motor, Headlamp Leveling, LH
2003-07 → 2004-06
ended
|
MCV30 | ¥18,500 | |
| 85661-50040 |
Motor, Headlamp Leveling, LH
2004-06 → —
|
MCV30 | ¥18,500 | |
| 85669 — Packing, Headlamp Leveling Motor Base | ||||
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2003-07 → 2004-06
ended
|
MCV30 | ¥220 | |
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2004-06 → —
|
MCV30 | ¥220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
