Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10

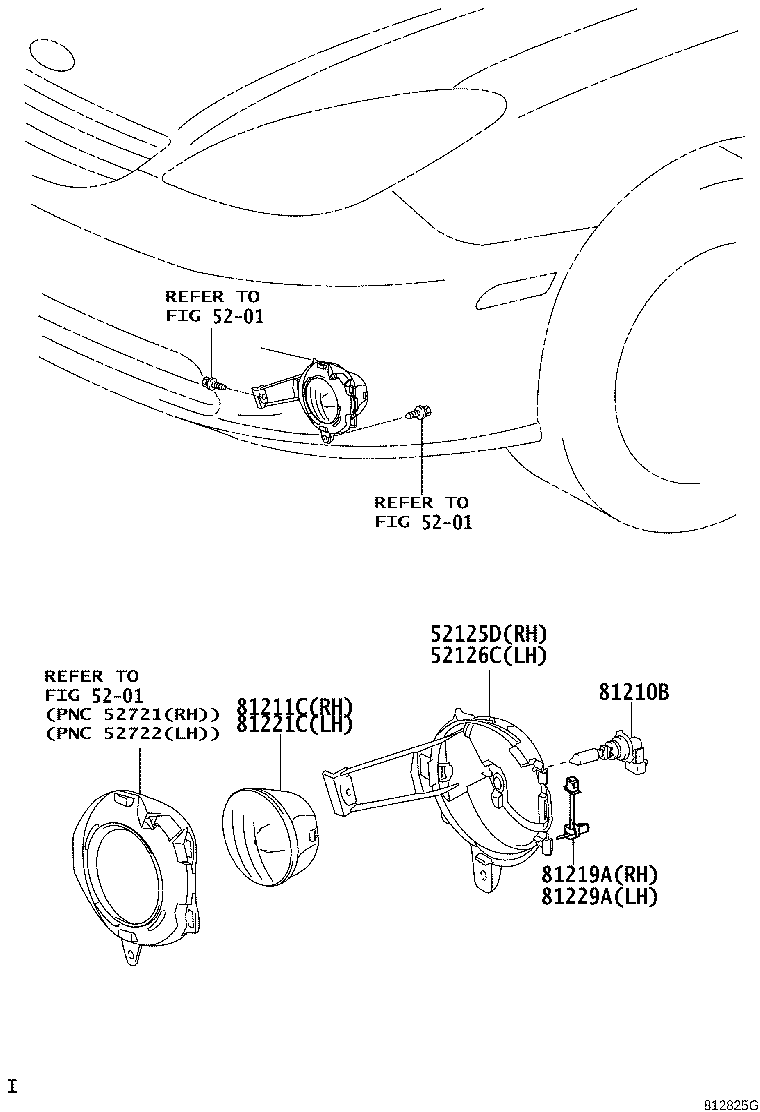

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

10 parts on this figure

Part number	Description	Fitment	Price
52125D — Bracket, Fog Lamp Mounting, RH
52125-33060	Bracket, Fog Lamp Mounting, RH 2004-06 → —	MCV30	¥3,960
52126C — Bracket, Fog Lamp Mounting, LH
52126-33060	Bracket, Fog Lamp Mounting, LH 2004-06 → —	MCV30	¥3,960
81210B — Bulb, Fog Lamp
90981-13071 note	Bulb, Fog Lamp 2001-07 → 2004-06 ended	MCV30	¥1,400
90981-13047 note	Bulb, Fog Lamp 2004-06 → —	MCV30	¥2,000
81211C — Lamp Unit, Fog Lamp, RH
81211-33180	Lamp Unit, Fog Lamp, RH 2001-07 → 2004-06 ended	MCV30	¥17,700
81211-42050	Lamp Unit, Fog Lamp, RH 2004-06 → —	MCV30	¥8,100
81219A — Bracket, Fog Lamp, RH
81218-42050	Bracket, Fog Lamp, RH 2004-06 → —	MCV30	¥890
81221C — Lamp Unit, Fog Lamp, LH
81221-33180	Lamp Unit, Fog Lamp, LH 2001-07 → 2004-06 ended	MCV30	¥17,700
81221-42050	Lamp Unit, Fog Lamp, LH 2004-06 → —	MCV30	¥8,100
81229A — Bracket, Fog Lamp, LH
81228-42050	Bracket, Fog Lamp, LH 2004-06 → —	MCV30	¥890

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
