Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

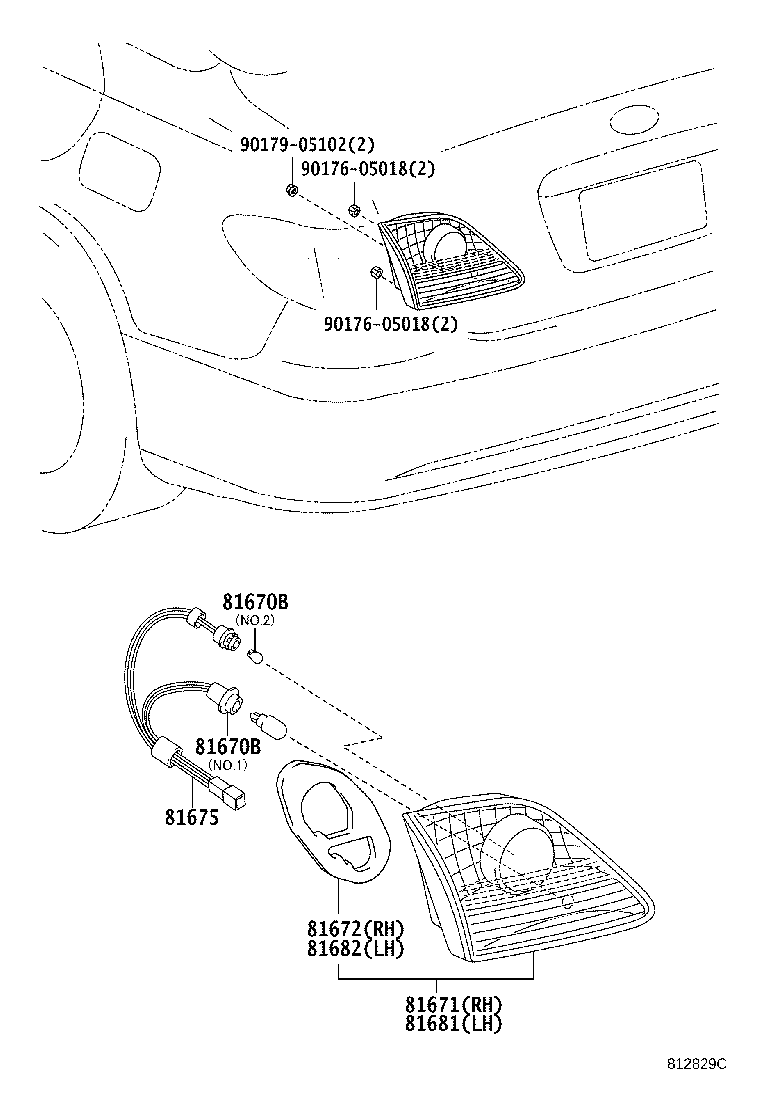

Exploded illustration 812829C 81670B — BULB(FOR BACK-UP LAMP) (9 parts) 81670B — BULB(FOR BACK-UP LAMP) (9 parts) 81671 — LENS, BACK-UP LAMP, RH (4 parts) 81681 — LENS, BACK-UP LAMP, LH (4 parts) 9017605018 — not listed in this catalogue 9017605018 — not listed in this catalogue 9017905102 — not listed in this catalogue 81675 — SOCKET & WIRE, BACK-UP LAMP (6 parts) 81672 — GASKET, BACK-UP LAMP LENS, RH (2 parts) 81682 — GASKET, BACK UP LAMP LENS, LH (2 parts)
812829C · 7 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
81670B — Bulb(FOR BACK-UP LAMP)
90981-11059 note Bulb(FOR BACK-UP LAMP)
2001-07 → 2004-06 ended
MCV30 ¥200
90981-11059 note Bulb(FOR BACK-UP LAMP)
2001-07 → 2004-06 ended
MCV30 ¥200
90981-13043 note Bulb(FOR BACK-UP LAMP)
2001-07 → 2004-06 ended
MCV30 ¥220
90981-11059 note Bulb(FOR BACK-UP LAMP)
2004-06 → 2004-08 ended
MCV30 ¥200
90981-11059 note Bulb(FOR BACK-UP LAMP)
2004-09 → —
MCV30 ¥200
90981-13043 note Bulb(FOR BACK-UP LAMP)
2004-06 → 2004-08 ended
MCV30 ¥220
90981-13043 note Bulb(FOR BACK-UP LAMP)
2004-09 → —
MCV30 ¥220
99132-12050 note Bulb(FOR BACK-UP LAMP)
2004-06 → 2004-08 ended
MCV30 ¥110
99132-12050 note Bulb(FOR BACK-UP LAMP)
2004-09 → —
MCV30 ¥110
81671 — Lens, Back-up Lamp, RH
81671-33200 Lens, Back-up Lamp, RH
2001-07 → 2004-06 ended
MCV30 ¥13,100
81671-33210 note Lens, Back-up Lamp, RH
2001-07 → 2004-06 ended
MCV30 ¥13,100
81581-33100 Lens, Back-up Lamp, RH
2004-06 → 2006-03 ended
MCV30 ¥15,900
81581-33110 note Lens, Back-up Lamp, RH
2004-06 → 2006-03 ended
MCV30 ¥15,900
81672 — Gasket, Back-up Lamp Lens, RH
81672-33170 Gasket, Back-up Lamp Lens, RH
2001-07 → 2004-06 ended
MCV30 ¥1,090
81584-33100 Gasket, Back-up Lamp Lens, RH
2004-06 → 2004-09 ended
MCV30 ¥1,030
81675 — Socket & Wire, Back-up Lamp
81675-33200 Socket & Wire, Back-up Lamp
2001-07 → 2004-06 ended
MCV30 ¥1,600
81675-33210 note Socket & Wire, Back-up Lamp
2001-07 → 2004-06 ended
MCV30 ¥2,030
81585-33100 Socket & Wire, Back-up Lamp
2004-06 → 2004-09 ended
MCV30 ¥2,030
81585-33101 Socket & Wire, Back-up Lamp
2004-09 → —
MCV30 ¥2,030
81585-33110 note Socket & Wire, Back-up Lamp
2004-06 → 2004-09 ended
MCV30 ¥2,030
81585-33111 note Socket & Wire, Back-up Lamp
2004-09 → —
MCV30 ¥2,030
81681 — Lens, Back-up Lamp, LH
81681-33160 Lens, Back-up Lamp, LH
2001-07 → 2004-06 ended
MCV30 ¥13,100
81681-33170 note Lens, Back-up Lamp, LH
2001-07 → 2004-06 ended
MCV30 ¥13,100
81591-33100 Lens, Back-up Lamp, LH
2004-06 → 2006-03 ended
MCV30 ¥15,900
81591-33110 note Lens, Back-up Lamp, LH
2004-06 → 2006-03 ended
MCV30 ¥15,900
81682 — Gasket, Back UP Lamp Lens, LH
81682-33150 Gasket, Back UP Lamp Lens, LH
2001-07 → 2004-06 ended
MCV30 ¥1,090
81594-33100 Gasket, Back UP Lamp Lens, LH
2004-06 → 2004-09 ended
MCV30 ¥1,030
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
