Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

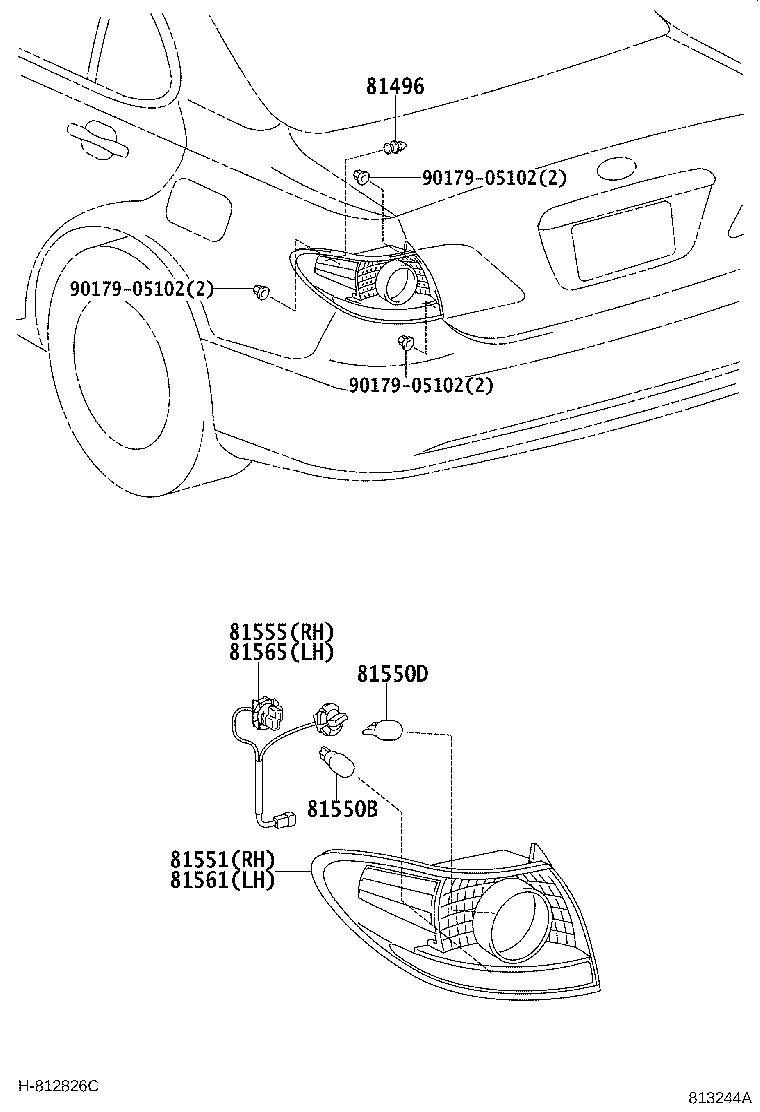

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

19 parts on this figure

Part number	Description	Fitment	Price
81496 — Guide, Rear Combination Lamp
81496-28010	Guide, Rear Combination Lamp 2001-07 → 2004-06 ended	MCV30	¥200
81496-28010	Guide, Rear Combination Lamp 2004-06 → —	MCV30	¥200
81550B — Bulb(FOR REAR COMBINATION LAMP)
90981-15011 note	Bulb(FOR REAR COMBINATION LAMP) 2001-07 → 2004-06 ended	MCV30	¥300
90981-15011 note	Bulb(FOR REAR COMBINATION LAMP) 2004-06 → 2004-08 ended	MCV30	¥300
90981-15011 note	Bulb(FOR REAR COMBINATION LAMP) 2004-09 → —	MCV30	¥300
81550D — Bulb(FOR REAR COMBINATION LAMP)
90981-13044 note	Bulb(FOR REAR COMBINATION LAMP) 2001-07 → 2004-06 ended	MCV30	¥230
90981-13044 note	Bulb(FOR REAR COMBINATION LAMP) 2004-06 → 2006-03 ended	MCV30	¥230
81551 — Lens, Rear Combination Lamp, RH
81551-33290	Lens, Rear Combination Lamp, RH 2001-07 → 2004-06 ended	MCV30	¥29,000
81551-33300 note	Lens, Rear Combination Lamp, RH 2001-07 → 2004-06 ended	MCV30	¥29,000
81551-33440	Lens, Rear Combination Lamp, RH 2004-06 → —	MCV30	¥27,600
81551-33450 note	Lens, Rear Combination Lamp, RH 2004-06 → —	MCV30	¥27,600
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-33440	Socket & Wire Sub-assy, Rear Combination Lamp, RH 2004-06 → 2004-09 ended	MCV30	¥2,470
81555-33441	Socket & Wire Sub-assy, Rear Combination Lamp, RH 2004-09 → —	MCV30	¥2,470
81561 — Lens, Rear Combination Lamp, LH
81561-33290	Lens, Rear Combination Lamp, LH 2001-07 → 2004-06 ended	MCV30	¥29,000
81561-33300 note	Lens, Rear Combination Lamp, LH 2001-07 → 2004-06 ended	MCV30	¥29,000
81561-33440	Lens, Rear Combination Lamp, LH 2004-06 → —	MCV30	¥27,600
81561-33450 note	Lens, Rear Combination Lamp, LH 2004-06 → —	MCV30	¥27,600
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-33440	Socket & Wire Sub-assy, Rear Combination Lamp, LH 2004-06 → 2004-09 ended	MCV30	¥2,470
81555-33441	Socket & Wire Sub-assy, Rear Combination Lamp, LH 2004-09 → —	MCV30	¥2,470

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
