Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

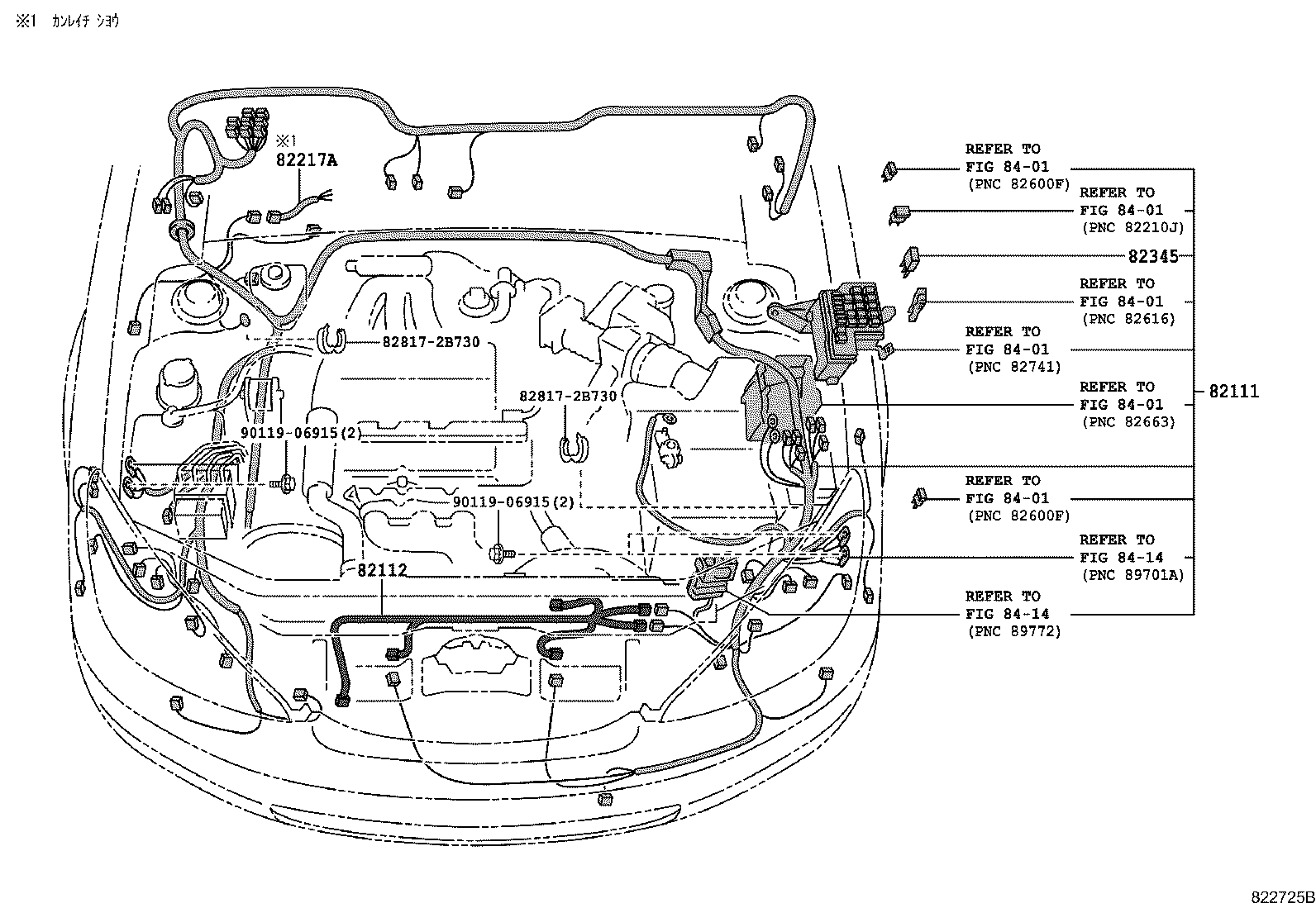

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-3Y270 |
Wire, Engine Room Main
2001-07 → 2003-07
ended
|
MCV30 30X | ¥168,000 | |
| 82111-3Y271 |
Wire, Engine Room Main
2003-07 → 2004-06
ended
|
MCV30 30X | ¥168,000 | |
| 82111-3Y280 |
Wire, Engine Room Main
2001-07 → 2003-07
ended
|
MCV30 30G | ¥187,000 | |
| 82111-3Y281 |
Wire, Engine Room Main
2003-07 → 2004-06
ended
|
MCV30 30G | ¥186,000 | |
| 82111-3Y290 note |
Wire, Engine Room Main
2001-07 → 2003-07
ended
|
MCV30 30G | ¥187,000 | |
| 82111-3Y291 note |
Wire, Engine Room Main
2003-07 → 2004-06
ended
|
MCV30 30G | ¥186,000 | |
| 82111-3Y300 note |
Wire, Engine Room Main
2002-04 → 2003-07
ended
|
MCV30 30X | ¥187,000 | |
| 82111-3Y301 note |
Wire, Engine Room Main
2003-07 → 2004-06
ended
|
MCV30 30X | ¥186,000 | |
| 82111-3Y272 |
Wire, Engine Room Main
2004-06 → —
|
MCV30 30X | ¥168,000 | |
| 82111-3Y282 |
Wire, Engine Room Main
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82111-3Y292 note |
Wire, Engine Room Main
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82111-3Y302 note |
Wire, Engine Room Main
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82112 — Wire, Engine Room, NO.2 | ||||
| 82112-33040 |
Wire, Engine Room, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥5,100 | |
| 82112-33040 |
Wire, Engine Room, NO.2
2004-06 → —
|
MCV30 | ¥5,100 | |
| 82217A — Wire, Front Window Defogger | ||||
| 82217-33030 |
Wire, Front Window Defogger
2004-06 → 2006-03
ended
|
MCV30 | ¥780 | |
| 82345 — Diode | ||||
| 82345-32020 |
Diode
2001-07 → 2004-06
ended
|
MCV30 | ¥1,030 | |
| 82345-32020 |
Diode
2004-06 → —
|
MCV30 | ¥1,030 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
