Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

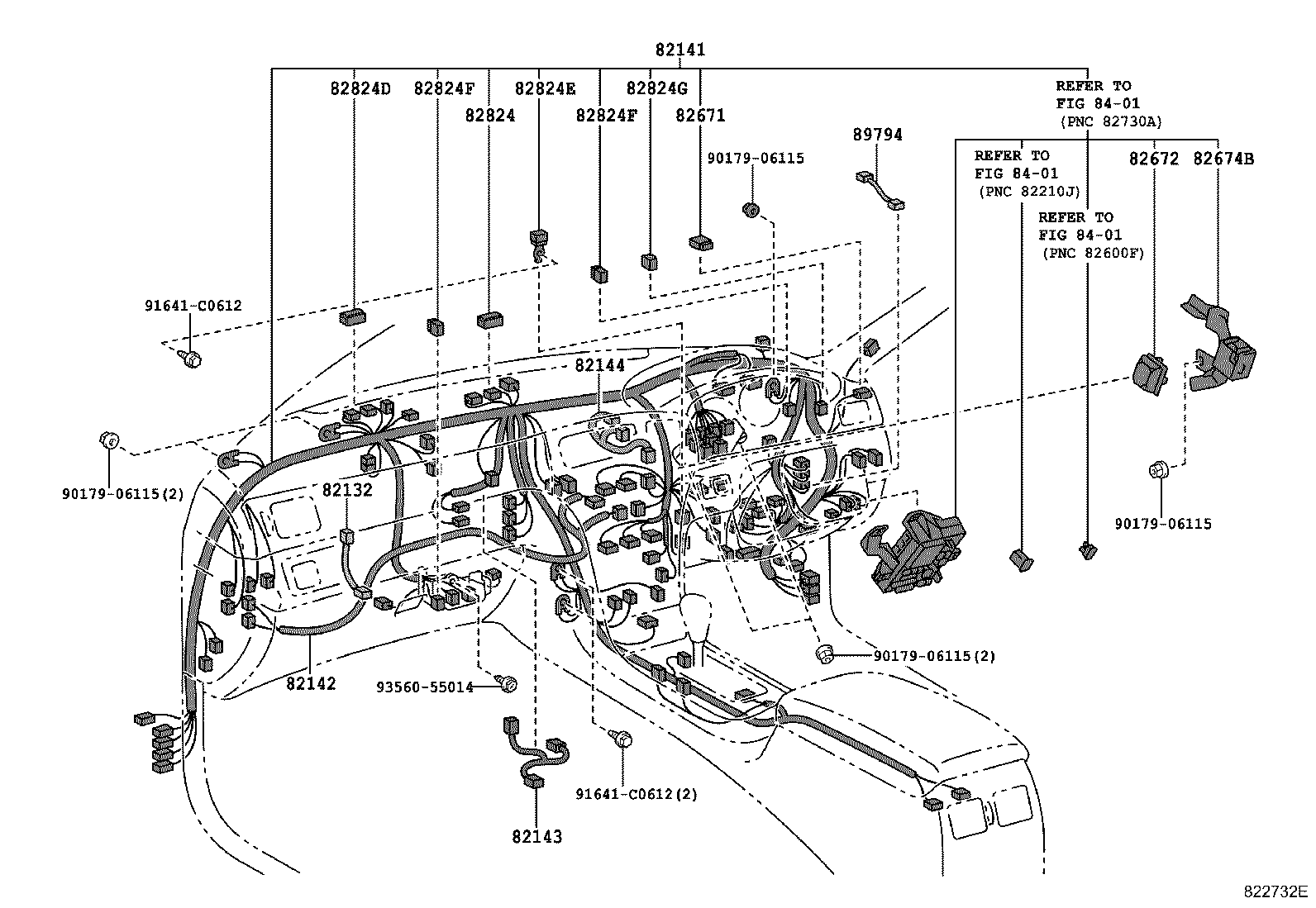

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82132 — Wire, Cowl, NO.2 | ||||
| 82132-33010 |
Wire, Cowl, NO.2
2001-07 → 2004-06
ended
|
MCV30 | ¥580 | |
| 82132-33010 |
Wire, Cowl, NO.2
2004-06 → —
|
MCV30 | ¥580 | |
| 82141 — Wire, Instrument Panel | ||||
| 82141-3Y710 note |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30X | ¥187,000 | |
| 82141-3Y711 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30X | ¥186,000 | |
| 82141-3Y720 note |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30G | ¥187,000 | |
| 82141-3Y721 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30G | ¥186,000 | |
| 82141-3Y730 note |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30G | ¥203,000 | |
| 82141-3Y731 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30G | ¥203,000 | |
| 82141-3Y820 |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30X | ¥187,000 | |
| 82141-3Y821 |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30X | ¥186,000 | |
| 82141-3Y830 |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30G | ¥187,000 | |
| 82141-3Y831 |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30G | ¥186,000 | |
| 82141-3Y840 note |
Wire, Instrument Panel
2001-07 → 2003-07
ended
|
MCV30 30G | ¥203,000 | |
| 82141-3Y841 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30G | ¥203,000 | |
| 82141-3Y851 note |
Wire, Instrument Panel
2002-04 → 2003-07
ended
|
MCV30 30X | ¥187,000 | |
| 82141-3Y852 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30X | ¥186,000 | |
| 82141-3Y861 note |
Wire, Instrument Panel
2002-04 → 2003-07
ended
|
MCV30 30X | ¥187,000 | |
| 82141-3Y862 note |
Wire, Instrument Panel
2003-07 → 2004-06
ended
|
MCV30 30X | ¥186,000 | |
| 82141-33E50 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-33E60 |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-33E70 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-33E80 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-33E90 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82141-33F00 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82141-33F10 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82141-33F20 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥203,000 | |
| 82141-3Y712 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-3Y722 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82141-3Y732 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥203,000 | |
| 82141-3Y822 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-3Y832 |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥186,000 | |
| 82141-3Y842 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30G | ¥203,000 | |
| 82141-3Y853 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82141-3Y863 note |
Wire, Instrument Panel
2004-06 → —
|
MCV30 30X | ¥186,000 | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-33100 |
Wire, Instrument Panel, NO.2
2001-07 → 2004-06
ended
|
MCV30 30X | ¥5,100 | |
| 82142-33110 |
Wire, Instrument Panel, NO.2
2001-07 → 2004-06
ended
|
MCV30 30G | ¥5,100 | |
| 82142-33100 |
Wire, Instrument Panel, NO.2
2004-06 → —
|
MCV30 30X | ¥5,100 | |
| 82142-33110 |
Wire, Instrument Panel, NO.2
2004-06 → —
|
MCV30 30G | ¥5,100 | |
| 82143 — Wire, Instrument Panel, NO.3 | ||||
| 82143-33060 |
Wire, Instrument Panel, NO.3
2001-07 → 2004-06
ended
|
MCV30 | ¥3,410 | |
| 82143-33060 |
Wire, Instrument Panel, NO.3
2004-06 → —
|
MCV30 | ¥3,410 | |
| 82144 — Wire, Instrument Panel, NO.4 | ||||
| 82144-33060 |
Wire, Instrument Panel, NO.4
2001-07 → 2004-06
ended
|
MCV30 | ¥880 | |
| 82144-33060 |
Wire, Instrument Panel, NO.4
2004-06 → —
|
MCV30 | ¥880 | |
| 82671 — Block, Junction | ||||
| 82671-30370 |
Block, Junction
2001-07 → 2004-06
ended
|
MCV30 | ¥690 | |
| 82671-30370 |
Block, Junction
2004-06 → —
|
MCV30 | ¥690 | |
| 82672 — Cover, Junktion Block | ||||
| 82672-33250 |
Cover, Junktion Block
2001-07 → 2004-06
ended
|
MCV30 | ¥710 | |
| 82672-33250 |
Cover, Junktion Block
2004-06 → —
|
MCV30 | ¥710 | |
| 82674B — Cover, Junction Block, Lower | ||||
| 82674-33080 |
Cover, Junction Block, Lower
2001-07 → 2004-06
ended
|
MCV30 | ¥1,800 | |
| 82674-33080 |
Cover, Junction Block, Lower
2004-06 → —
|
MCV30 | ¥1,800 | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-12210 |
Connector, Wiring Harness
2001-07 → 2004-06
ended
|
MCV30 | ¥2,520 | |
| 82824-12210 |
Connector, Wiring Harness
2004-06 → —
|
MCV30 | ¥2,520 | |
| 82824D — Connector, Wiring Harness | ||||
| 82824-12220 |
Connector, Wiring Harness
2001-07 → 2004-06
ended
|
MCV30 | ¥2,520 | |
| 82824-12220 |
Connector, Wiring Harness
2004-06 → —
|
MCV30 | ¥2,520 | |
| 82824E — Connector, Wiring Harness | ||||
| 82824-20130 |
Connector, Wiring Harness
2001-07 → 2004-06
ended
|
MCV30 | ¥670 | |
| 82824-20130 |
Connector, Wiring Harness
2004-06 → —
|
MCV30 | ¥670 | |
| 82824F — Connector, Wiring Harness | ||||
| 82824-30220 |
Connector, Wiring Harness
2001-07 → 2004-06
ended
|
MCV30 | ¥1,990 | |
| 82824-30220 |
Connector, Wiring Harness
2004-06 → —
|
MCV30 | ¥1,990 | |
| 82824G — Connector, Wiring Harness | ||||
| 82824-50110 |
Connector, Wiring Harness
2001-07 → 2004-06
ended
|
MCV30 | ¥1,540 | |
| 82824-50110 |
Connector, Wiring Harness
2004-06 → —
|
MCV30 | ¥1,540 | |
| 89794 — Wire, Transponder Key | ||||
| 89794-33010 |
Wire, Transponder Key
2001-07 → 2004-06
ended
|
MCV30 | ¥880 | |
| 89794-33010 |
Wire, Transponder Key
2004-06 → —
|
MCV30 | ¥880 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
