Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

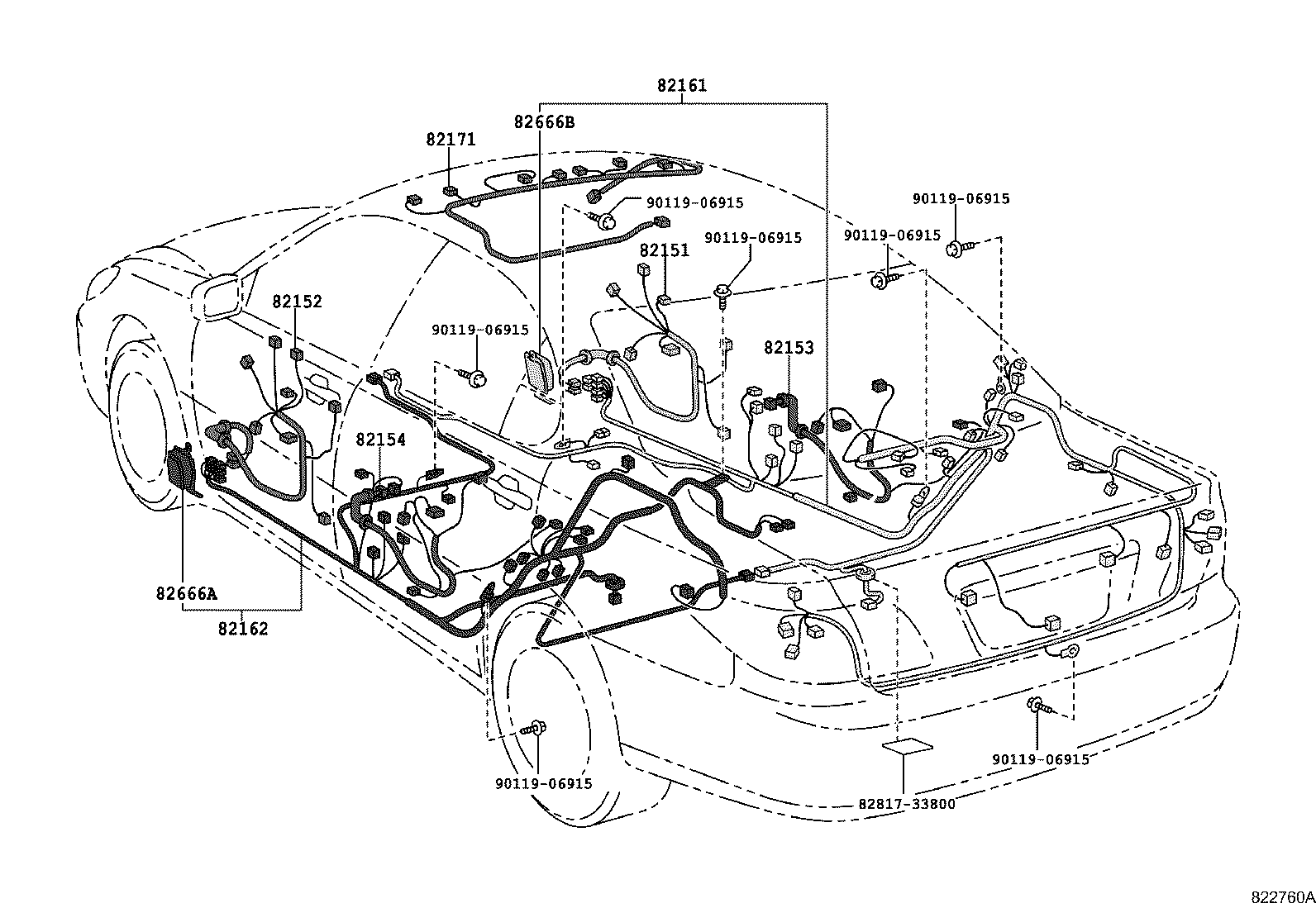

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

38 parts on this figure

Part number	Description	Fitment	Price
82151 — Wire, Front Door, RH
82151-3T160	Wire, Front Door, RH 2001-07 → 2004-06 ended	MCV30	¥16,200
82151-33A00 note	Wire, Front Door, RH 2004-06 → —	MCV30	¥16,200
82151-3T161	Wire, Front Door, RH 2004-06 → —	MCV30	¥16,200
82152 — Wire, Front Door, LH
82152-3T280	Wire, Front Door, LH 2001-07 → 2004-06 ended	MCV30	¥14,600
82152-33A10 note	Wire, Front Door, LH 2004-06 → —	MCV30	¥18,600
82152-3T281	Wire, Front Door, LH 2004-06 → —	MCV30	¥14,600
82153 — Wire, Rear Door, NO.1
82153-33240	Wire, Rear Door, NO.1 2001-07 → 2004-06 ended	MCV30	¥10,400
82153-33240	Wire, Rear Door, NO.1 2004-06 → —	MCV30	¥10,400
82154 — Wire, Rear Door, NO.2
82154-33170	Wire, Rear Door, NO.2 2001-07 → 2004-06 ended	MCV30	¥10,400
82154-33170	Wire, Rear Door, NO.2 2004-06 → —	MCV30	¥10,400
82161 — Wire, Floor
82199-33130	Wire, Floor 2001-07 → 2003-07 ended	MCV30	¥76,700
82199-33140 note	Wire, Floor 2001-07 → 2004-06 ended	MCV30	¥88,400
82161-33B90 note	Wire, Floor 2004-06 → —	MCV30	¥88,400
82161-33C00 note	Wire, Floor 2004-06 → —	MCV30	¥88,400
82161-33C10 note	Wire, Floor 2004-06 → —	MCV30	¥88,400
82199-33141	Wire, Floor 2004-06 → —	MCV30	¥88,400
82162 — Wire, Floor, NO.2
82162-3Y440	Wire, Floor, NO.2 2001-07 → 2003-07 ended	MCV30 30X	¥37,200
82162-3Y450 note	Wire, Floor, NO.2 2001-07 → 2004-06 ended	MCV30 30X	¥42,600
82162-3Y460 note	Wire, Floor, NO.2 2001-07 → 2003-07 ended	MCV30 30X	¥42,400
82162-3Y470 note	Wire, Floor, NO.2 2001-07 → 2004-06 ended	MCV30 30X	¥47,800
82162-3Y480	Wire, Floor, NO.2 2001-07 → 2003-07 ended	MCV30 30G	¥52,900
82162-3Y490 note	Wire, Floor, NO.2 2001-07 → 2004-06 ended	MCV30 30G	¥61,200
82162-3Y500 note	Wire, Floor, NO.2 2001-07 → 2003-07 ended	MCV30 30G	¥61,100
82162-3Y510 note	Wire, Floor, NO.2 2001-07 → 2004-06 ended	MCV30 30G	¥61,200
82162-33B20	Wire, Floor, NO.2 2004-06 → —	MCV30 30G	¥61,200
82162-3Y451	Wire, Floor, NO.2 2004-06 → —	MCV30 30X	¥42,600
82162-3Y471 note	Wire, Floor, NO.2 2004-06 → —	MCV30 30X	¥47,800
82162-3Y511 note	Wire, Floor, NO.2 2004-06 → —	MCV30 30G	¥61,200
82171 — Wire, Roof, NO.1
82171-33880	Wire, Roof, NO.1 2001-07 → 2004-06 ended	MCV30	¥7,500
82171-3T040 note	Wire, Roof, NO.1 2001-07 → 2004-06 ended	MCV30	¥10,400
82171-33881	Wire, Roof, NO.1 2004-06 → 2006-03 ended	MCV30	¥6,100
82171-33A10 note	Wire, Roof, NO.1 2004-06 → 2006-03 ended	MCV30 30G	¥7,500
82171-33A20 note	Wire, Roof, NO.1 2004-06 → 2006-03 ended	MCV30 30G	¥10,400
82171-3T041 note	Wire, Roof, NO.1 2004-06 → 2006-03 ended	MCV30	¥10,400
82666A — Holder, Connector NO.2
82666-33250	Holder, Connector NO.2 2001-07 → 2004-06 ended	MCV30	¥3,090
82666-33250	Holder, Connector NO.2 2004-06 → —	MCV30	¥3,090
82666B — Holder, Connector NO.3
82666-33260	Holder, Connector NO.3 2001-07 → 2004-06 ended	MCV30	¥3,090
82666-33260	Holder, Connector NO.3 2004-06 → —	MCV30	¥3,090

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
