Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

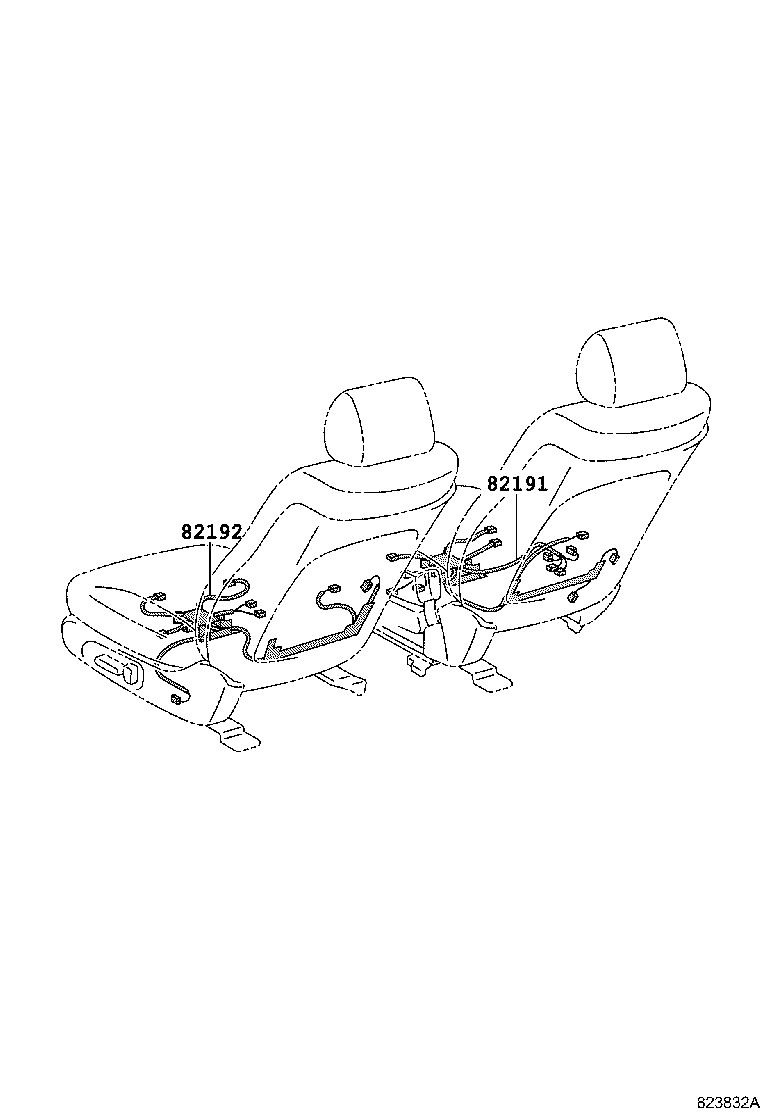

Exploded illustration 823832A 82192 — WIRE, FRONT SEAT, LH (4 parts) 82191 — WIRE, FRONT SEAT, RH (4 parts)
823832A · 2 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
82191 — Wire, Front Seat, RH
82191-33110 Wire, Front Seat, RH
2001-07 → 2004-06 ended
MCV30 ¥10,400
82191-33120 note Wire, Front Seat, RH
2001-07 → 2004-06 ended
MCV30 ¥10,400
82191-33111 Wire, Front Seat, RH
2004-06 → 2006-03 ended
MCV30 ¥10,400
82191-33121 note Wire, Front Seat, RH
2004-06 → 2006-03 ended
MCV30 ¥10,400
82192 — Wire, Front Seat, LH
82192-33100 Wire, Front Seat, LH
2001-07 → 2004-06 ended
MCV30 30G ¥6,100
82192-33120 note Wire, Front Seat, LH
2001-07 → 2004-06 ended
MCV30 ¥7,500
82192-33101 note Wire, Front Seat, LH
2004-06 → 2006-03 ended
MCV30 30G ¥10,400
82192-33121 note Wire, Front Seat, LH
2004-06 → 2006-03 ended
MCV30 ¥10,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
