Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

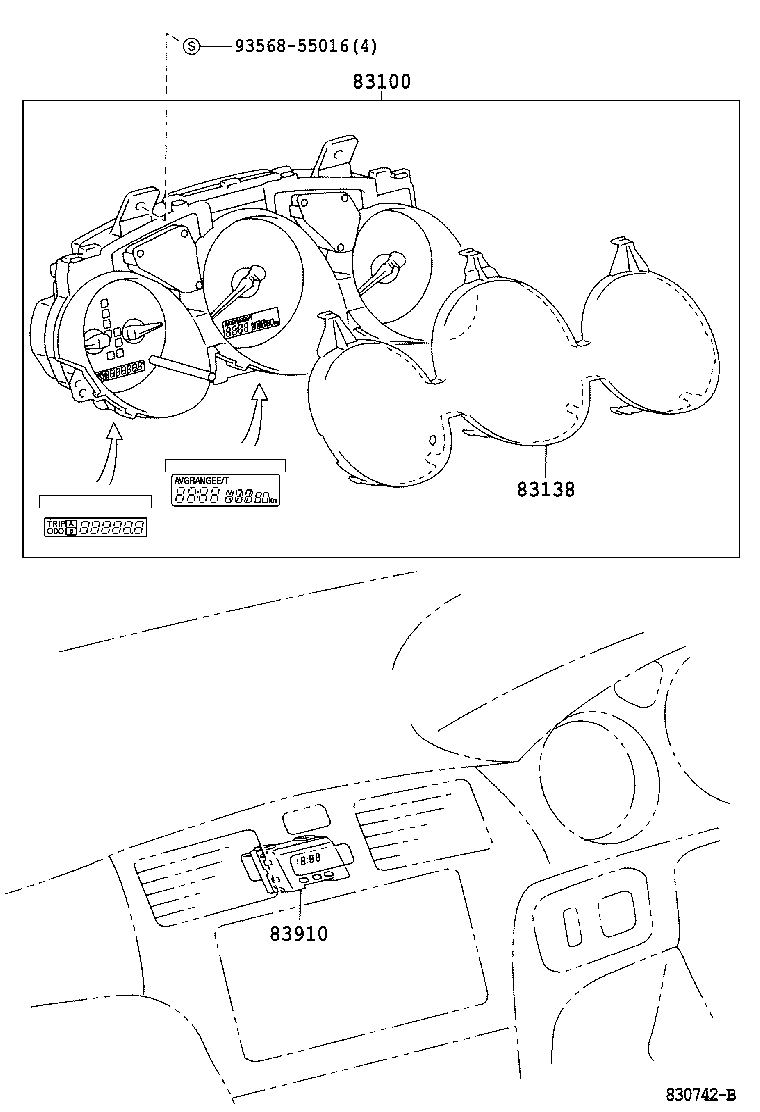

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-33660 note |
Meter Assy, Combination
2001-07 → 2004-06
ended
|
MCV30 | ¥99,200 | |
| 83800-33850 note |
Meter Assy, Combination
2004-06 → —
|
MCV30 | ¥99,200 | |
| 83138 — Glass, Speedometer | ||||
| 83852-33650 |
Glass, Speedometer
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 83852-33650 |
Glass, Speedometer
2004-06 → —
|
MCV30 | — | |
| 83910 — Clock Assy | ||||
| 83910-33090 |
Clock Assy
2001-07 → 2004-06
ended
|
MCV30 | ¥31,600 | |
| 83910-33160 |
Clock Assy
2004-06 → —
|
MCV30 | ¥31,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
