Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

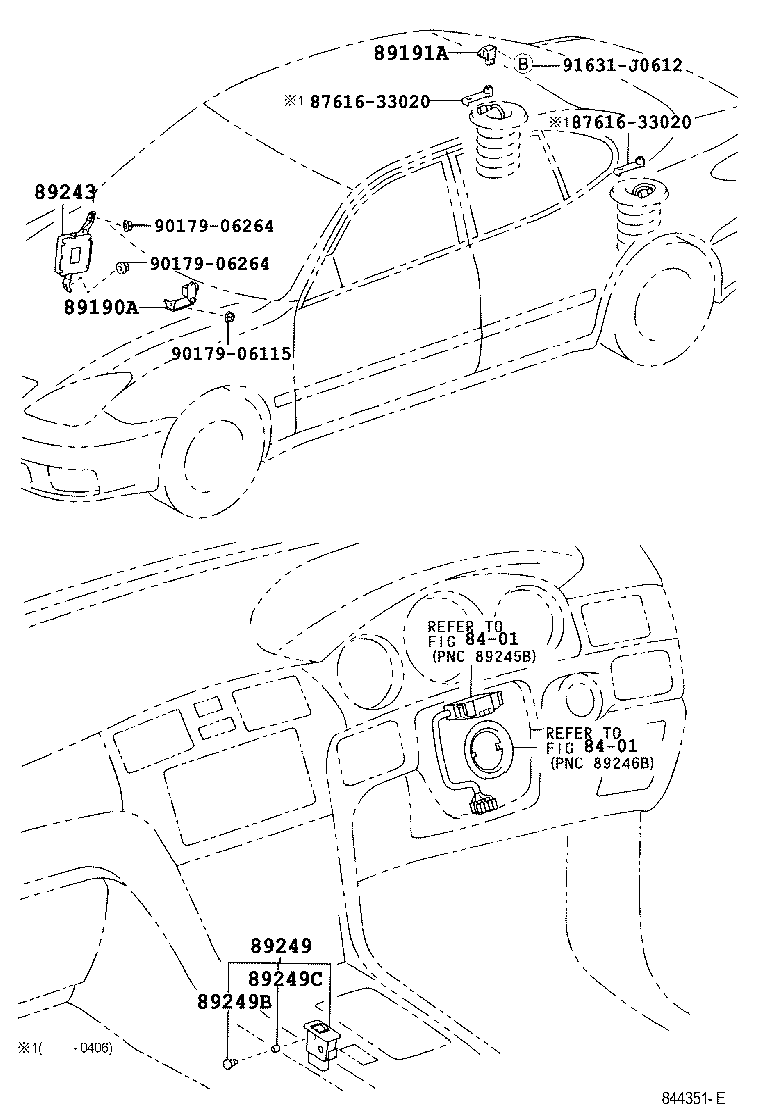

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89190A — Sensor Assy, Acceleration | ||||
| 89190-33030 |
Sensor Assy, Acceleration
2001-07 → 2004-06
ended
|
MCV30 30G | ¥10,200 | |
| 89190-33030 |
Sensor Assy, Acceleration
2004-06 → —
|
MCV30 30G | ¥10,200 | |
| 89191A — Sensor, Acceleration | ||||
| 89191-30020 |
Sensor, Acceleration
2001-07 → 2004-06
ended
|
MCV30 30G | ¥41,100 | |
| 89191-30020 |
Sensor, Acceleration
2004-06 → —
|
MCV30 30G | ¥41,100 | |
| 89243 — Computer, Absorber Control | ||||
| 89243-33090 |
Computer, Absorber Control
2001-07 → 2004-06
ended
|
MCV30 30G | ¥63,200 | |
| 89243-33090 |
Computer, Absorber Control
2004-06 → —
|
MCV30 30G | ¥63,200 | |
| 89249 — Switch, Absorber Control | ||||
| 89249-33020 |
Switch, Absorber Control
2001-07 → 2004-06
ended
|
MCV30 30G | ¥6,500 | |
| 89249-33020 |
Switch, Absorber Control
2004-06 → —
|
MCV30 30G | ¥6,500 | |
| 89249B — Bulb, Absorber Control Switch | ||||
| 84999-10700 note |
Bulb, Absorber Control Switch
2001-07 → 2004-06
ended
|
MCV30 30G | ¥400 | |
| 84999-10700 note |
Bulb, Absorber Control Switch
2004-06 → —
|
MCV30 30G | ¥400 | |
| 89249C — Cap Bulb, Absorber Control Switch | ||||
| 84998-10770 |
Cap Bulb, Absorber Control Switch
2001-07 → 2004-06
ended
|
MCV30 30G | ¥240 | |
| 84998-10770 |
Cap Bulb, Absorber Control Switch
2004-06 → —
|
MCV30 30G | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
