Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

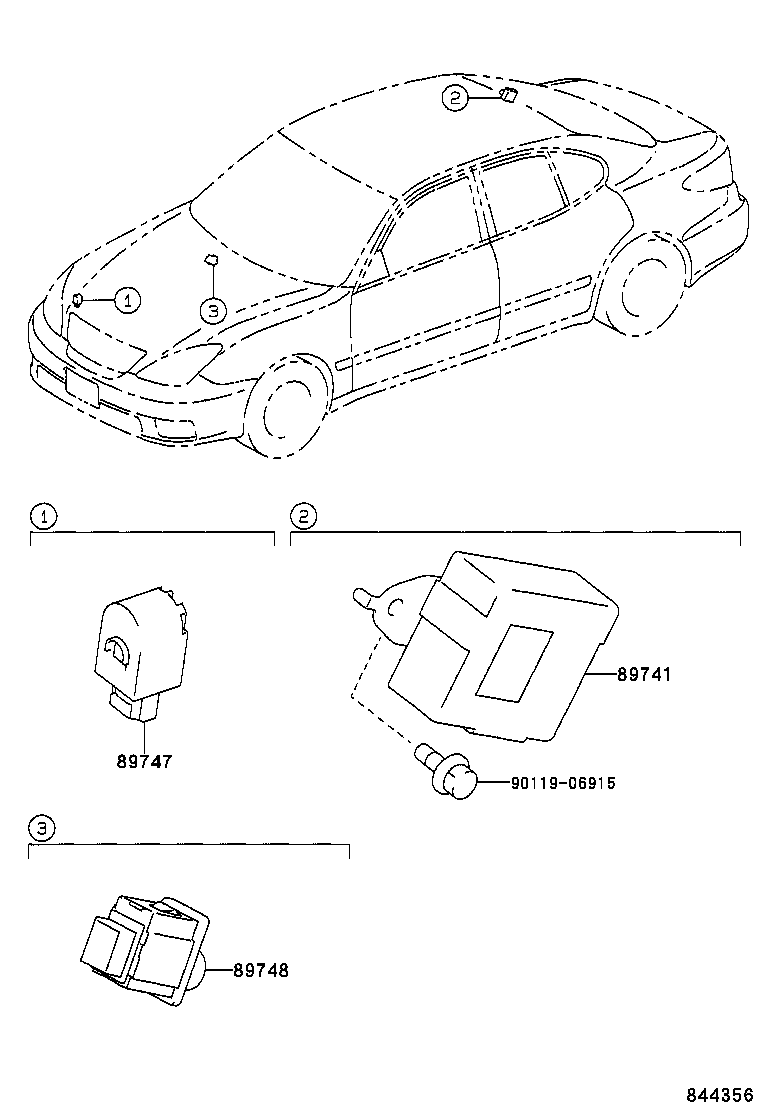

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89741 — Receiver, Door Control | ||||
| 89741-33380 |
Receiver, Door Control
2001-07 → 2004-06
ended
|
MCV30 | ¥34,800 | |
| 89741-33380 |
Receiver, Door Control
2004-06 → 2005-10
ended
|
MCV30 | ¥34,800 | |
| 89741-33380 |
Receiver, Door Control
2005-11 → 2006-03
ended
|
MCV30 | ¥34,800 | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-48020 |
Buzzer, Wireless Door Lock
2003-07 → 2004-06
ended
|
MCV30 | ¥3,830 | |
| 89747-51010 |
Buzzer, Wireless Door Lock
2001-07 → 2003-07
ended
|
MCV30 | ¥2,900 | |
| 89747-48020 |
Buzzer, Wireless Door Lock
2004-06 → —
|
MCV30 | ¥3,830 | |
| 89748 — Controller, Wireless Door Lock Buzzer | ||||
| 89748-33020 |
Controller, Wireless Door Lock Buzzer
2001-07 → 2004-06
ended
|
MCV30 | ¥6,100 | |
| 89748-33020 |
Controller, Wireless Door Lock Buzzer
2004-06 → —
|
MCV30 | ¥6,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
