Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

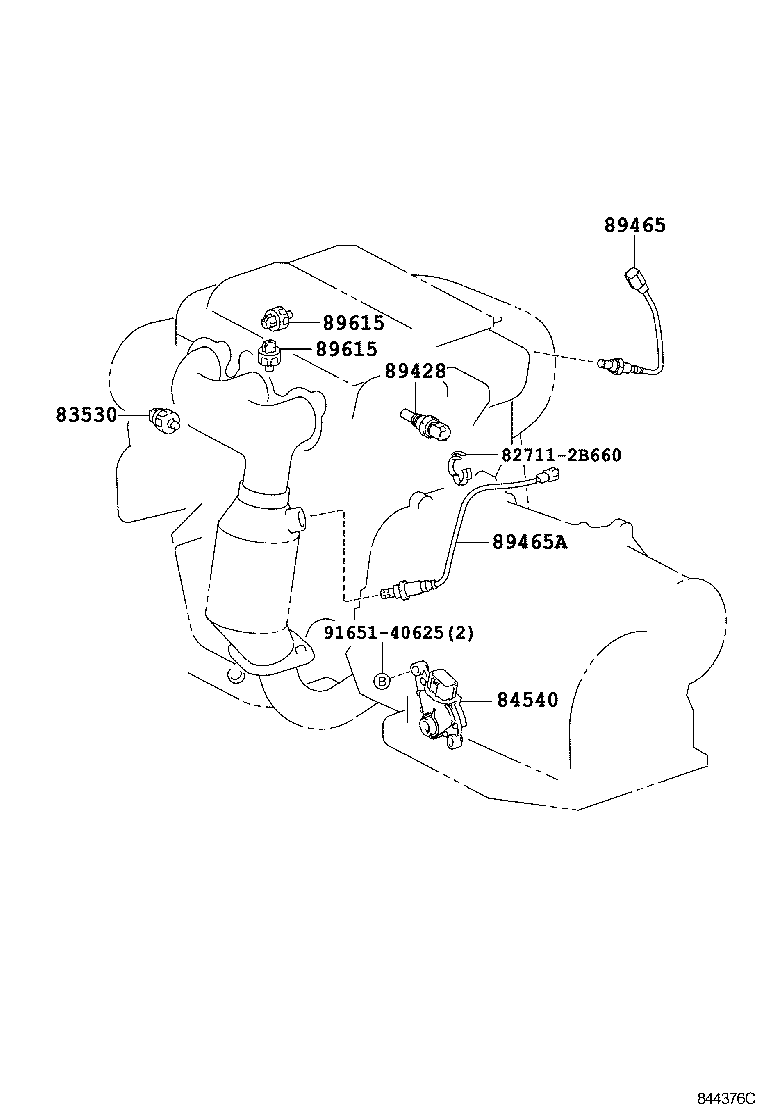

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

17 parts on this figure

Part number	Description	Fitment	Price
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-28020 note	Switch Assy, Oil Pressure (FOR ENGINE) 2001-07 → 2004-06 ended	MCV30	¥1,970
83530-60020 note	Switch Assy, Oil Pressure (FOR ENGINE) 2001-07 → 2004-06 ended	MCV30	¥1,970
83530-28020 note	Switch Assy, Oil Pressure (FOR ENGINE) 2004-06 → —	MCV30	¥1,970
83530-60020 note	Switch Assy, Oil Pressure (FOR ENGINE) 2004-06 → —	MCV30	¥1,970
83530-AA011 note	Switch Assy, Oil Pressure (FOR ENGINE) 2004-06 → —	MCV30	¥1,090
84540 — Switch Assy, Neutral Start
84540-12230	Switch Assy, Neutral Start 2001-07 → 2003-07 ended	MCV30	¥12,100
84540-48010	Switch Assy, Neutral Start 2003-07 → 2004-06 ended	MCV30	¥12,100
84540-48010	Switch Assy, Neutral Start 2004-06 → 2006-03 ended	MCV30	¥12,100
89428 — Switch, Temperature Detect, NO.2
89428-41010	Switch, Temperature Detect, NO.2 2001-07 → 2004-06 ended	MCV30	¥5,200
89428-41010	Switch, Temperature Detect, NO.2 2004-06 → —	MCV30	¥5,200
89465 — Sensor, Oxygen
89465-33280	Sensor, Oxygen 2001-07 → 2004-06 ended	MCV30	¥10,700
89465-33280	Sensor, Oxygen 2004-06 → 2006-03 ended	MCV30	¥10,700
89465A — Sensor, Oxygen NO.2
89465-33270	Sensor, Oxygen NO.2 2001-07 → 2003-07 ended	MCV30	¥10,700
89465-33390	Sensor, Oxygen NO.2 2003-07 → 2004-06 ended	MCV30	¥10,700
89465-33390	Sensor, Oxygen NO.2 2004-06 → 2006-03 ended	MCV30	¥10,700
89615 — Sensor, Knock Control
89615-12090	Sensor, Knock Control 2001-07 → 2004-06 ended	MCV30	¥16,900
89615-12090	Sensor, Knock Control 2004-06 → —	MCV30	¥16,900

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
