Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

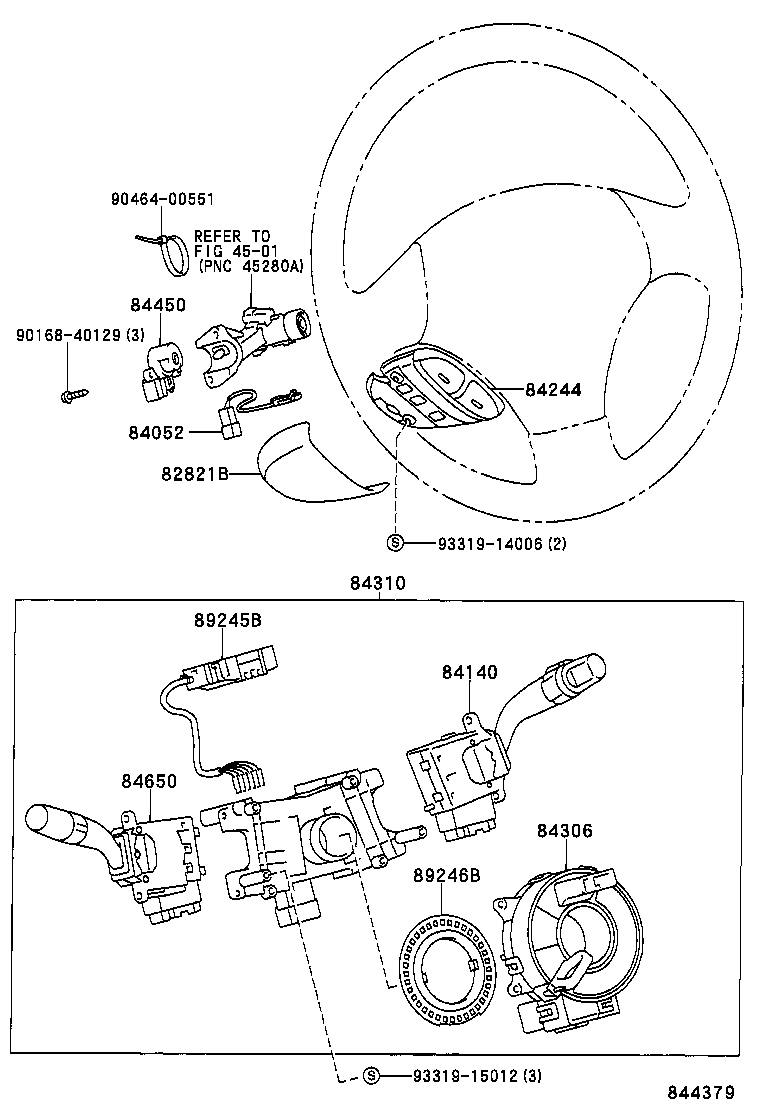

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82821B — Cover, Connector | ||||
| 82821-44020 |
Cover, Connector
2001-07 → 2004-06
ended
|
MCV30 | ¥670 | |
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-33040 |
Switch Assy, Un-lock Warning
2001-07 → 2004-06
ended
|
MCV30 | ¥1,720 | |
| 84052-33040 |
Switch Assy, Un-lock Warning
2004-06 → 2006-03
ended
|
MCV30 | ¥1,720 | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-26160 |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
MCV30 | ¥9,400 | |
| 84140-33130 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
MCV30 | ¥15,300 | |
| 84140-26160 |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
MCV30 | ¥9,400 | |
| 84140-33130 note |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
MCV30 | ¥15,300 | |
| 84244 — Switch, Steering Pad | ||||
| 84244-33050 |
Switch, Steering Pad
2001-07 → 2004-06
ended
|
MCV30 | ¥9,000 | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-33090 |
Cable Sub-assy, Spiral
2001-07 → 2003-05
ended
|
MCV30 | ¥20,900 | |
| 84306-60080 |
Cable Sub-assy, Spiral
2003-05 → 2004-06
ended
|
MCV30 | ¥14,300 | |
| 84306-60080 |
Cable Sub-assy, Spiral
2004-06 → —
|
MCV30 | ¥14,300 | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-3T010 note |
Switch Assy, Turn Signal
2001-07 → 2004-06
ended
|
MCV30 30G | ¥45,700 | |
| 84310-3T010 note |
Switch Assy, Turn Signal
2002-04 → 2004-06
ended
|
MCV30 30X | ¥45,700 | |
| 84310-3T030 note |
Switch Assy, Turn Signal
2002-04 → 2004-06
ended
|
MCV30 30X | ¥44,800 | |
| 84310-3T030 |
Switch Assy, Turn Signal
2001-07 → 2004-06
ended
|
MCV30 30G | ¥44,800 | |
| 84310-3T120 note |
Switch Assy, Turn Signal
2001-07 → 2004-06
ended
|
MCV30 30X | ¥42,100 | |
| 84310-3T130 |
Switch Assy, Turn Signal
2001-07 → 2004-06
ended
|
MCV30 30X | ¥41,300 | |
| 84310-3T010 note |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30G | ¥45,700 | |
| 84310-3T010 note |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30X | ¥45,700 | |
| 84310-3T030 |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30G | ¥44,800 | |
| 84310-3T030 note |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30X | ¥44,800 | |
| 84310-3T120 note |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30X | ¥42,100 | |
| 84310-3T130 |
Switch Assy, Turn Signal
2004-06 → —
|
MCV30 30X | ¥41,300 | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-12200 |
Switch Assy, Ignition OR Starter
2001-07 → 2004-06
ended
|
MCV30 | ¥3,240 | |
| 84450-12200 |
Switch Assy, Ignition OR Starter
2004-06 → 2006-03
ended
|
MCV30 | ¥3,240 | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-33400 |
Switch Assy, Windshield Wiper
2001-07 → 2004-06
ended
|
MCV30 | ¥10,300 | |
| 84652-33400 |
Switch Assy, Windshield Wiper
2004-06 → —
|
MCV30 | ¥10,300 | |
| 89245B — Sensor, Steering | ||||
| 89245-33010 |
Sensor, Steering
2001-07 → 2004-06
ended
|
MCV30 30G | ¥23,300 | |
| 89245-33010 |
Sensor, Steering
2002-04 → 2004-06
ended
|
MCV30 30X | ¥23,300 | |
| 89245-33010 |
Sensor, Steering
2004-06 → 2006-03
ended
|
MCV30 | ¥23,300 | |
| 89246B — Disc, Sensor Steering | ||||
| 89246-22020 |
Disc, Sensor Steering
2001-07 → 2004-06
ended
|
MCV30 30G | ¥6,000 | |
| 89246-22020 |
Disc, Sensor Steering
2002-04 → 2004-06
ended
|
MCV30 30X | ¥6,000 | |
| 89246-22020 |
Disc, Sensor Steering
2004-06 → 2006-03
ended
|
MCV30 | ¥6,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
